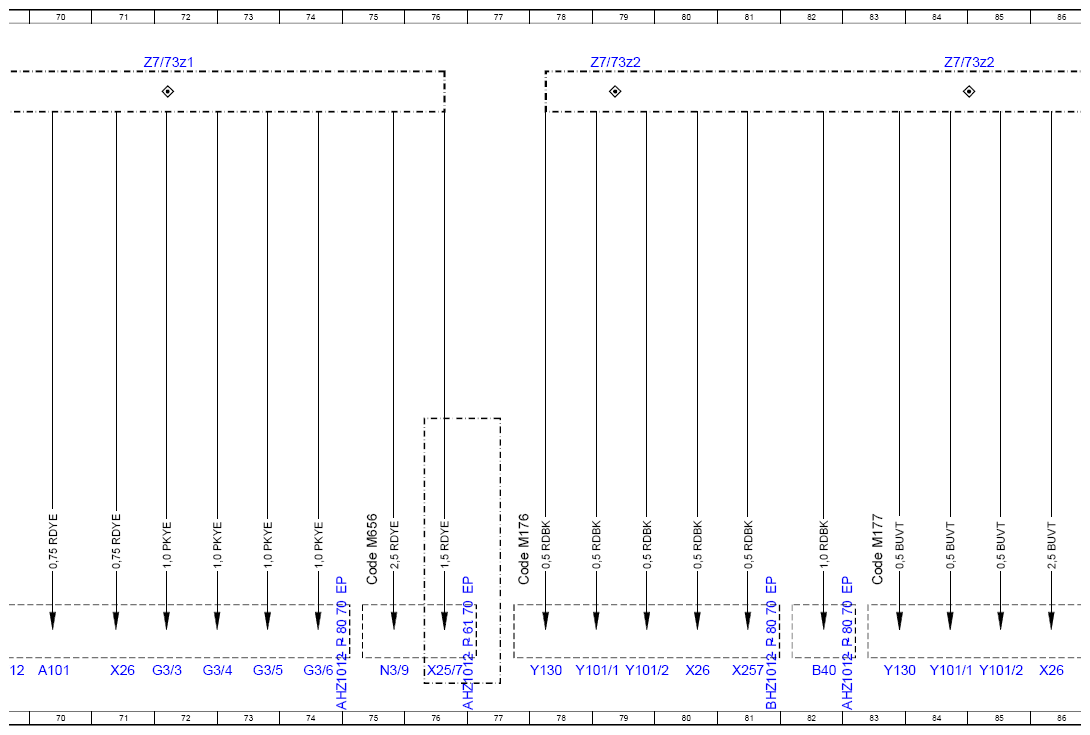

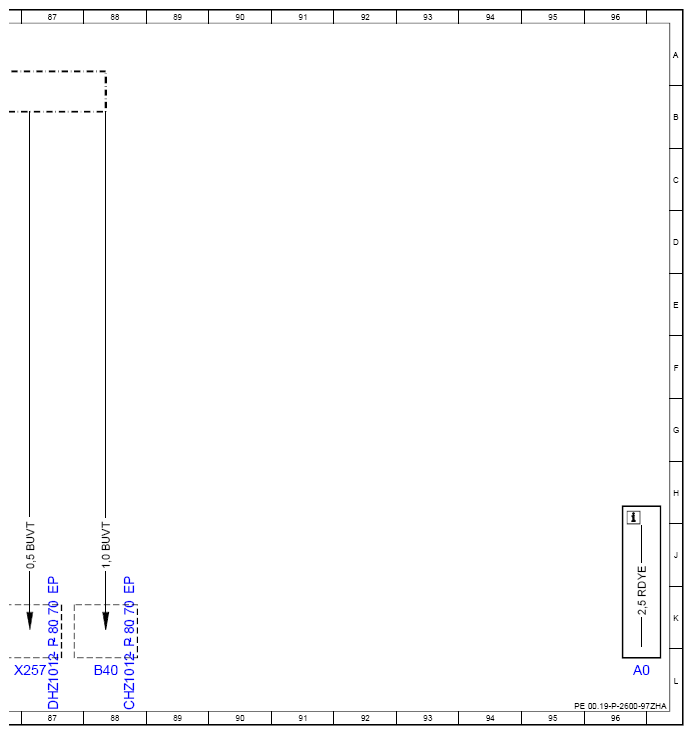

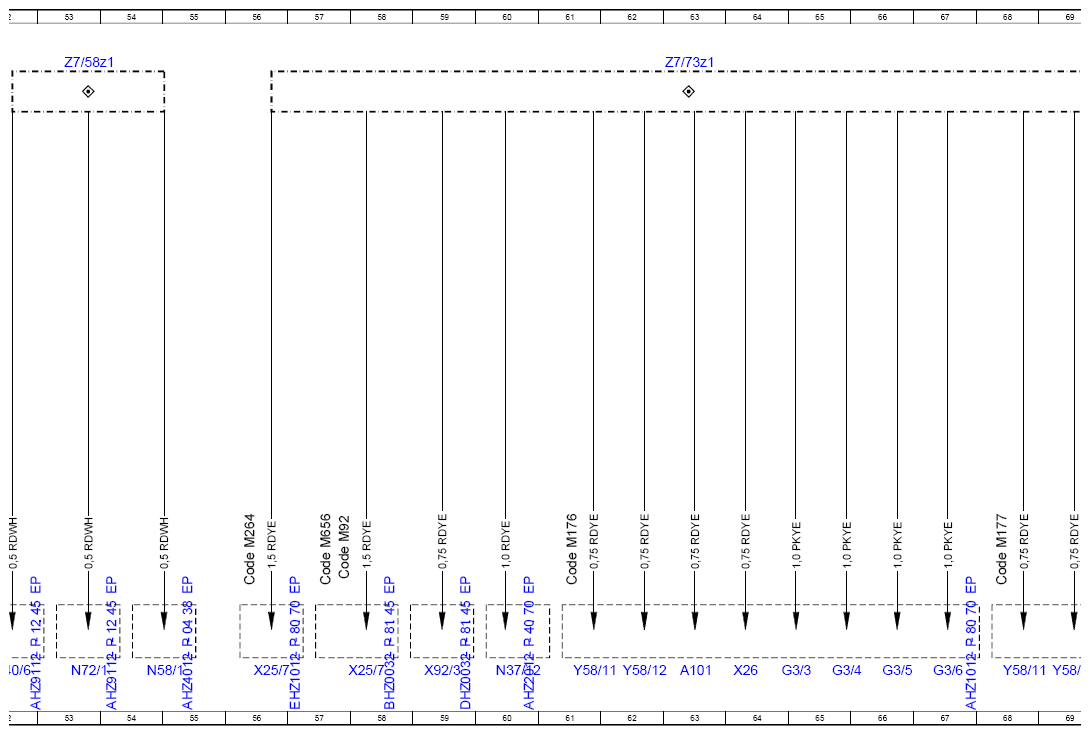

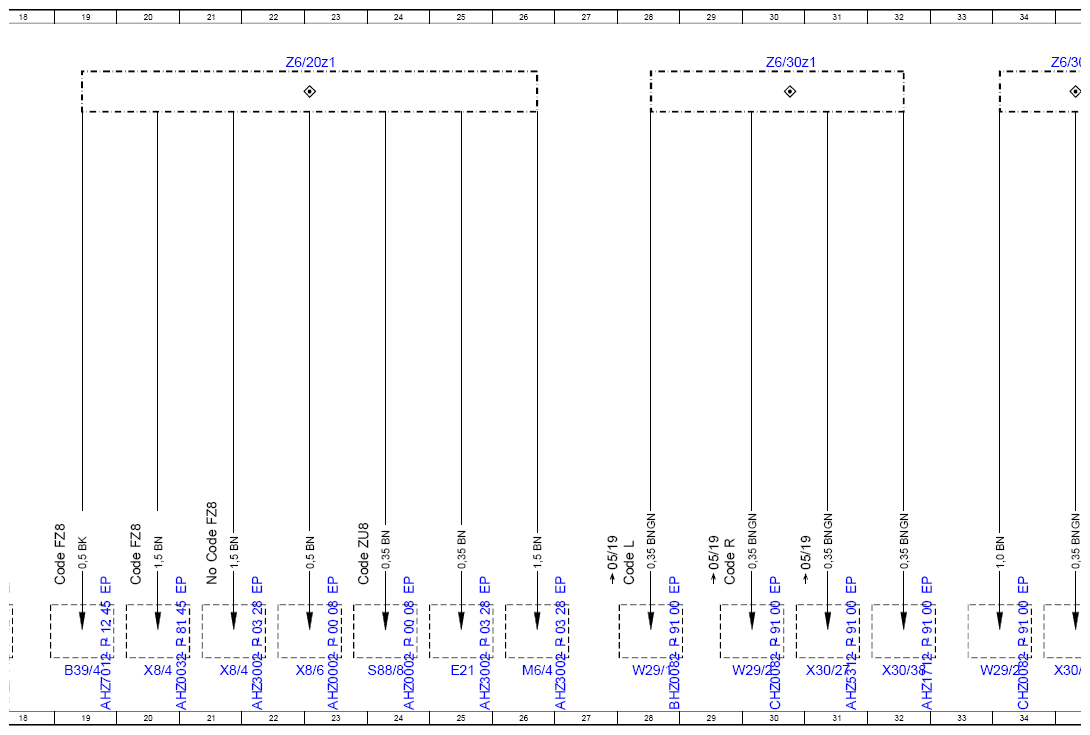

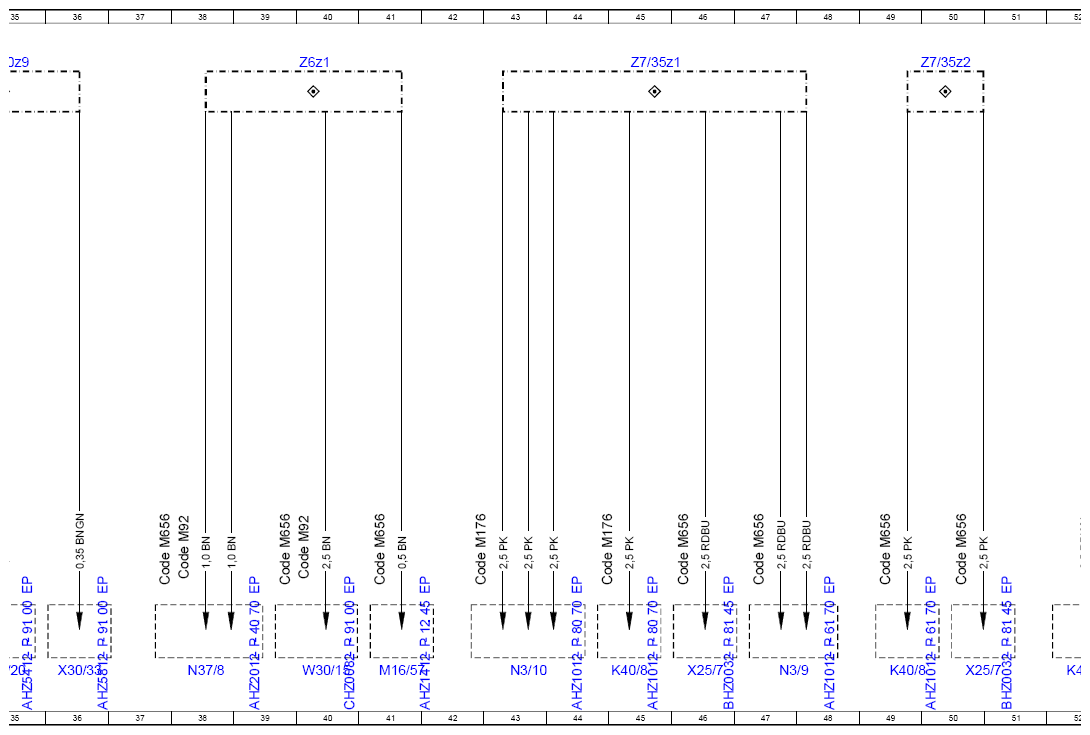

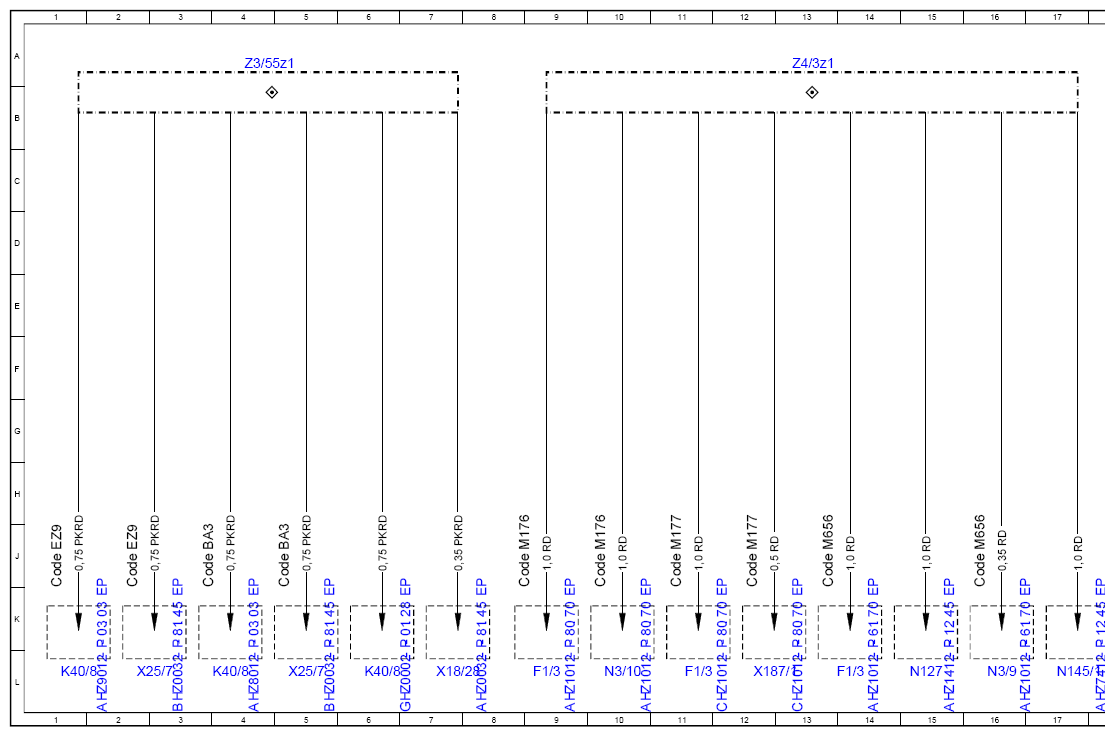

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97ZHA
Model 463 (except 463.342)
as of model year 2019
Z3/55z1, Z4/3z1, Z6/20z1, Z6/30z1, Z6/30z9, Z6z1, Z7/35z1, Z7/35z2, Z7/58z1, Z7/73z1, Z7/73z2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A101 | Fuel tank diagnostic module | 70L |
| A101 | Fuel tank diagnostic module | 63L |
| B39/4 | Rear window glass breakage sensor | 19L |
| B40 | Oil sensor (oil level, temperature and quality) | 82L |
| B40 | Oil sensor (oil level, temperature and quality) | 88L |
| Code BA3 | BAS PLUS Brake Assist System | 5J |
| Code BA3 | BAS PLUS Brake Assist System | 4J |
| Code EZ9 | Active Distance Assist DISTRONIC | 1J |
| Code EZ9 | Active Distance Assist DISTRONIC | 2J |
| Code FZ8 | Alarm system | 19J |
| Code FZ8 | Alarm system | 20J |
| Code FZ8 | Alarm system | 21J |
| Code L | LEFT-HAND DRIVE | 28J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 9J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 10J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 45J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 43J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 61J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 77J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 11J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 12J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 68J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 83J |
| Code M264 | R4 spark-ignition engine M264 | 56J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 47J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 13J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 16J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 39J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 37J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 46J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 41J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 49J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 50J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 57J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 75J |
| Code M92 | Exhaust treatment with EURO6 technology | 38J |
| Code M92 | Exhaust treatment with EURO6 technology | 40J |
| Code M92 | Exhaust treatment with EURO6 technology | 57J |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code ZU8 | USA national version | 24J |
| E21 | Center stop lamp | 25L |
| F1/3 | Right A-pillar fuse box | 9L |
| F1/3 | Right A-pillar fuse box | 11L |
| F1/3 | Right A-pillar fuse box | 14L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 65L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 72L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 65L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 72L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 66L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 73L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 67L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 74L |
| K40/6 | Left fuse and relay module | 52L |
| K40/8 | Engine fuse and relay module | 1L |
| K40/8 | Engine fuse and relay module | 6L |
| K40/8 | Engine fuse and relay module | 4L |
| K40/8 | Engine fuse and relay module | 45L |
| K40/8 | Engine fuse and relay module | 49L |
| M16/57 | Exhaust flap controller | 41L |
| M6/4 | Rear-end door wiper motor | 26L |
| N127 | Drivetrain control unit | 15L |
| N145/1 | Drive unit control unit | 17L |
| N3/10 | ME-SFI [ME] control unit | 10L |
| N3/10 | ME-SFI [ME] control unit | 43L |
| N3/9 | CDI control unit | 16L |
| N3/9 | CDI control unit | 47L |
| N3/9 | CDI control unit | 75L |
| N37/12 | Control unit of NOx sensor upstream of diesel oxidation catalytic converter | 60L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 38L |
| N58/1 | Air conditioning control panel | 54L |
| N72/1 | Upper control panel control unit | 53L |
| S88/8 | Rear-end door external operation switch | 24L |
| W29/1 | Left A-pillar ground point | 28L |
| W29/2 | Right A-pillar ground point | 30L |
| W29/2 | Right A-pillar ground point | 33L |
| W30/15 | Left front frame ground point | 40L |
| X18/28 | Driver side cockpit/engine compartment electrical connector | 7L |
| X187/1 | Combustion engine electrical connector 1 | 12L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 2L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 5L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 46L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 50L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 56L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 58L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 76L |
| X257 | Cooling system electrical connector | 81L |
| X257 | Cooling system electrical connector | 87L |
| X26 | Engine/engine compartment electrical connector | 64L |
| X26 | Engine/engine compartment electrical connector | 71L |
| X26 | Engine/engine compartment electrical connector | 80L |
| X26 | Engine/engine compartment electrical connector | 86L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 35L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 31L |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 36L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 32L |
| X8/4 | Rear-end door electrical connector | 20L |
| X8/4 | Rear-end door electrical connector | 21L |
| X8/6 | Rear-end door electrical connector | 22L |
| X92/3 | Vehicle frame electrical connector | 59L |
| Y101/1 | Left bypass air switchover valve | 84L |
| Y101/1 | Left bypass air switchover valve | 78L |
| Y101/2 | Right bypass air switchover valve | 85L |
| Y101/2 | Right bypass air switchover valve | 79L |
| Y130 | Engine oil pump valve | 83L |
| Y130 | Engine oil pump valve | 78L |
| Y58/11 | Left purge control valve | 61L |
| Y58/11 | Left purge control valve | 68L |
| Y58/12 | Right purge control valve | 62L |
| Y58/12 | Right purge control valve | 69L |
| Z3/55z1 | Terminal 15 connector sleeve | 4A |
| Z4/3z1 | Terminal 30t connector sleeve | 13A |
| Z6/20z1 | Ground connection connector sleeve | 22A |
| Z6/30z1 | Ground connection connector sleeve | 30A |
| Z6/30z9 | Ground connection connector sleeve | 35A |
| Z6z1 | Circuit 31 connector sleeve | 40A |
| Z7/35z1 | Circuit 87M connector sleeve | 45A |
| Z7/35z2 | Circuit 87M connector sleeve | 50A |
| Z7/58z1 | Terminal 30t connector sleeve | 53A |
| Z7/73z1 | Circuit 87M connector sleeve | 63A |
| Z7/73z1 | Circuit 87M connector sleeve | 72A |
| Z7/73z2 | Circuit 87M connector sleeve | 84A |
| Z7/73z2 | Circuit 87M connector sleeve | 79A |
