Wiring Diagram Of Interior CAN - PE00.19-P-2185-97ZHA
Model 463 (except 463.342)
as of model year 2019
Potential distributor X30/32, potential distributor X30/33
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A98/1 | Sliding roof control module | 24L |

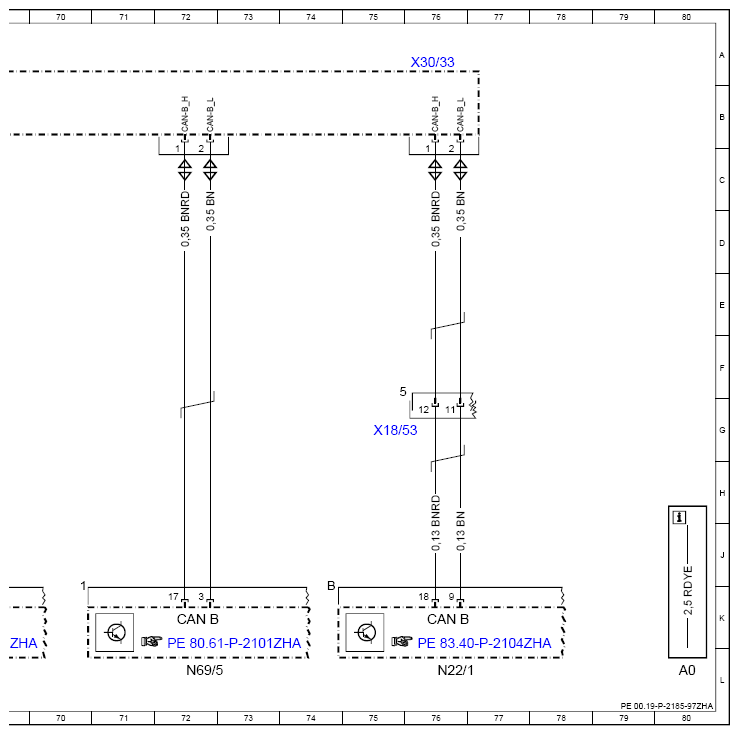

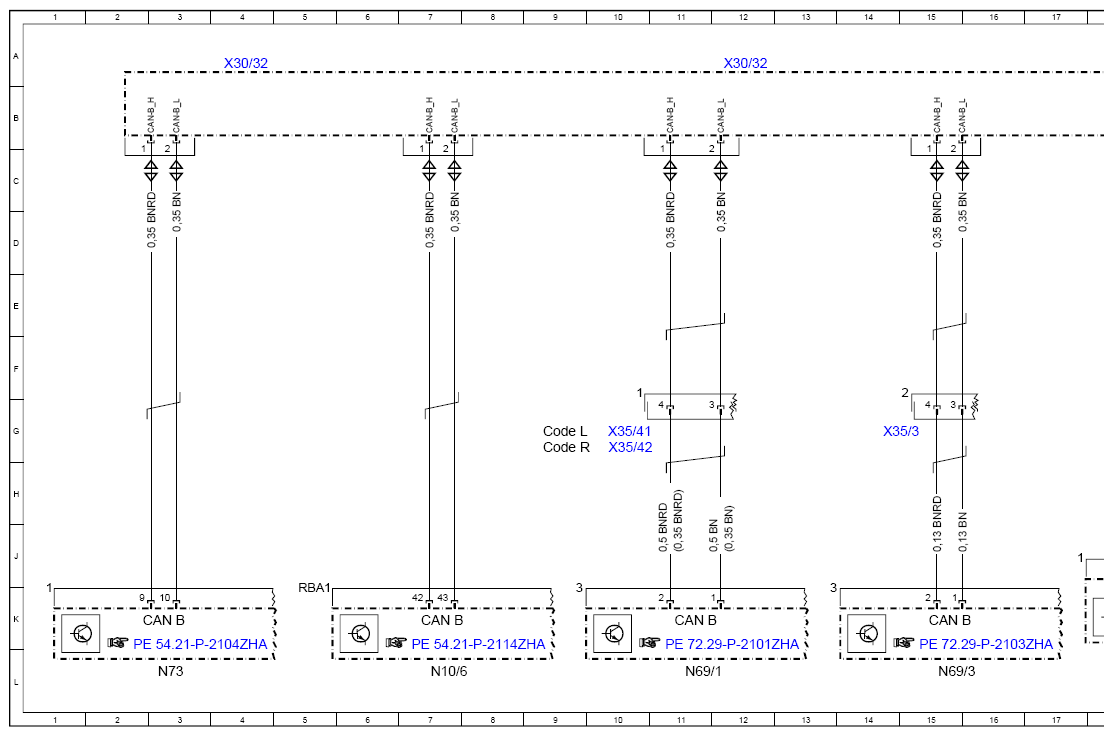

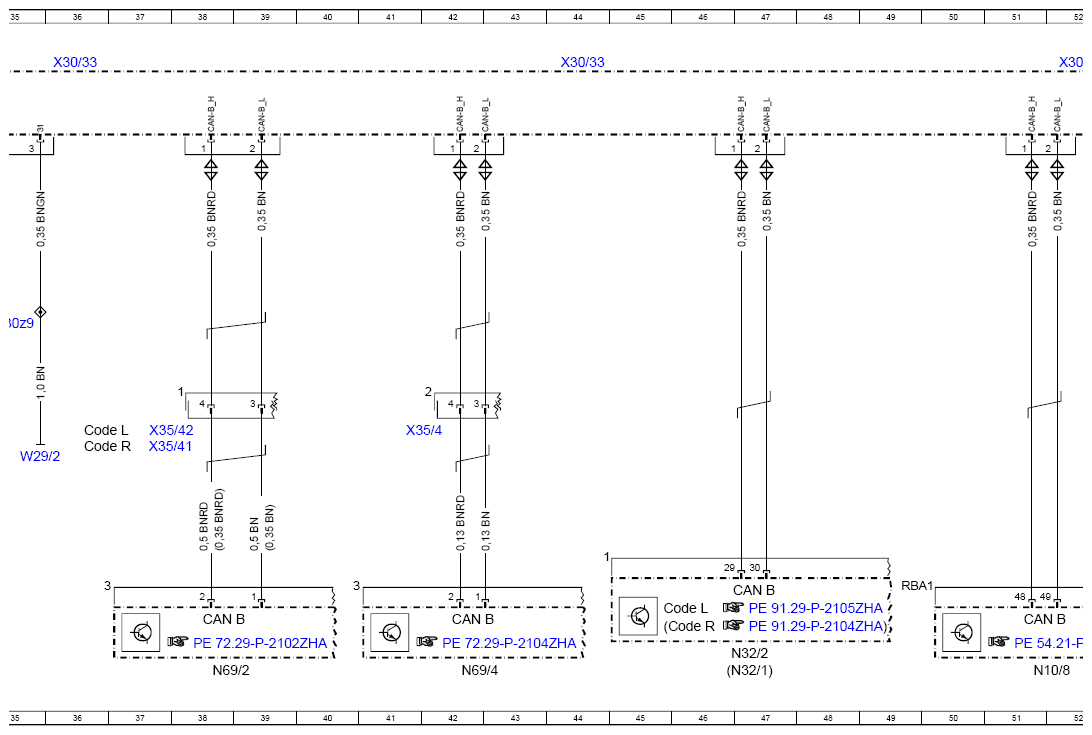

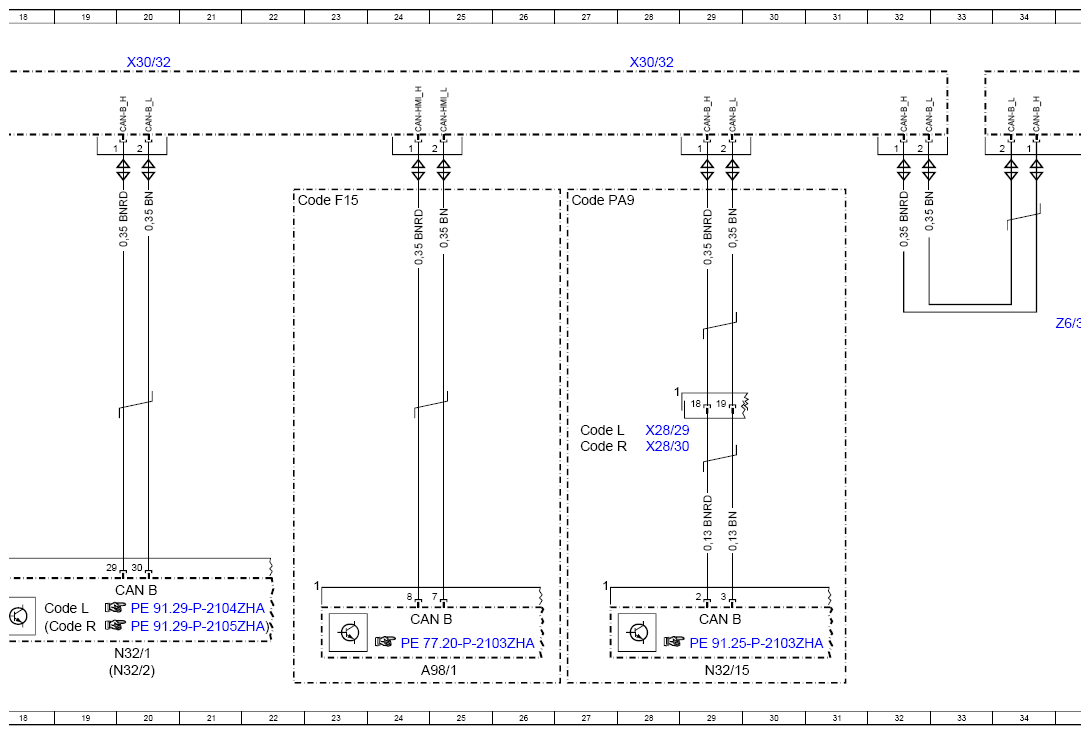

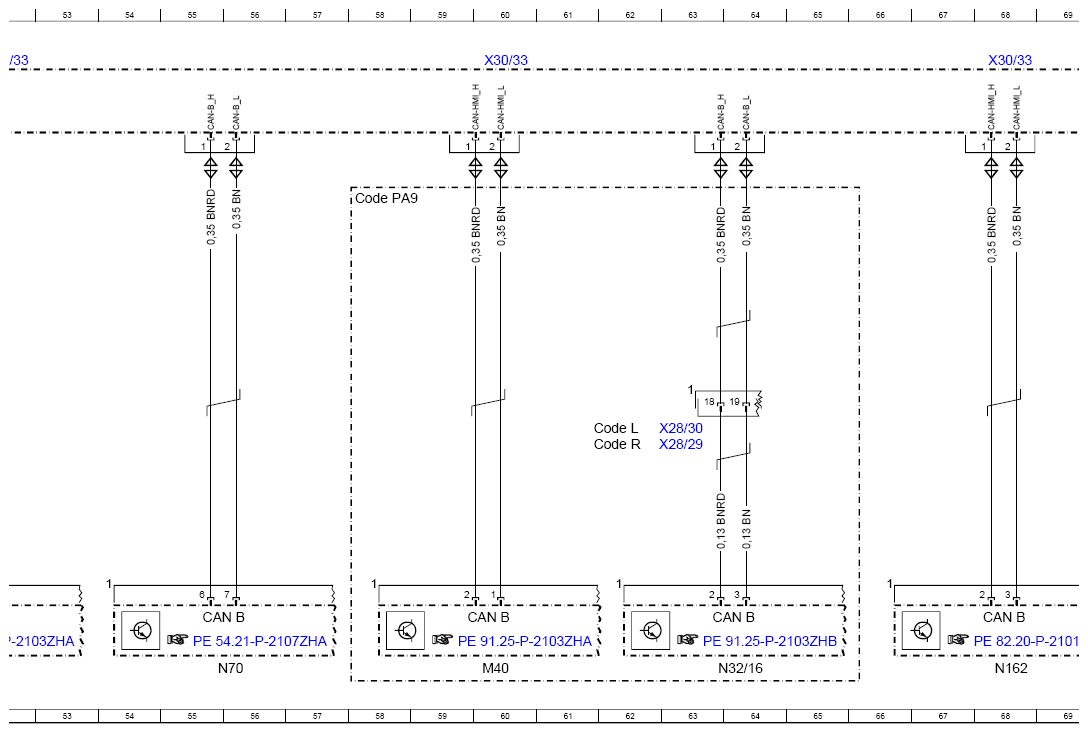

| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 7K |
| CAN B | Interior CAN | 11K |
| CAN B | Interior CAN | 24K |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 38K |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 42K |
| CAN B | Interior CAN | 51K |
| CAN B | Interior CAN | 60K |
| CAN B | Interior CAN | 55K |
| CAN B | Interior CAN | 64K |
| CAN B | Interior CAN | 47K |
| CAN B | Interior CAN | 72K |
| CAN B | Interior CAN | 68K |
| CAN B | Interior CAN | 76K |
| Code F15 | Glass electric sliding roof | 22C |
| Code L | LEFT-HAND DRIVE | 9G |
| Code L | LEFT-HAND DRIVE | 27G |
| Code L | LEFT-HAND DRIVE | 36G |
| Code L | LEFT-HAND DRIVE | 61G |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 27C |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 58C |
| Code R | RIGHT-HAND DRIVE | 9G |
| Code R | RIGHT-HAND DRIVE | 18K |
| Code R | RIGHT-HAND DRIVE | 27G |
| Code R | RIGHT-HAND DRIVE | 36G |
| Code R | RIGHT-HAND DRIVE | 45K |
| Code R | RIGHT-HAND DRIVE | 61G |
| M40 | Multicontour seat pneumatic pump | 60L |
| N10/6 | Front SAM control unit | 7L |
| N10/8 | Rear SAM control unit | 51L |
| N162 | Ambiance illumination control unit | 68L |
| N22/1 | Climate control unit | 76L |
| N32/1 | Driver seat control unit | 20L |
| N32/1 | Driver seat control unit | 47L |
| N32/15 | Left front multicontour seat control unit | 29L |
| N32/16 | Right front multicontour seat control unit | 64L |
| N32/2 | Front passenger seat control unit | 20L |
| N32/2 | Front passenger seat control unit | 47L |
| N69/1 | Left front door control unit | 11L |
| N69/2 | Right front door control unit | 38L |
| N69/3 | Left rear door control unit | 15L |
| N69/4 | Right rear door control unit | 42L |
| N69/5 | KEYLESS-GO control unit | 72L |
| N70 | Overhead control panel control unit | 56L |
| N73 | Electronic ignition switch control unit | 3L |
| W29/2 | Right A-pillar ground point | 35H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 75G |
| X28/29 | Frame floor assembly/driver seat electrical connector | 28G |
| X28/29 | Frame floor assembly/driver seat electrical connector | 63G |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 28G |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 63G |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 4A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 12A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 28A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 20A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 36A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 44A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 52A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 60A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 68A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 76A |
| X35/3 | Left rear door electrical connector | 15G |
| X35/4 | Right rear door electrical connector | 42G |
| X35/41 | Driver door electrical connector | 10G |
| X35/41 | Driver door electrical connector | 37G |
| X35/42 | Front passenger door electrical connector | 10G |
| X35/42 | Front passenger door electrical connector | 38G |
| Z6/30z9 | Ground connection connector sleeve | 35E |
