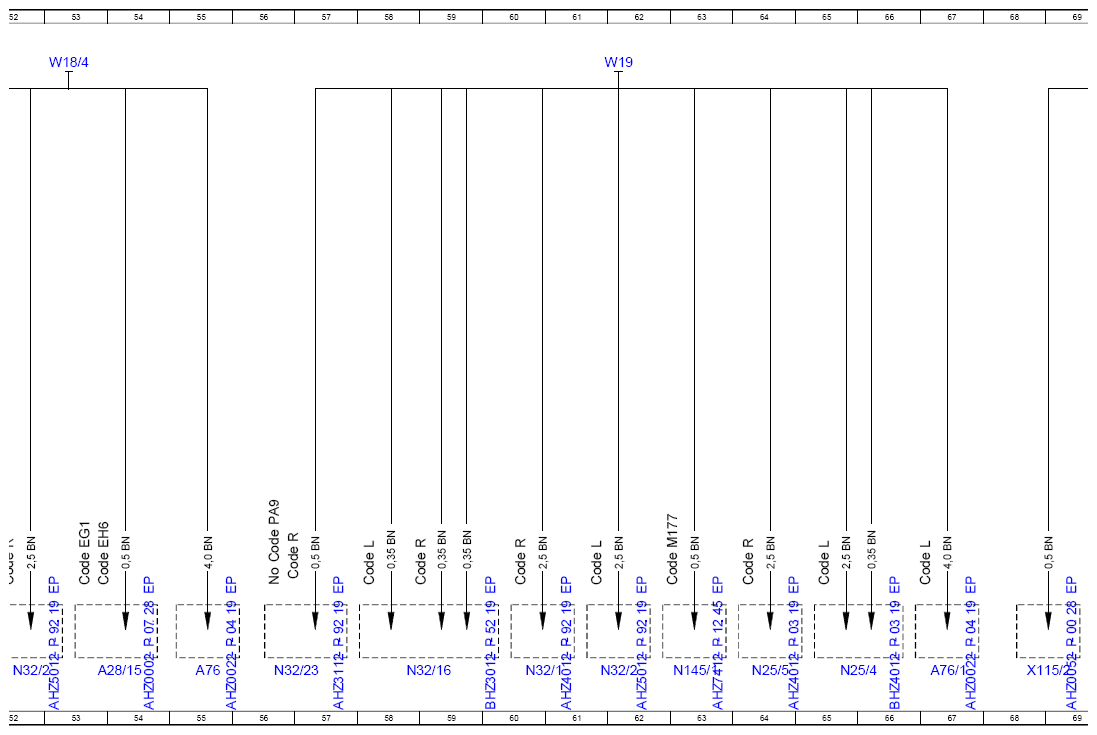

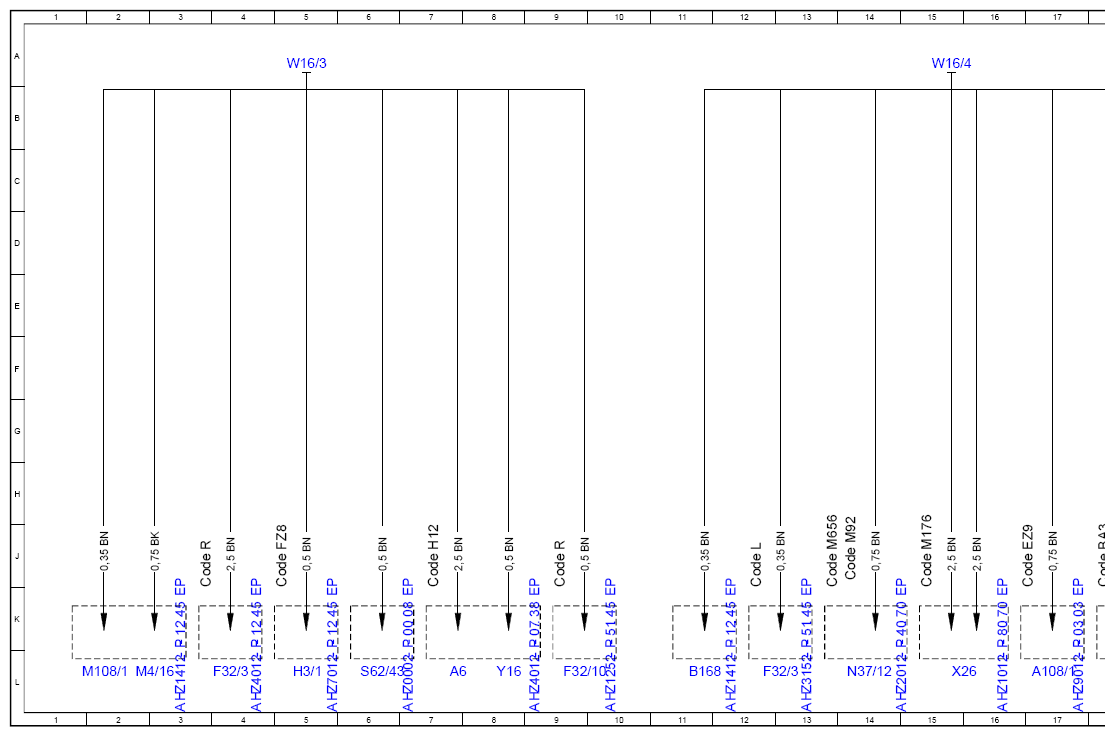

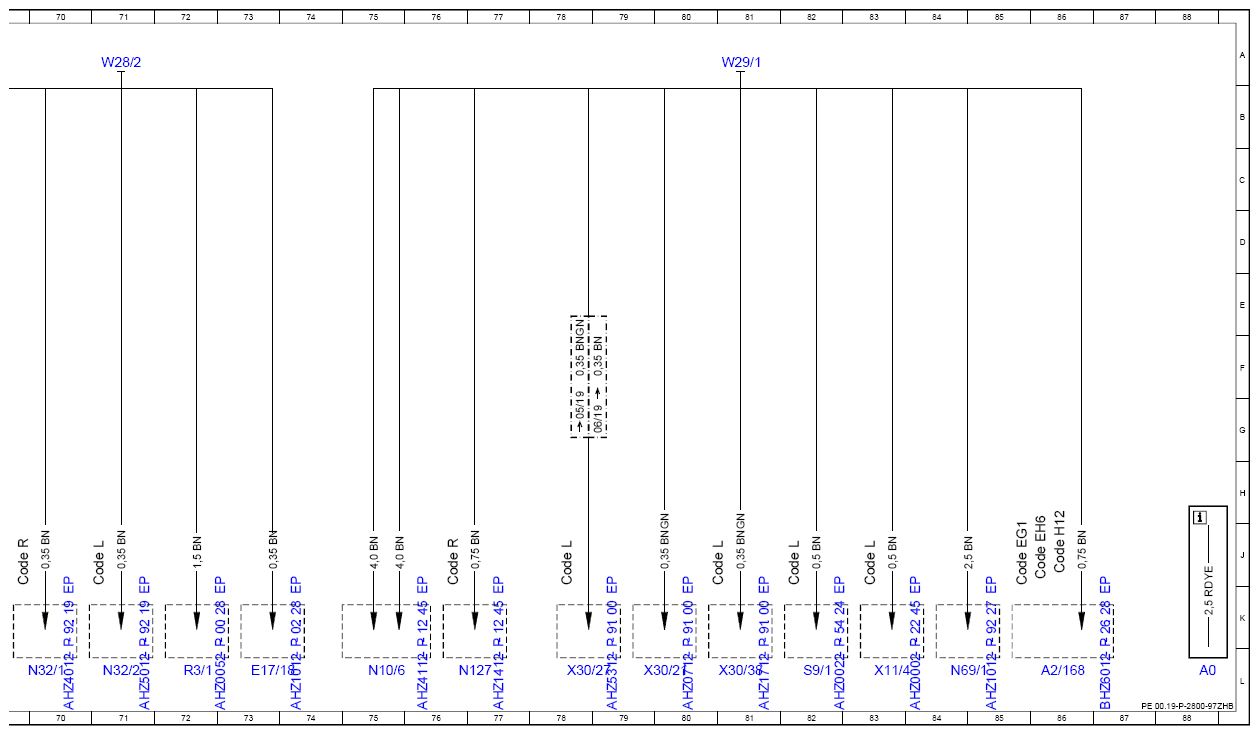

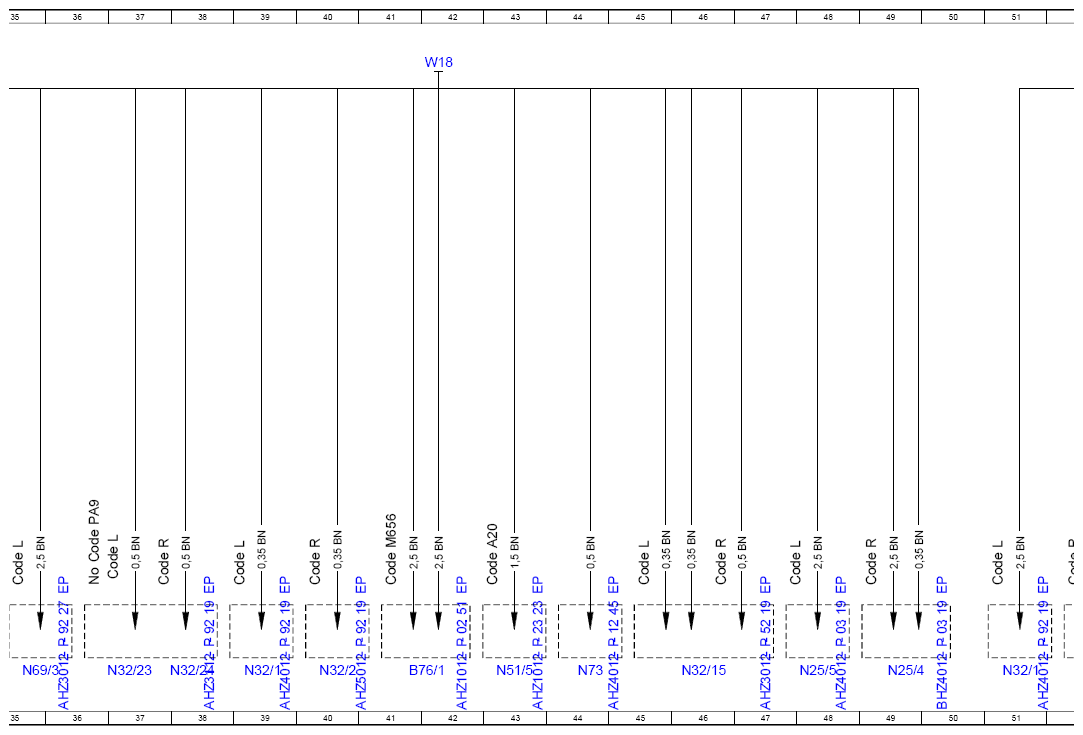

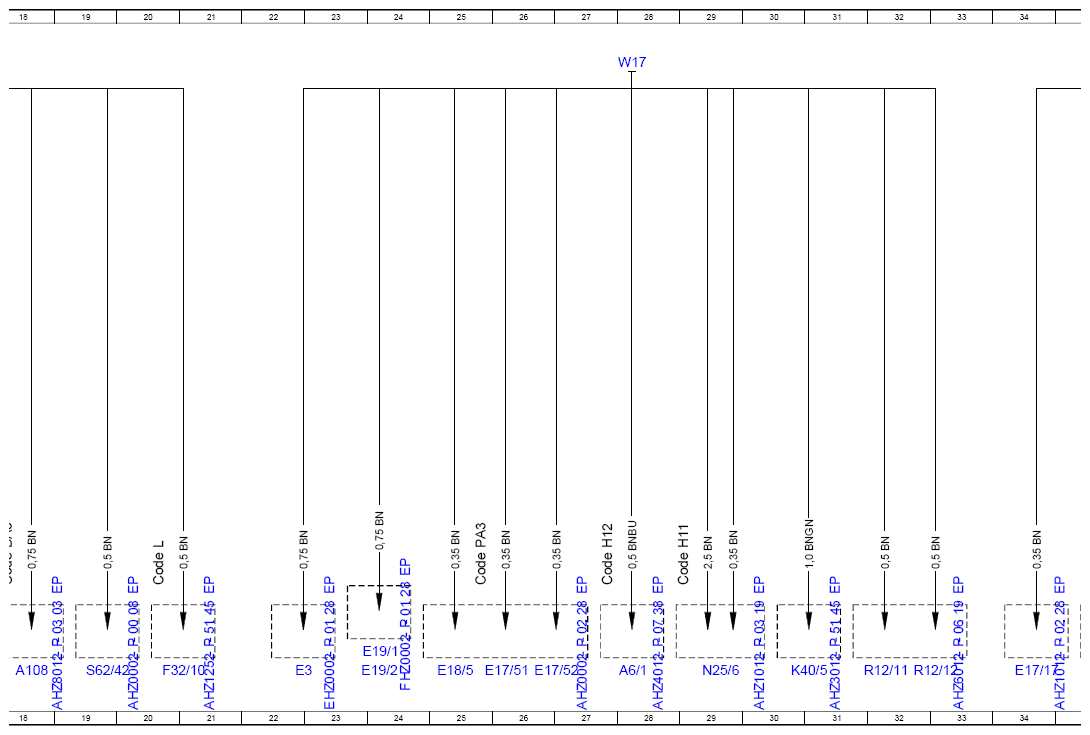

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97ZHB
Model 463 (except 463.342)
as of model year 2019
W16/3, W16/4, W17, W18, W18/4, W19, W28/1, W29/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A108 | Active Brake Assist controller unit | 18L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 17L |
| A2/168 | Telephone antenna changeover switch | 86L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 54L |
| A6 | Stationary heater unit | 7L |
| A6/1 | Stationary heater radio remote control receiver | 28L |
| A76 | Left front reversible emergency tensioning retractor | 55L |
| A76/1 | Right front reversible emergency tensioning retractor | 67L |
| B168 | Fording depth sensor | 11L |
| B76/1 | Condensation sensor for fuel filter with heating element | 41L |
| Code A20 | Adjustment damping | 43J |
| Code BA3 | BAS PLUS Brake Assist System | 18J |
| Code EG1 | Car telephony | 53J |
| Code EG1 | Car telephony | 85J |
| Code EH6 | Multifunction telephony | 54J |
| Code EH6 | Multifunction telephony | 86J |
| Code EZ9 | Active Distance Assist DISTRONIC | 17J |
| Code FZ8 | Alarm system | 5J |
| Code H11 | Heating for rear bench seat | 29J |
| Code H12 | Stationary heater | 7J |
| Code H12 | Stationary heater | 27J |
| Code H12 | Stationary heater | 86J |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 20J |
| Code L | LEFT-HAND DRIVE | 35J |
| Code L | LEFT-HAND DRIVE | 37J |
| Code L | LEFT-HAND DRIVE | 39J |
| Code L | LEFT-HAND DRIVE | 48J |
| Code L | LEFT-HAND DRIVE | 51J |
| Code L | LEFT-HAND DRIVE | 45J |
| Code L | LEFT-HAND DRIVE | 58J |
| Code L | LEFT-HAND DRIVE | 61J |
| Code L | LEFT-HAND DRIVE | 65J |
| Code L | LEFT-HAND DRIVE | 71J |
| Code L | LEFT-HAND DRIVE | 67J |
| Code L | LEFT-HAND DRIVE | 78J |
| Code L | LEFT-HAND DRIVE | 83J |
| Code L | LEFT-HAND DRIVE | 82J |
| Code L | LEFT-HAND DRIVE | 81J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 15J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 63J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 13J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 41J |
| Code M92 | Exhaust treatment with EURO6 technology | 14J |
| Code PA3 | Exterior stainless steel package | 25J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 36J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 56J |
| Code R | RIGHT-HAND DRIVE | 9J |
| Code R | RIGHT-HAND DRIVE | 3J |
| Code R | RIGHT-HAND DRIVE | 37J |
| Code R | RIGHT-HAND DRIVE | 40J |
| Code R | RIGHT-HAND DRIVE | 52J |
| Code R | RIGHT-HAND DRIVE | 49J |
| Code R | RIGHT-HAND DRIVE | 46J |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 59J |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 60J |
| Code R | RIGHT-HAND DRIVE | 69J |
| Code R | RIGHT-HAND DRIVE | 76J |
| E17/17 | Left rear footwell lamp | 34L |
| E17/18 | Right rear footwell lamp | 73L |
| E17/51 | Left rear illuminated door sill molding | 26L |
| E17/52 | Right rear illuminated door sill molding | 26L |
| E18/5 | Right load compartment lamp | 25L |
| E19/1 | Left license plate lamp | 24L |
| E19/2 | Right license plate lamp | 24L |
| E3 | Left rear lamp unit | 22L |
| F32/10 | Starter battery prefuse box | 9L |
| F32/10 | Starter battery prefuse box | 20L |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3 | Engine compartment prefuse box | 12L |
| H3/1 | Alarm siren | 5L |
| K40/5 | Rear fuse and relay module | 30L |
| M108/1 | Engine cooling system air flap left actuator motor | 2L |
| M4/16 | Engine oil cooler fan motor | 2L |
| N10/6 | Front SAM control unit | 75L |
| N127 | Drivetrain control unit | 77L |
| N145/1 | Drive unit control unit | 63L |
| N25/4 | Front passenger seat heater control unit | 49L |
| N25/4 | Front passenger seat heater control unit | 65L |
| N25/5 | Driver seat heater control unit | 48L |
| N25/5 | Driver seat heater control unit | 64L |
| N25/6 | Rear seat heaters control unit | 29L |
| N32/1 | Driver seat control unit | 39L |
| N32/1 | Driver seat control unit | 51L |
| N32/1 | Driver seat control unit | 60L |
| N32/1 | Driver seat control unit | 70L |
| N32/15 | Left front multicontour seat control unit | 46L |
| N32/16 | Right front multicontour seat control unit | 58L |
| N32/2 | Front passenger seat control unit | 40L |
| N32/2 | Front passenger seat control unit | 52L |
| N32/2 | Front passenger seat control unit | 62L |
| N32/2 | Front passenger seat control unit | 71L |
| N32/23 | Driver seat lumbar support adjustment control unit | 37L |
| N32/23 | Driver seat lumbar support adjustment control unit | 56L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 38L |
| N37/12 | Control unit of NOx sensor upstream of diesel oxidation catalytic converter | 14L |
| N51/5 | Adaptive damping system control unit | 43L |
| N69/1 | Left front door control unit | 84L |
| N69/3 | Left rear door control unit | 35L |
| N73 | Electronic ignition switch control unit | 44L |
| R12/11 | Left rear sidebag squib | 32L |
| R12/12 | Right rear sidebag squib | 32L |
| R3/1 | Cigarette lighter with ashtray illumination, rear | 72L |
| S62/42 | Right engine hood contact switch | 19L |
| S62/43 | Left engine hood contact switch | 6L |
| S9/1 | Stop lamp switch | 82L |
| W16/3 | Left major assembly compartment ground point | 5A |
| W16/4 | Right major assembly compartment ground point | 15A |
| W17 | Right rear seat ground point | 28A |
| W18 | Left front seat crossmember ground point | 42A |
| W18/4 | Left front seat crossmember ground point 2 | 53A |
| W19 | Right front seat crossmember ground point | 62A |
| W28/2 | Right front seat crossmember ground point 2 | 71A |
| W29/1 | Left A-pillar ground point | 81A |
| X11/4 | Diagnostic connector | 83L |
| X115/2 | Rear passenger compartment USB connector | 68L |
| X26 | Engine/engine compartment electrical connector | 15L |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 79L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 78L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 81L |
| Y16 | Stationary heater switchover valve | 8L |
