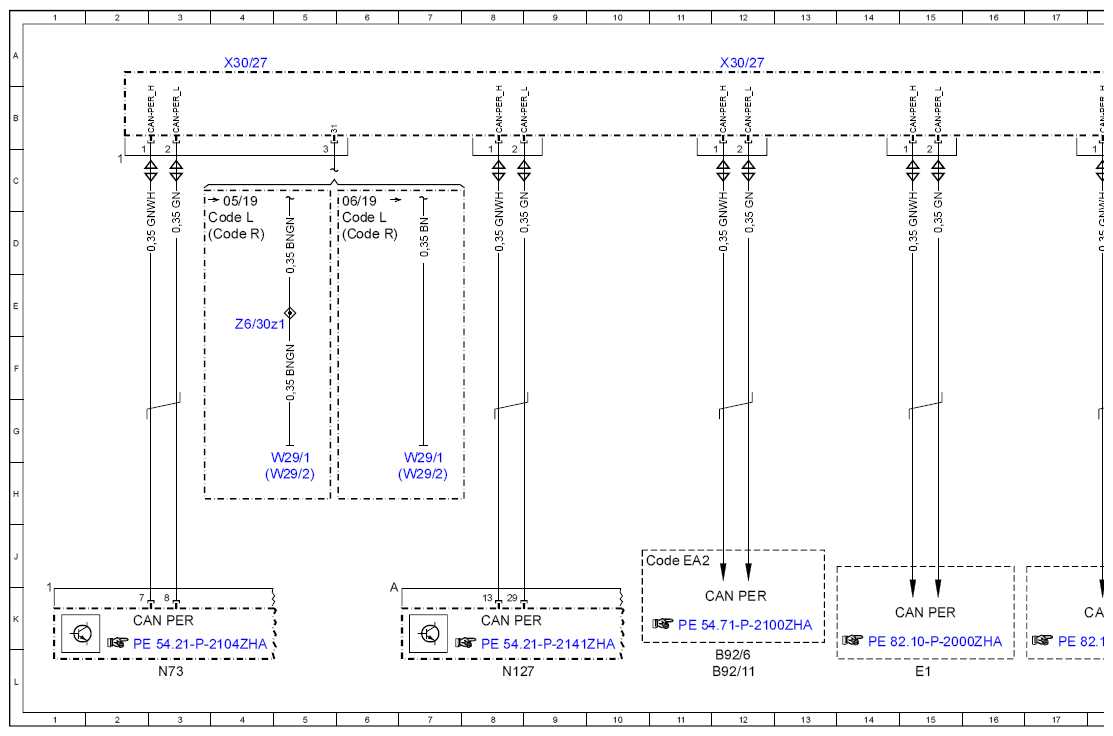

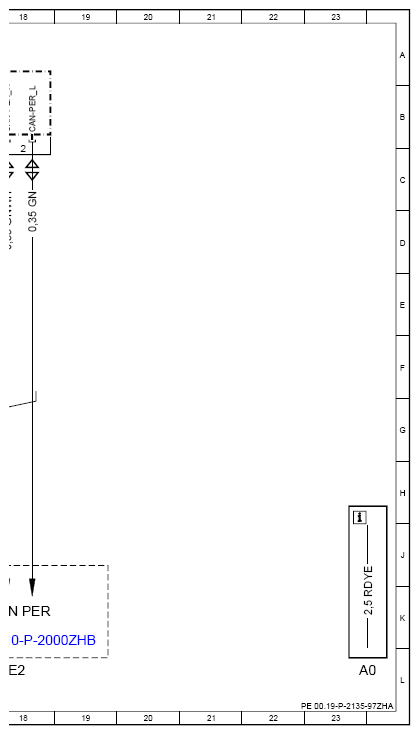

Wiring Diagram For Peripherals CAN - PE00.19-P-2135-97ZHA
Model 463 (except 463.342)
as of model year 2019
Potential distributor X30/27
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| B92/11 | Left outer rear bumper integrated radar sensor | 12L |
| B92/6 | Right outer rear bumper integrated radar sensor | 12L |
| CAN PER | Peripherals CAN | 3K |
| CAN PER | Peripherals CAN | 8K |
| CAN PER | Peripherals CAN | 12K |
| CAN PER | Peripherals CAN | 18K |
| CAN PER | Peripherals CAN | 15K |
| Code EA2 | Blind spot assist | 10J |
| Code L | LEFT-HAND DRIVE | 3D |
| Code L | LEFT-HAND DRIVE | 6D |
| Code R | RIGHT-HAND DRIVE | 3D |
| Code R | RIGHT-HAND DRIVE | 6D |
| E1 | Left front lamp unit | 15L |
| E2 | Right front lamp unit | 18L |
| N127 | Drivetrain control unit | 8L |
| N73 | Electronic ignition switch control unit | 3L |
| W29/1 | Left A-pillar ground point | 5H |
| W29/1 | Left A-pillar ground point | 7H |
| W29/2 | Right A-pillar ground point | 5H |
| W29/2 | Right A-pillar ground point | 7H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 4A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 12A |
| Z6/30z1 | Ground connection connector sleeve | 4E |
