Secure Vehicle On Vehicle Lift With Support Arms - AR00.60-P-0100-01C
Model 460, 461
Model 463
up to Model year 2019
| Risk of death or serious injury caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Information on influencing load ratios when removing major assemblies | AH00.60-P-0001-01A |

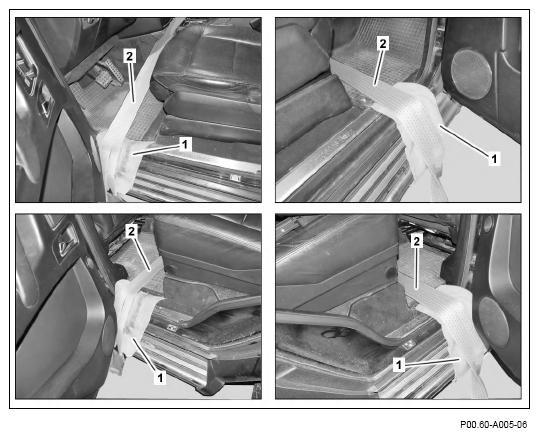

- Guide tensioning strap (2) at front through vehicle.
- Guide tensioning strap (2) in rear through vehicle.
- Lift vehicle with lifting platform.
- Guide front and rear tensioning straps (2) around right and left vehicle lift swivel arms and tension.
Place a rag (1) between tensioning strap (2) and vehicle contact areas.
Otherwise damage may occur.
The vehicle doors can now no longer be closed. During longer operations, switch off interior lighting.
- Remove in the reverse order.
