Remove Contacts From Sensor Laminated Contact Coupling - AR00.19-P-0120-02A

MODEL all

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying SLK 2.8 - 97 Blade (220 589 01 99 63)

Courtesy of MERCEDES-BENZ USA

Unpin female contacts from coupling

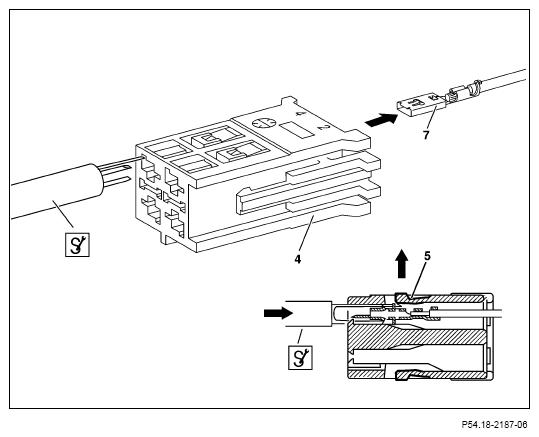

1. Insert blade holder with clamping pliers and SLK 2.8 - 97 blade from front side into contact cavity of coupling (4).

   Both spring shackles on the female contact (7) are compressed and, simultaneously, the locking tab (5) on the coupling (4) is lifted.

   Courtesy of MERCEDES-BENZ USA

2. A slight tug on the corresponding cable will remove the female contact (7) from the coupling.

   Rocking the female contact back and forth making use of the full housing tolerance may help to unpin the contact.
