Remove Contacts From Multi Contact Point (MCP) Coupling - AR00.19-P-0120-09A

MODEL all

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MCP 2.8/FL Blade. 2, 8 (220 589 01 99 59)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying MCP 2.8/FL Blade. 2.8/JPT/SPT (000 589 13 99 30)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with lock tab

1. Using a suitable tool, lift locking shackles (1) in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with coupling cap (shown on micro quadlock system with Multi Contact Point coupling)

2. Using a suitable tool (1), pry up lock tab (2) for coupling cap (4).
3. Pull clutch housing (3) from coupling cap (4) in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with retaining cage (shown on micro quadlock system with Multi Contact Point coupling)

4. Using a suitable tool (1), slide retaining cage (2) into pre-locking position in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

   Unpin female contacts from coupling

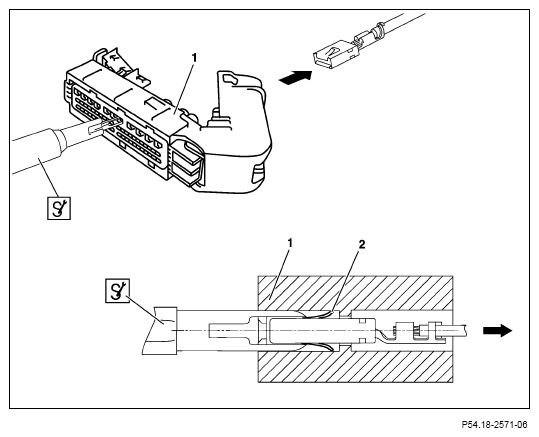

5. Insert blade holder with clamping pliers with MCP 2.8/Fl. 2.8 blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in contact cavity of coupling (1).

   This step compresses the spring shackles (2) on the female contact.

6. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
