Remove Contacts From Micro Timer 3 Coupling - AR00.19-P-0120-06A

Model all (4xWD, busses, cars, heavy vans, light vans, trucks, Unimog, Smart)

Fig 1: Identifying MT 3_Blade (220 589 01 99 54)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

The following tools are required for removal:

• New passenger vehicle wiring harness repair kit
• Wiring harness repair kit, basic
• Blade holder with clamping pliers
• MT 3 blade

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Loosen secondary release

1. Slide retaining slider with a suitable tool in direction of arrow out of end locked position.

   Different retaining sliders are installed.

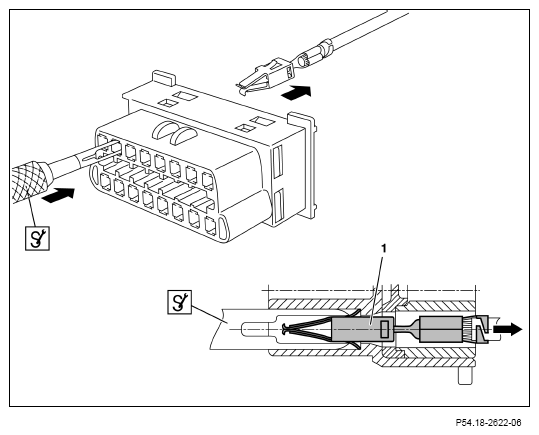

   Remove female contact (1) from connector

2. Insert blade holder with collet and MT 3 blade from the front side through openings at contact cavity of coupling.

   Insert tool carefully.

   Otherwise there might be damage to the bars between the contact cavity and the openings for the tool.

   This pushes together the springs at the female contact (1).

3. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
