Connecting Hand-Held Tester (HHT), Reading Fault Memory - AD00.00-P-2000-03D
Models 461, 463
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1036-13A | Handheld tester (HHT) | 651 100 01 99 |
| WH58.30-Z-1037-13A | Test cable (multiplexer) | 651 100 40 99 |
| WH58.30-Z-1044-13A | Adapter cable (HHT) for datalink connector (X11/4, 16-pin) | |
| WH58.30-Z-1047-13A | Test cable (HHT) 4-pin | 651 100 50 99 |

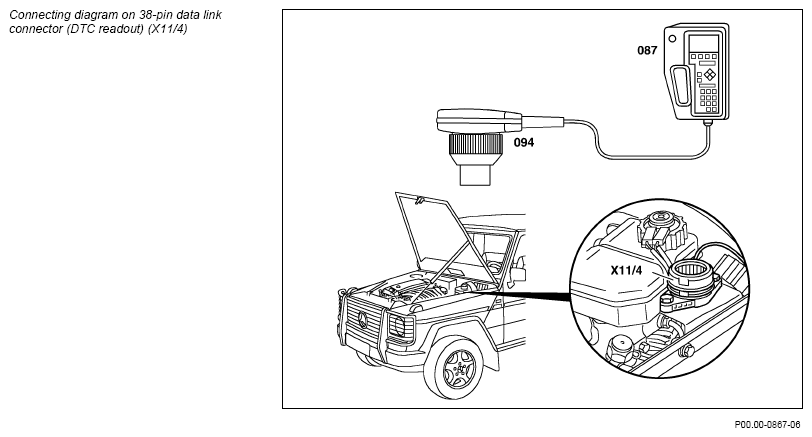

- Connect hand-held tester (087) to the datalink connector (X11/4) using the test cable (multiplexer) (094).
- Switch on ignition.
- According to instructions in display:
- Read/erase fault memory
- Read actual values
- Perform actuations
- Program control modules
- Disconnect HHT.
Pay attention to variations for specific systems which are listed in the chapter "Basic knowledge for diagnosis" of the respective diagnosis description.
Stored faults which may be caused by disconnecting cables or by simulation during test operations, have to be erased in the fault memory after completing the work.
087 Hand-Held Tester (HHT)
094 Test cable (Multiplexer)
X11/4 Data link connector (DTC readout)

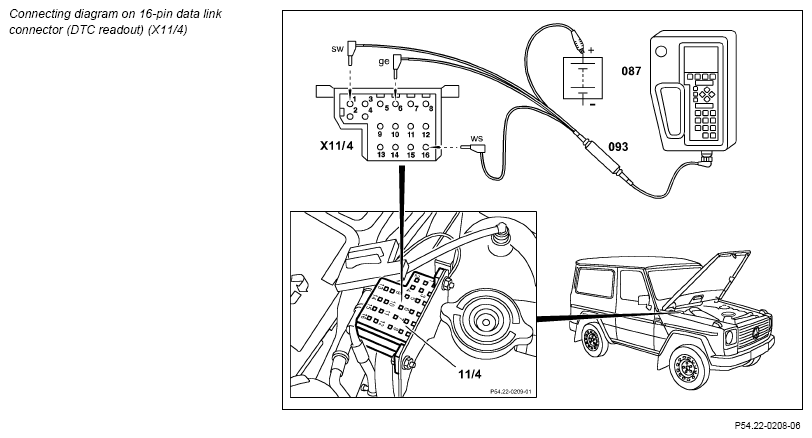

Connect Hand-Held Tester (HHT) as follows:
Black cable, terminal 31: Socket 1
White cable, terminal 15: Socket 16
Red cable, terminal 30: Battery +
087 Hand-Held Tester (HHT)
093 4-pin test cable
X11/4 Data link connector (DTC readout)
Socket 1 Terminal 31
Socket 16 Terminal 15
