Reset Service Indicator - AP00.20-P-0042GG

Model 463

as of Model year 2008 up to Model year 2012

Courtesy of MERCEDES-BENZ USA

	Adjust
1	Close rear-end door or liftgate as well as the hood and doors
2	Switch on ignition

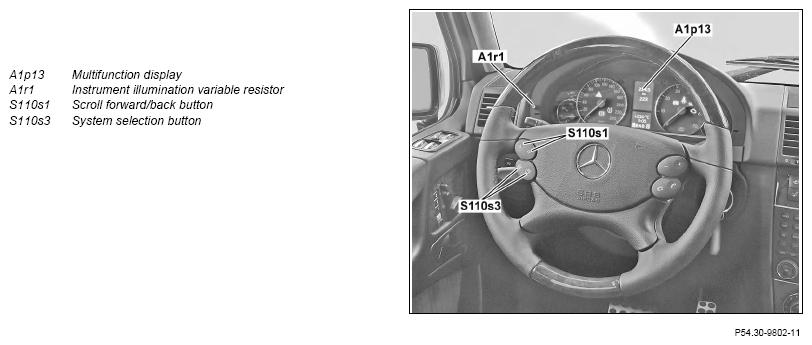

3	Press system selection push button switch (S110s3) repeatedly until the upper multifunction display (A1p13) shows the trip and total distance	If necessary.
4	Press lower push button switch forward or back button (S110s1)	The upper multifunction display (A1p13) shows the service display (e.g. "Service scope A in 300 km").
5	Press and hold variable resistor instrument lighting (A1r1) for 3 s	The upper multifunction display (A1p13) shows "Press reset service interval reset button for 3 s".
6	Press and hold variable resistor instrument lighting (A1r1) for 3 s	The upper multifunction display (A1p13) shows "Service interval was reset". The updated service display is then shown (e.g. "Service B in 15000 km")
7	Switch off ignition
