Read Out Maintenance Data From Instrument Cluster And Reset Service Indicator - AP00.20-P-0043J

Model 167, 253.99, 257, 290, 293

Model 213, 238

with code 800 (Model year 2020)

Model 213, 238

with code 807 (Model year 2017)

Model 213, 238

with code 808 (Model year 2018)

Model 213, 238

with code 809 (Model year 2019)

Model 213

with code 806 (Model year 2016)

Model 222

as of Model year 2018

Model 463

as of Model year 2019

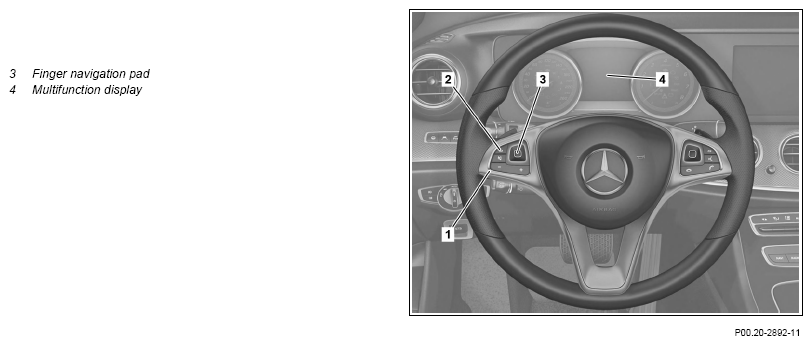

Shown on Model 213

Courtesy of MERCEDES-BENZ USA

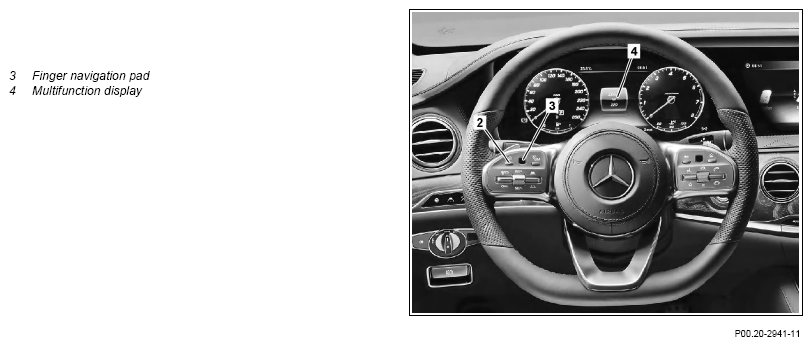

Shown on Model 222.0 as of Model year. 2018

Courtesy of MERCEDES-BENZ USA

	Dialing
1	Call up workshop level in the instrument cluster.	Model 167, 253.99, 257, 290, 293 Model 213, 238 with code 800 (Model year 2020) Model 213, 238 with code 807 (Model year 2017) Model 213, 238 with code 808 (Model year 2018) Model 213, 238 with code 809 (Model year 2019) Model 213 with code 806 (Model year 2016) Model 222 as of Model year 2018	AP00.20-P-0046B
		Model 463 as of Model year 2019	AP00.20-P-0046G
2	Switch electronic ignition lock control unit to position "2" (circuit 15).	There must be no fault messages shown on the multifunction display (4).
3	Use swipe movements on the finger navigation pad (3) to select menu item "ASSYST PLUS" in the multifunction display (4).
4	Confirm selection of "ASSYST PLUS" by pressing on the finger navigation pad (3).	The following tabs appear in the multifunction display (4): "Service data", "Full service", "Vehicle handover".
	Reset service data
5	Use swipe movements on the finger navigation pad (3) to select and confirm the "Full Service" menu item in the multifunction display (4).	The current service items are shown on the multifunction display (4).
6	Use swipe movements on the finger navigation pad (3) to select and confirm the "Confirm Service" menu item in the multifunction display (4).	The oil selection or "Service carried out?" message is shown on the multifunction display (4).
7	Select and confirm specification for engine oil used using swipe movements on the finger navigation pad (3).
8	Use swipe movements on the finger navigation pad (3) to select and confirm the "Yes" menu item in the multifunction display (4).	"Reversal not possible" is shown on the multifunction display (4).
9	Use swipe movements on the finger navigation pad (3) to select and confirm the "Confirmation" menu item in the multifunction display (4).	"Full service completed" is shown on the multifunction display (4). If the service is not performed or only partly performed after resetting the maintenance computer. ↓ Reset the maintenance computer to the default value again. Model 167, 253.99, 257, 290, 293 Model 213, 238 with code 800 (Model year 2020) Model 213, 238 with code 807 (Model year 2017) Model 213, 238 with code 808 (Model year 2018) Model 213, 238 with code 809 (Model year 2019) Model 213 with code 806 (Model year 2016) Model 463 as of Model year 2019	AP00.20-P-0044A
		Model 222 as of Model year 2018	AP00.20-P-0044HA
	Deactivation
10	Close workshop level in the instrument cluster.	Model 167, 253.99, 257, 290, 293 Model 213, 238 with code 800 (Model year 2020) Model 213, 238 with code 807 (Model year 2017) Model 213, 238 with code 808 (Model year 2018) Model 213, 238 with code 809 (Model year 2019) Model 213 with code 806 (Model year 2016) Model 222 as of Model year 2018	AP00.20-P-0046B
		Model 463 as of Model year 2019	AP00.20-P-0046G
