Remove/Install Expansion Reservoir - AR20.30-P-4950XGC
Engine 177 in Model 463
from Model year 2019
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant | Open the cooling system only at coolant temperatures below 90 ° C. Slowly open the lid and release the excess pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and protective goggles. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove right air filter housing. | AR09.10-P-1152XGC | |
| 2 | Unscrew cap (122) of expansion reservoir (120). | ||
| 3 | Extract coolant from expansion reservoir (120). | Fig 2 | |
| 4 | Unlock and disconnect electrical plug connection (124). | ||

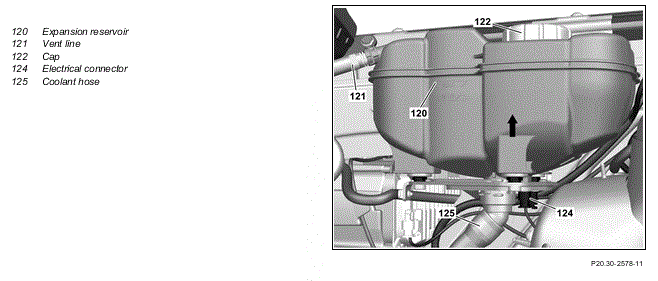

| 5 | Remove bleed line (121) at expansion reservoir (120) and seal openings with protective covers. | Fig 3 | |
| 6 | Remove expansion reservoir (120) from elastomer bearings in the direction of the arrow. | ||
| 7 | Remove coolant hose (125) at expansion reservoir (120) and seal openings with protective covers. | Fig 3 | |
| 8 | Remove the expansion reservoir (120) upwards. | ||
| 9 | Check elastomer bearings of expansion reservoir (120) for damage. | If there is a problem with the elastomer bearings, ↓ Replace elastomer bearings of the expansion reservoir (120). |
|
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Check coolant level and correct if necessary. Notes on coolant level |
AH20.00-P-1142-01CW | |
| *BF20.00-P-1001-02LA | |||
| *BF20.00-P-1001-04A | |||
| 12 | Check engine cooling system for leak tightness. | AR20.00-P-1010XGA | |
| 13 | Install upper engine cover. | AR01.10-P-2405XGC |
COOLING SYSTEM
| Number | Designation | Engine 177 in Model 463 from Model year 2019 |
|||
|---|---|---|---|---|---|
| BF20.00-P-1001-02LA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 13, 7 |
| Low-temperature circuit | Liter | ≈ 6, 6 | |||
| Antifreeze / water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications for Operating Fluids | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids | BB00.40-P-0326-06A | ||||
COOLANT MIXING RATIO
| Number | Designation | Engine all, except Engine 178 in Model 190.381 |
|||
|---|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze / water | up to -25°C | % | - |
| up to -37°C | % | 50/50 | |||
| As of -38°C | % | 55/45 | |||
| Overview and specifications | BB00.40-P-0310-01A | ||||
| References to specification | BB00.40-P-0310ZZ | ||||
