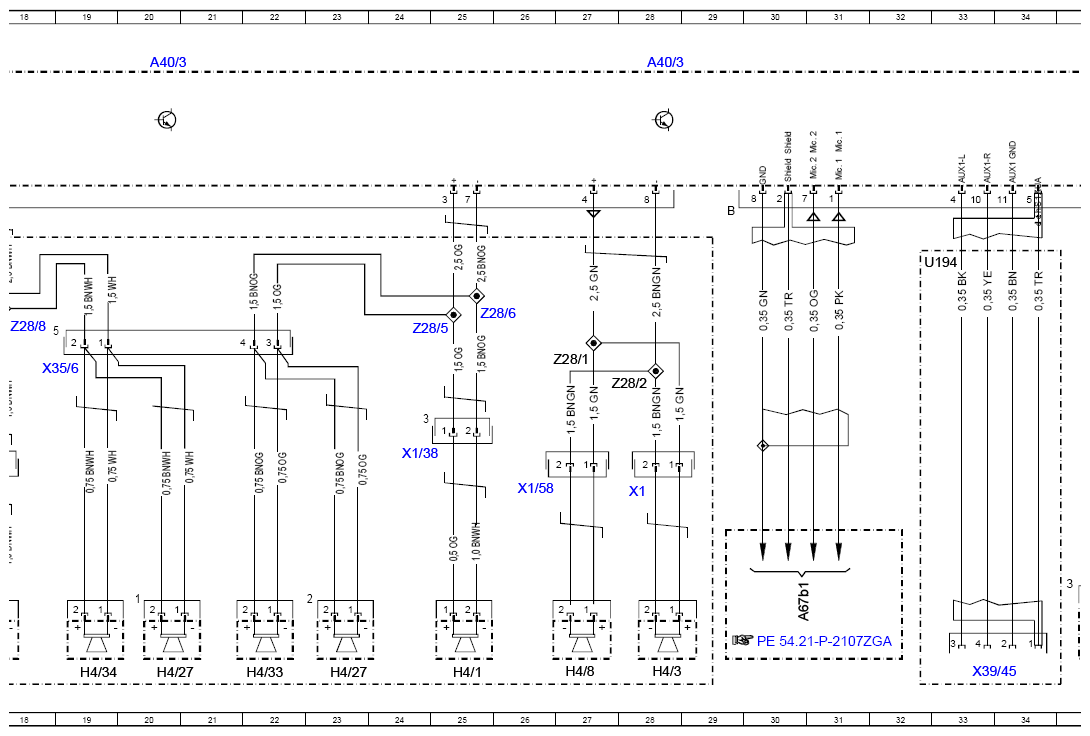

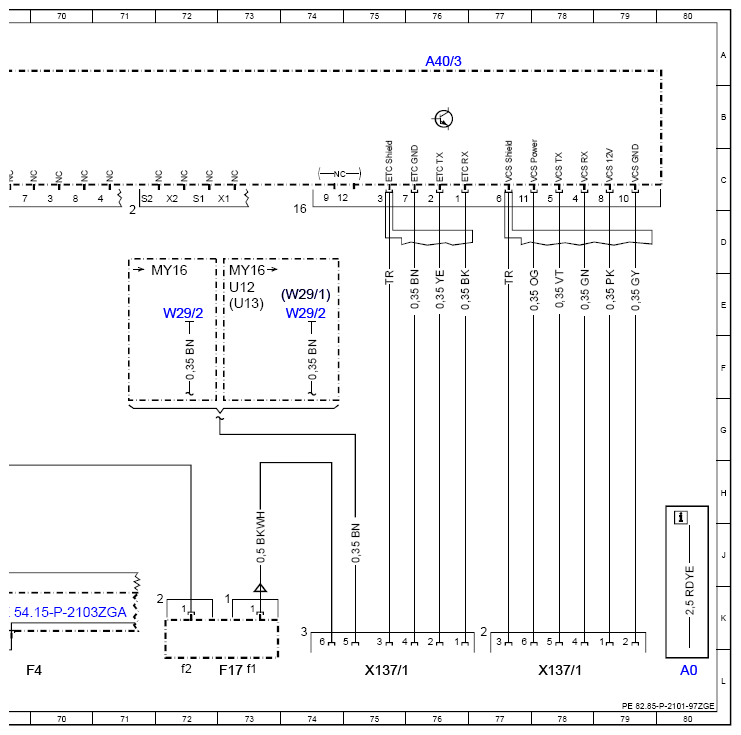

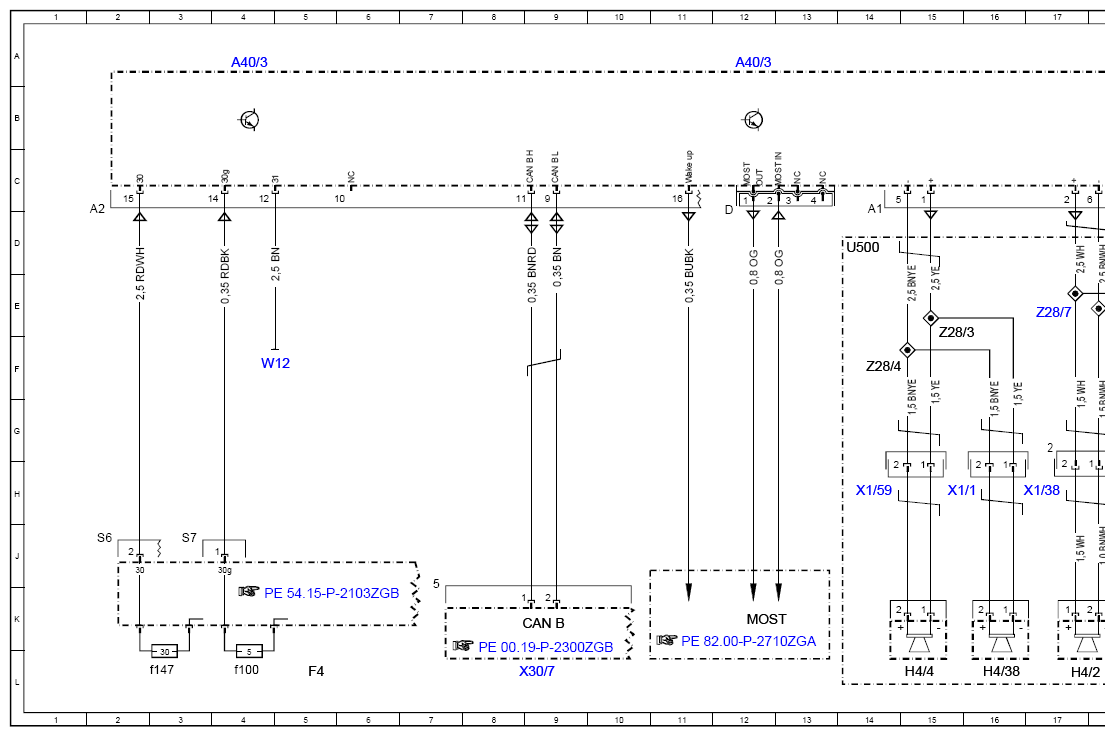

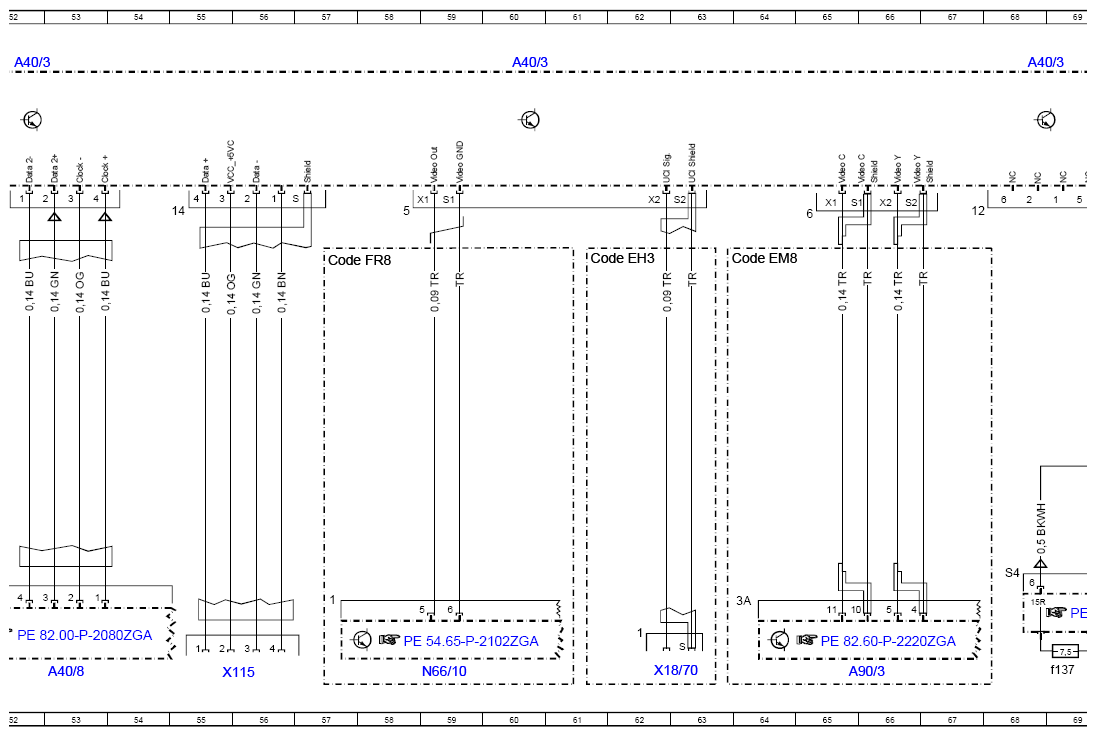

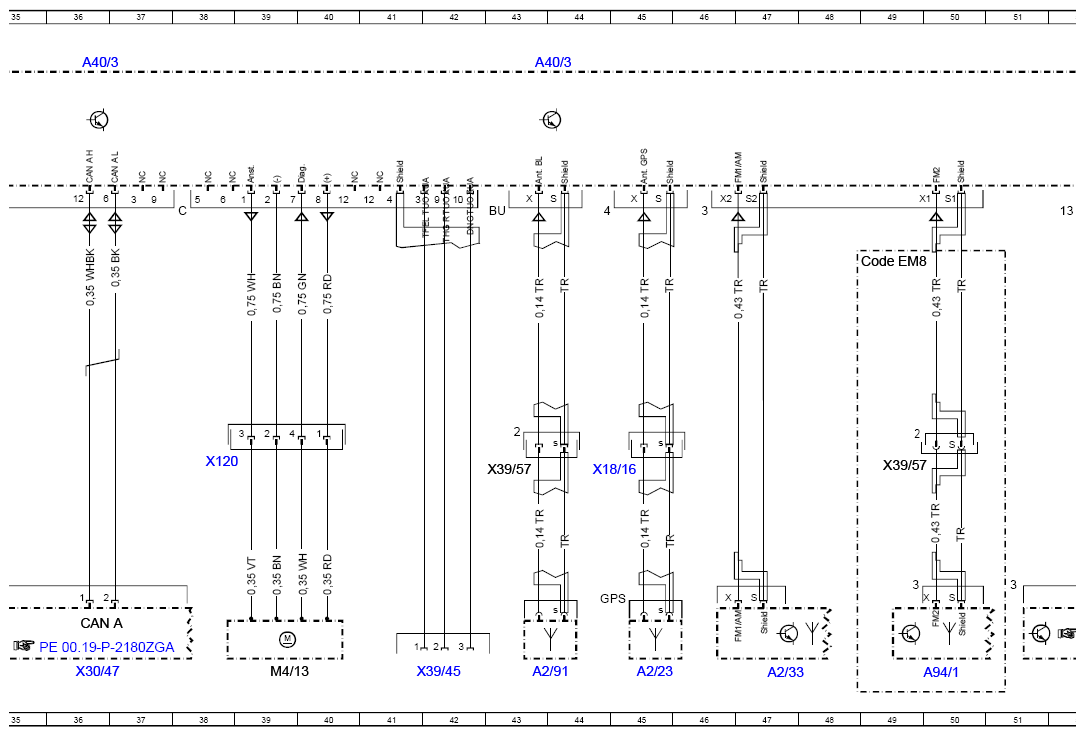

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - PE82.85-P-2101-97ZGE
Model 463
as of model year 2013 up to model year 2017
with code ZJ1 (Local version for Japan)
except code ZU8 (National version for USA)
/YoM 12 model refinement package, control unit A40/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A2/23 | Left front GPS antenna | 45L |
| A2/33 | AM and FM antenna amplifier | 47L |
| A2/91 | Bluetooth antenna | 43L |
| A40/3 | COMAND operating, display and control unit | 20A |
| A40/3 | COMAND operating, display and control unit | 68A |
| A40/3 | COMAND operating, display and control unit | 28A |
| A40/3 | COMAND operating, display and control unit | 36A |
| A40/3 | COMAND operating, display and control unit | 43A |
| A40/3 | COMAND operating, display and control unit | 4A |
| A40/3 | COMAND operating, display and control unit | 12A |
| A40/3 | COMAND operating, display and control unit | 52A |
| A40/3 | COMAND operating, display and control unit | 60A |
| A40/3 | COMAND operating, display and control unit | 76A |
| A40/8 | Audio/COMAND display | 53L |
| A67b1 | Hands-free system microphone | 30J |
| A90/3 | TV digital tuner | 65L |
| A94/1 | TV 1 and FM 2 antenna amplifier | 50L |
| CAN A | Telematics CAN | 36K |
| CAN B | Interior CAN | 9K |
| Code EH3 | Media Interface | 61D |
| Code EM8 | TV tuner | 49D |
| Code EM8 | TV tuner | 63D |
| Code FR8 | Backup camera | 57D |
| F17 | Electronic Toll Collection pre-installation electrical fuse | 73L |
| F17f1 | Fuse 1 | 73L |
| F17f2 | Fuse 2 | 72L |
| F4 | Rear fuse and relay module | 5L |
| F4 | Rear fuse and relay module | 69L |
| F4f100 | Fuse 100 | 4L |
| F4f137 | Fuse 137 | 69L |
| F4f147 | Fuse 147 | 3L |
| H4/1 | Left front door midrange speaker | 25L |
| H4/2 | Right front door midrange speaker | 17L |
| H4/27 | Center cockpit speaker (centerfill) | 20L |
| H4/27 | Center cockpit speaker (centerfill) | 23L |
| H4/3 | Left rear door midrange speaker | 28L |
| H4/33 | Left cockpit tweeter | 22L |
| H4/34 | Right cockpit tweeter | 19L |
| H4/38 | Right rear door tweeter | 16L |
| H4/4 | Right rear door midrange speaker | 15L |
| H4/8 | Right rear speaker | 27L |
| M4/13 | COMAND fan motor | 39L |
| MOST | Media Oriented System Transport | 12K |
| N66/10 | Backup camera voltage supply module | 59L |
| U194 | Valid for AUX jack | 32D |
| U500 | Not valid for Sound System | 14D |
| W12 | Ground point (center console) | 4F |
| W29/1 | A-pillar ground connection, left | 74E |
| W29/2 | Ground (right A-pillar) | 74E |
| W29/2 | Ground (right A-pillar) | 72E |
| X1 | Left rear speaker connector | 28H |
| X1/1 | Right rear speaker connector | 15H |
| X1/38 | Left front door sound system electrical connector | 17H |
| X1/38 | Left front door sound system electrical connector | 24G |
| X1/58 | Left rear door speaker connector | 26H |
| X1/59 | Right rear door speaker connector | 14H |
| X115 | USB electrical connector | 56L |
| X120 | Radio fan electrical connector | 38H |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 75L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 78L |
| X18/16 | Interior compartment/GPS wiring harness connector | 45H |
| X18/70 | Media interface electrical connector | 63L |
| X30/47 | Telematics CAN (CAN A) potential distributor electrical connector | 36L |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 9L |
| X35/6 | Cockpit/module box separation point | 19F |
| X39/45 | AUX jack electrical connector | 33L |
| X39/45 | AUX jack electrical connector | 42L |
| X39/57 | Bluetooth module connector | 43H |
| X39/57 | Bluetooth module connector | 49H |
| Z28/1 | Left rear speaker group connector sleeve (+ signal) | 27F |
| Z28/2 | Left rear speaker group connector sleeve (- signal) | 28F |
| Z28/3 | Right rear speaker group connector sleeve (+ signal) | 15F |
| Z28/4 | Right rear speaker group connector sleeve (- signal) | 14F |
| Z28/5 | Left front door speaker group connector sleeve (+ signal) | 24E |
| Z28/6 | Left front door speaker group connector sleeve (- signal) | 25E |
| Z28/7 | Right front door speaker group connector sleeve (+ signal) | 17E |
| Z28/8 | Right front door speaker group connector sleeve (- signal) | 18E |
