Remove/Install PARKTRONIC (PTS) Parking Assist System Control Unit - AR54.65-P-0006GW

Model 463

as of Model year 2013 up to Model year 2019

with code EZ8 (PARKTRONIC Park Assist) /Facelift 2012

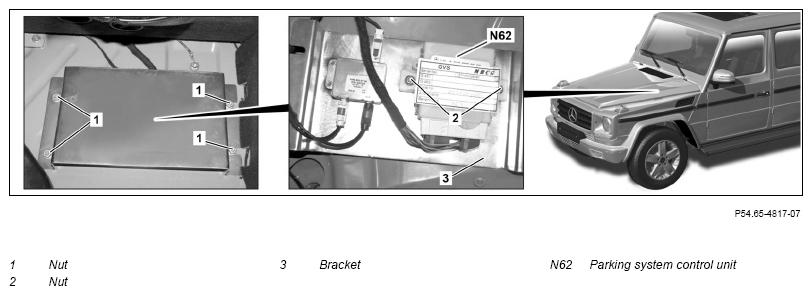

Fig 1: Parking Assist System (PARKTRONIC) Control Unit Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 With Code EZ8 /Facelift 2012

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Read out coding from parking system control unit (N62)
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
2	Remove cover below right dashboard	Remove/install cover below instrument panel (right)	AR68.10-P-1520GW
3	Lift right floor covering	Lift right floor covering far enough until the nuts (1) and bracket (3) are accessible.
4	Unscrew nuts (1, 2)
5	Disconnect electrical connectors from parking system control unit (N62) and remove parking system control unit (N62)
6	Install in the reverse order
