Remove/Install Instrument Panel Button Group On Driver'S Side - AR54.25-P-1004XG
Model 463
as of Model year 2019
with code A53 (Active Lane Keeping Assist)
with code EZ8 (PARKTRONIC Park Assist)

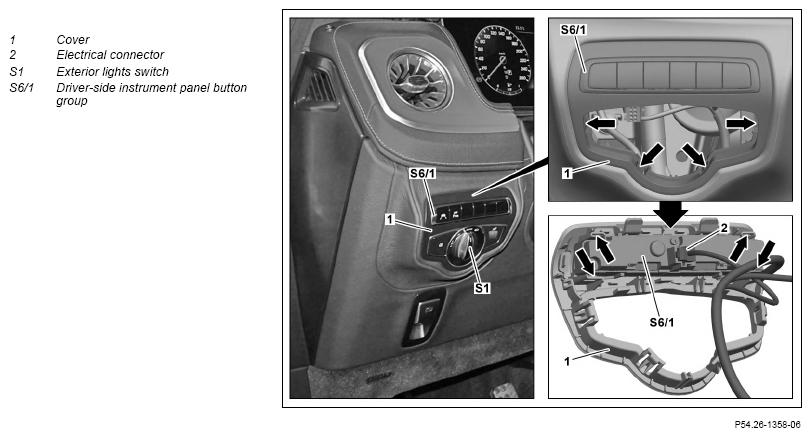

Fig 1: Driver-Side Instrument Panel Button Group Components Location - Model 463 As Of Model Year 2019 With Code A53 & Code EZ8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove exterior lights switch (S1). | AR54.25-P-3270XG | |
| 2 | Release catch hooks (arrows) and remove cover (1) with driver-side instrument panel button group (S6/1) until electrical connector (2) is accessible. | ||
| 3 | Disconnect electrical connector (2). | ||
| 4 | Release catch hooks (arrows) and remove driver-side instrument panel button group (S6/1) from cover (1). | ||
| 5 | Install in reverse order. |
