Remove/Install Analog Clock - AR54.30-P-0010XG

Model 463

as of Model year 2019

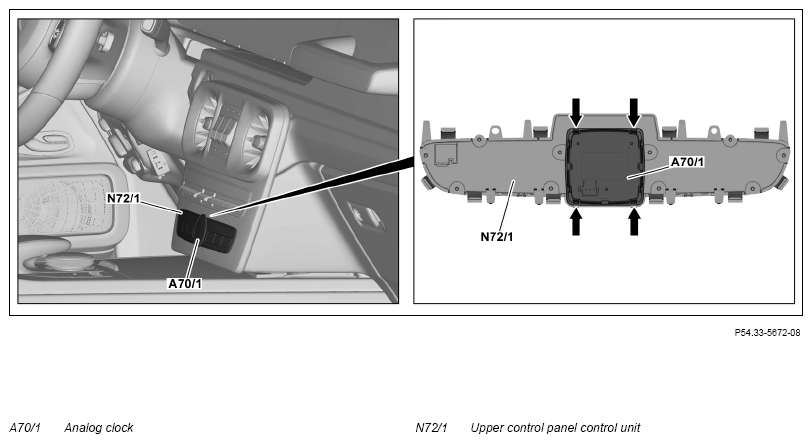

Fig 1: Analog Clock Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove upper control panel control unit (N72/1).		AR54.21-P-1262XG
2	Unclip analog clock (A70/1) at catch hooks (arrows) from upper control panel control unit (N72/1).
3	Remove analog clock (A70/1) from upper control panel control unit (N72/1).
4	Install in reverse order.
