Check Warning And Function Indicator Lamps In Instrument Cluster - AP54.30-P-5451HA

Model 166, 167, 205, 213, 217, 222, 238, 253, 257, 290

Model 463

as of Model year 2019

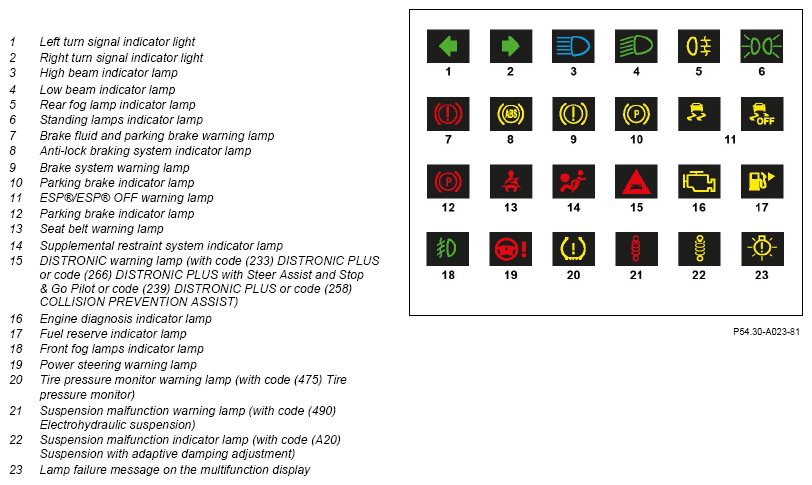

Fig 1: Instrument Cluster Warning And Function Indicator Lamps Components Location - Model 463 As Of Model Year 2019

G13658930

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Close the engine hood, the liftgate and all doors.
2	Switch electronic ignition lock control unit to position "2" (circuit 15).
3	Operate parking brake.
	Check
4	Check warning lamps (7, 9, 10, 11, 13, 15, 17, 19, 20, 21) and indicator lamps (6, 8, 12, 14, 16, 18, 22) for proper operation.	If problems are determined, ↓ rectify the problems. After obtaining special order.
5	Manually switch on low beam.	The low beam indicator lamp (4) must light up and there must be no lamp failure message shown on the multifunction display (23). If problems are determined, ↓ rectify the problems. After obtaining special order.
6	Switch on main beam.	The high beam indicator lamp (3) must light up and there must be no lamp failure message shown on the multifunction display (23). If problems are determined, ↓ rectify the problems. After obtaining special order.
7	Switch on rear fog light.	The rear fog light indicator lamp (5) must light up and there must be no lamp failure message shown on the multifunction display (23). If problems are determined, ↓ rectify the problems. After obtaining special order.
8	Operate service brake and engage reverse gear.	There must be no lamp failure message shown on the multifunction display (23). If problems are determined, ↓ rectify the problems. After obtaining special order.
9	Switch on hazard warning system.	The left turn signal light indicator lamp (1) and the right turn signal light indicator lamp (2) flash at the same time on the multifunction display. There must be no lamp failure message shown on the multifunction display (23). If problems are determined, ↓ rectify the problems. After obtaining special order.
10	Reset switch positions to input condition.
	Finishing activity
11	Switch electronic ignition lock control unit to position "0".
