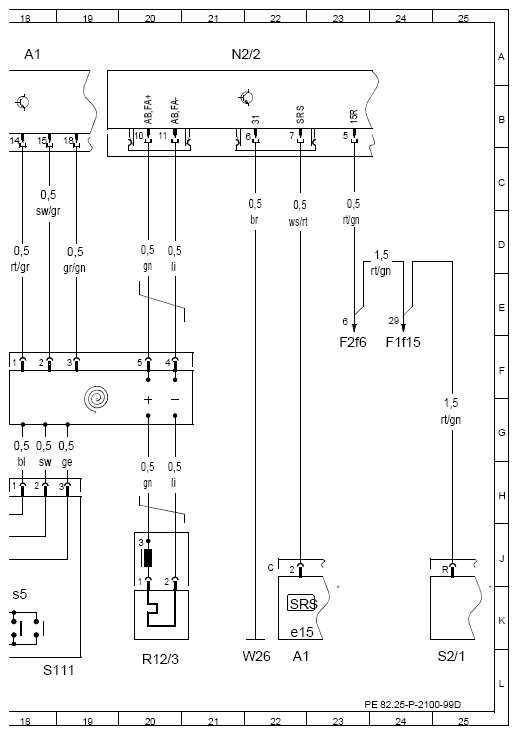

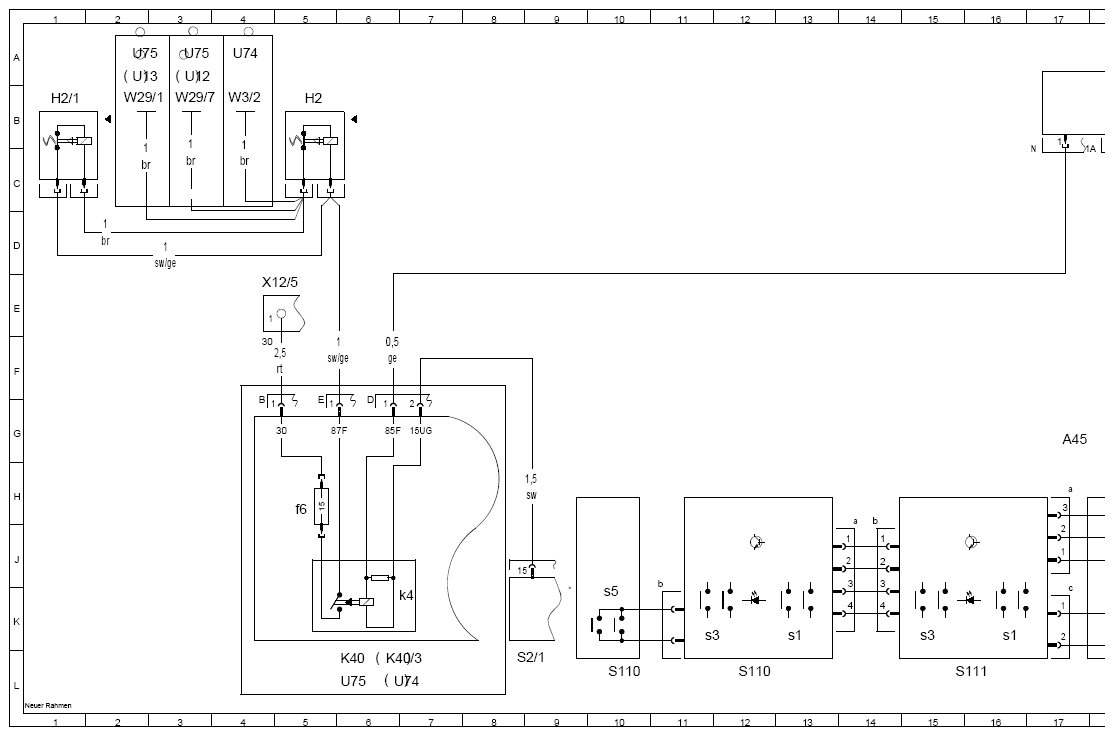

(Wiring Diagram For Airbag/Fanfare Horn Contact Spiral - PE82.25-P-2100-99D)
MODEL 463
as of production date 6/1/99 up to production date 5/31/12
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 18A |
| A1 | Instrument cluster | 22K |
| A1e15 | Airbag indicator and warning lamp | 22K |
| A45 | Fanfare horns and airbag clock spring contact | 17G |
| F1f15 | Fuse 15 | 24E |
| F2f6 | Fuse 6 | 23E |
| H2 | Fanfare horns 1 | 5B |
| K40 | Relay module | 6L |
| K40/3 | Diesel relay unit (horn, EGR [ARF], pressure regulator valve) | 7L |
| K40/3k4 | Input | 6K |
| K40f6 | Fanfare horns fuse | 5H |
| N2/2 | Emergency tensioning retractor (ETR [GUS]) with airbag (AB) control unit | 21A |
| R12/3 | Driver airbag squib | 20L |
| S110 | Left multifunction steering wheel button group | 10L |
| S110 | Left multifunction steering wheel button group | 12L |
| S110s1 | Scroll forward/back button | 13K |
| S110s3 | System selection button | 11K |
| S110s5 | Fanfare horn system button | 10K |
| S111 | Right multifunction steering wheel button group | 19L |
| S111 | Right multifunction steering wheel button group | 16L |
| S111s1 | Buttons + and - for setting specific functions and volume control | 16K |
| S111s3 | Accept/terminate phone call button | 15K |
| S111s5 | Fanfare horn system button | 18K |
| S2/1 | Ignition/starter switch | 9K |
| S2/1 | Ignition/starter switch | 25K |
| U12 | Valid for left-hand drive vehicles | 3B |
| U13 | Valid for right-hand drive vehicles | 3B |
| U74 | Valid for diesel engines | 4A |
| U74 | Valid for diesel engines | 7L |
| U75 | Valid for gasoline engines | 3A |
| U75 | Valid for gasoline engines | 2A |
| U75 | Valid for gasoline engines | 6L |
| W26 | Ground (restraint systems control unit) | 22K |
| W29/1 | Ground (left A-pillar) | 2B |
| W29/7 | Ground (steering column) | 3B |
| W3/2 | Ground (left front wheelhouse) | 4B |
| X12/5 | Circuit 30, 15, 61 terminal block, wake-up | 5E |
