Remove/Install Rear Door Lining - AR72.12-P-1010XG

Model 463

as of model year 2019

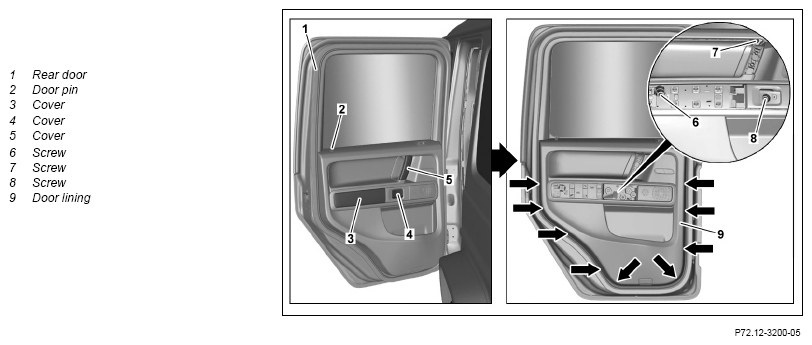

Fig 1: Rear Door Lining Components Location - Model 463 As Of Model Year 2019 (Shown On Left Side Of Vehicle)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Unclip cover (3, 4, 5) at rear doors (1).	Long wedge	Fig 2
2	Remove screws (6, 7, 8).
3	Unclip door lining (9) at mounting clips (arrows).	Position assembly wedge, in each case, directly on mounting clips (arrows). Otherwise, the retaining tabs of the mounting clips will break. Check mounting clips for damage, replace if necessary.
4	Detach door lining (9) from rear door (1); in this connection, guide door pin (2) out of door lining (9).	Remove door lining (9) from rear door until electrical connectors and cable of inside door opener can be accessed.
5	Release and disconnect electrical connectors.
6	Unhook cable from door trim.
7	Install in reverse order.
