Wiring Diagram For Distronic (DTR) Control Unit - PE30.30-P-2101-97ZGA
Engine 157.9, 176.9, 273.9, 279.9, 642.8/9 In Model 463 As Of Model Year 2013 Up To Model Year 2019

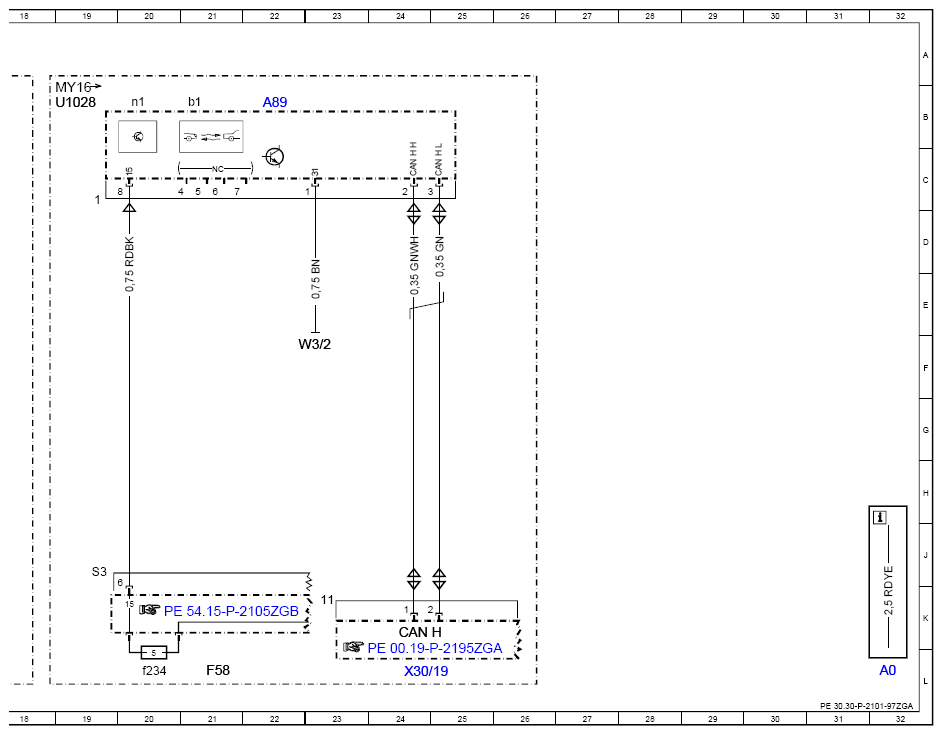

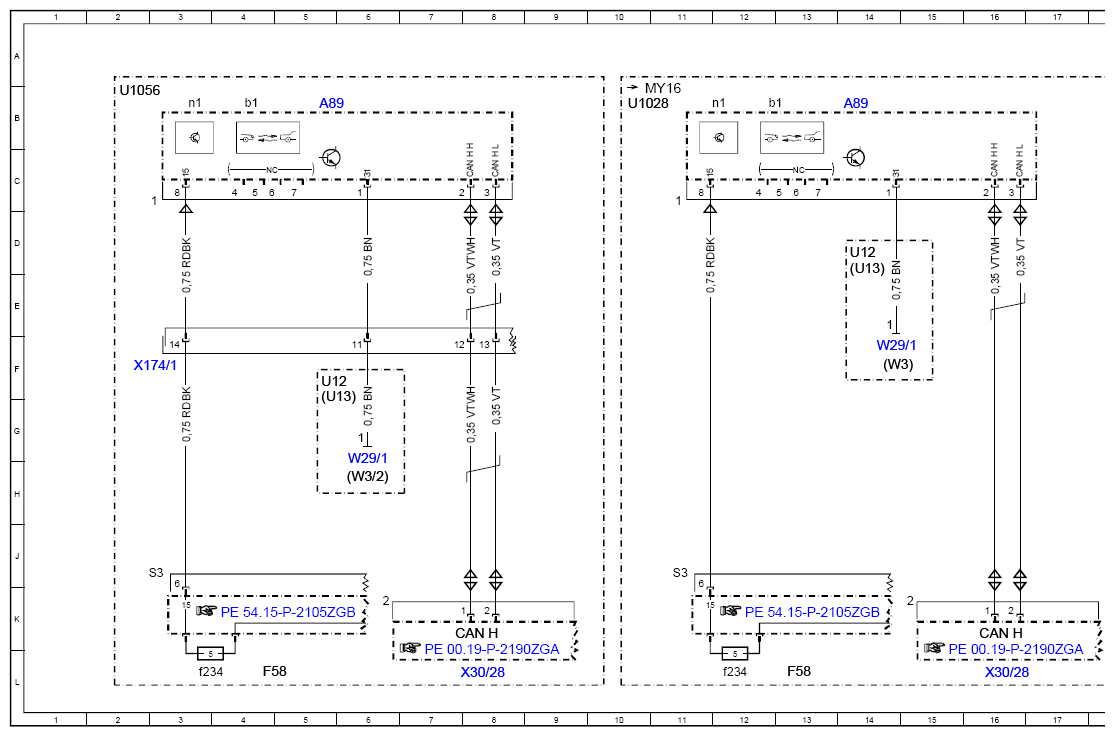

With Code Ez9 (Active Distance Assist DISTRONIC) /year model 2012 Facelift Up To year model 2018 Facelift, Control Unit A98
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 32L |
| A89 | DISTRONIC electric controller unit | 5B |
| A89 | DISTRONIC electric controller unit | 14B |
| A89 | DISTRONIC electric controller unit | 22B |
| A89b1 | DISTRONIC radar sensor | 4B |
| A89b1 | DISTRONIC radar sensor | 12B |
| A89b1 | DISTRONIC radar sensor | 21B |
| A89n1 | DISTRONIC control unit | 3B |
| A89n1 | DISTRONIC control unit | 12B |
| A89n1 | DISTRONIC control unit | 20B |
| CAN H | Vehicle dynamics CAN | 8K |
| CAN H | Vehicle dynamics CAN | 16K |
| CAN H | Vehicle dynamics CAN | 24K |
| F58 | Front passenger footwell fuse and relay module | 4L |
| F58 | Front passenger footwell fuse and relay module | 13L |
| F58 | Front passenger footwell fuse and relay module | 21L |
| F58f234 | Fuse 234 | 3L |
| F58f234 | Fuse 234 | 12L |
| F58f234 | Fuse 234 | 20L |
| U1028 | Valid for engine 157 | 10B |
| U1028 | Valid for engine 157 | 18B |
| U1056 | Not valid for M 157 | 2B |
| U12 | Valid for left-hand drive vehicles | 5F |
| U12 | Valid for left-hand drive vehicles | 14D |
| U13 | Valid for right-hand drive vehicles | 5G |
| U13 | Valid for right-hand drive vehicles | 14D |
| W29/1 | A-pillar ground connection, left | 6H |
| W29/1 | A-pillar ground connection, left | 14F |
| W3 | Left front wheel arch ground point | 14F |
| W3/2 | Ground (left front wheel house) | 6H |
| W3/2 | Ground (left front wheel house) | 23F |
| X174/1 | Vehicle interior/front bumper electrical connector | 3F |
| X30/19 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | 24L |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor connector electrical | 8L |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor connector electrical | 16L |
