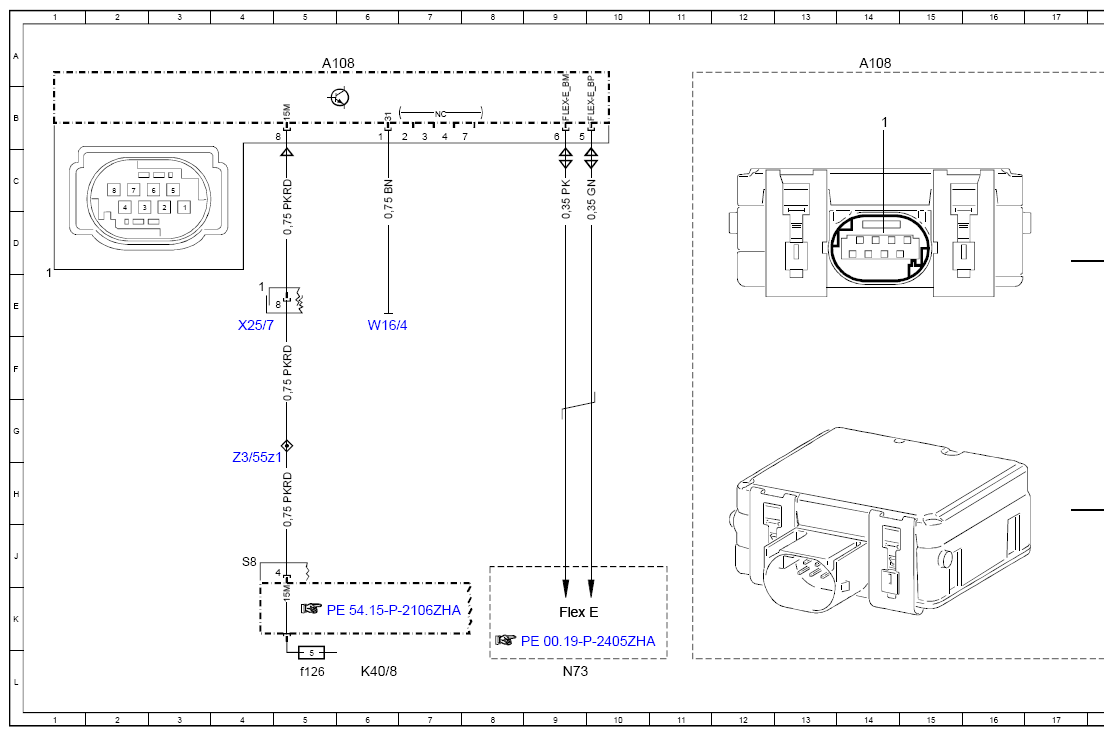

Wiring Diagram For Active Brake Assist Controller Unit - PE30.30-P-2108-97ZHA
Model 463 (Except 463.342) As Of Model Year 2019 With Code ZQ4 (BA3 Final Edition) Control Unit A108
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 32L |

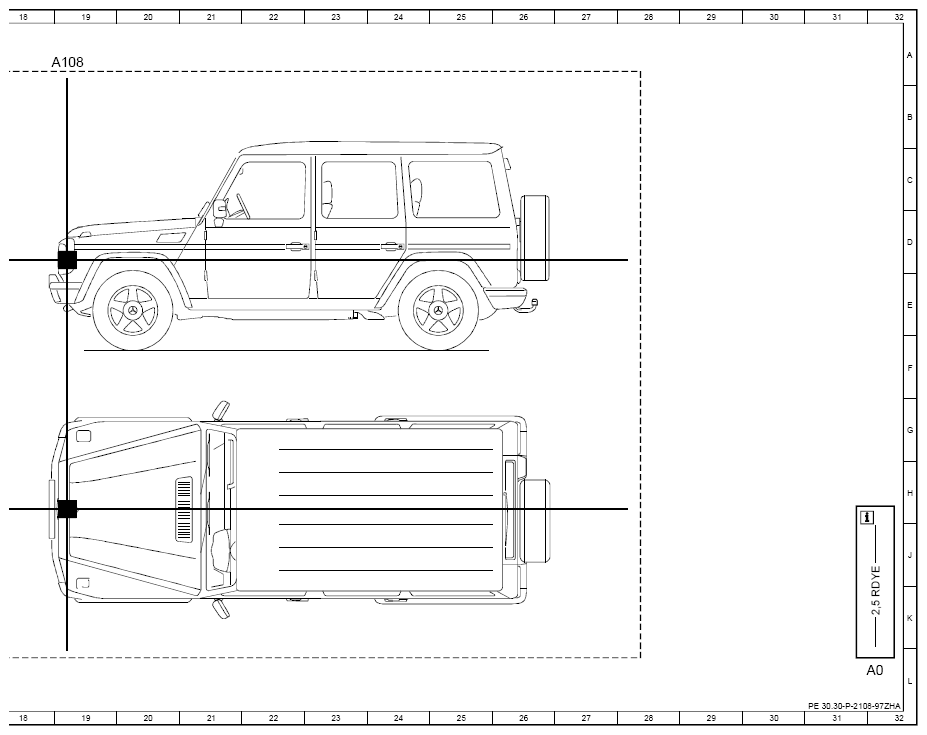

| A108 | Active Brake Assist controller unit | 5A |
| A108 | Active Brake Assist controller unit | 14A |
| A108 | Active Brake Assist controller unit | 19A |
| Flex E | Chassis FlexRay | 9K |
| K40/8 | Engine fuse and relay module | 6L |
| K40/8f126 | Fuse 126 | 5L |
| N73 | Electronic ignition switch control unit | 9L |
| W16/4 | Right major assembly compartment ground point | 6E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 4E |
| Z3/55z1 | Tml. 15 connector sleeve | 4G |
