(Retrofit Sensor Cable - AN54.65-P-0010-02B)
MODEL 463 as of production date 9/1/96 up to production date 11/30/00
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-34A | Step drill bit dia. 16-30.5 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
- Connect sensor cable to left outer sensor, rear bumper (A43b10).
- Attach sensor cable to bumper with clip-type fastener (arrow).
- Connect sensor cable to left inner sensor, rear bumper (A43b10).
- Route and connect sensor cable to right outer sensor, rear bumper (A43b7) and right inner sensor, rear bumper (A43b8).

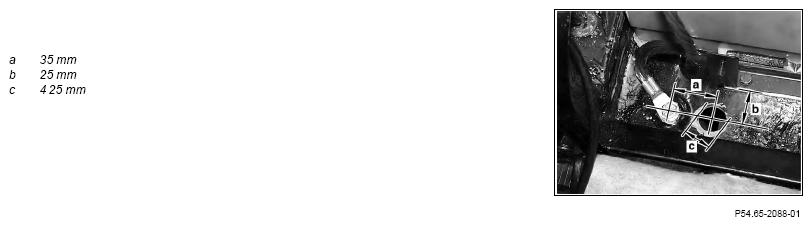

- Mark opening for cable conduit in battery compartment and drill.
- Insert grommet (arrow) and route sensor cable into battery compartment.
