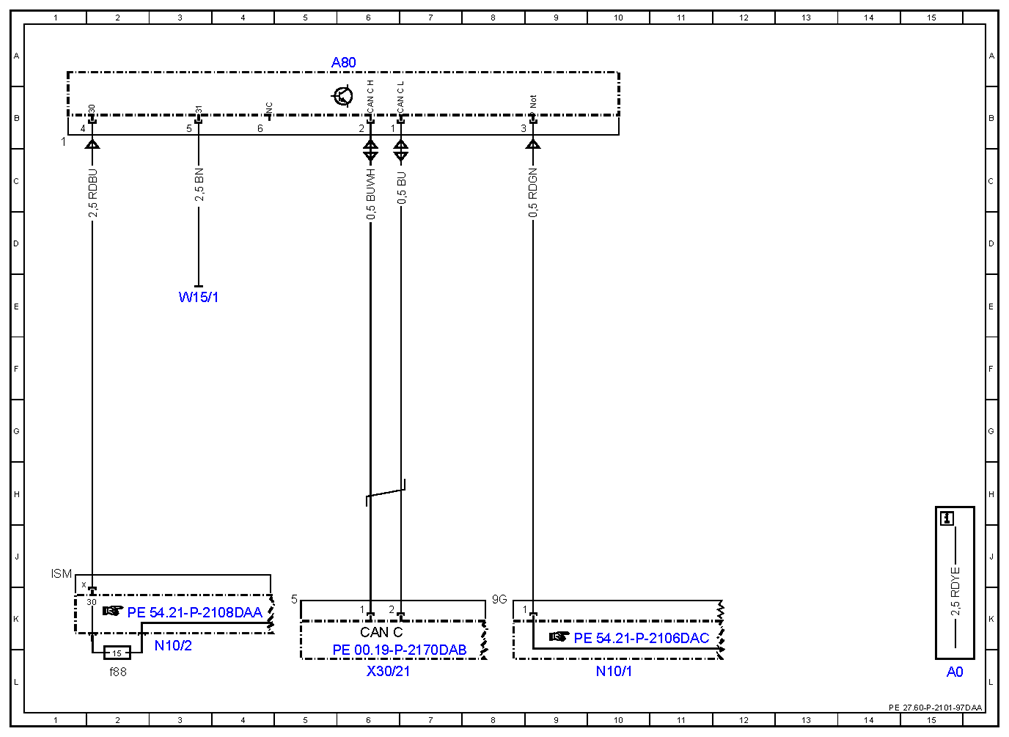

Wiring diagram for intelligent servo module (ISM) control unit - PE27.60-P-2101-97DAA
TRANSMISSION 722.9 in MODEL 212.0/2 Control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A80 | Intelligent servo module for DIRECT SELECT | 6A |
| CAN C | Drive train CAN | 6K |
| N10/1 | Front SAM control unit with fuse and relay module | 10L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f88 | Fuse 88 | 2L |
| W15/1 | Right footwell ground point | 3E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 6L |
