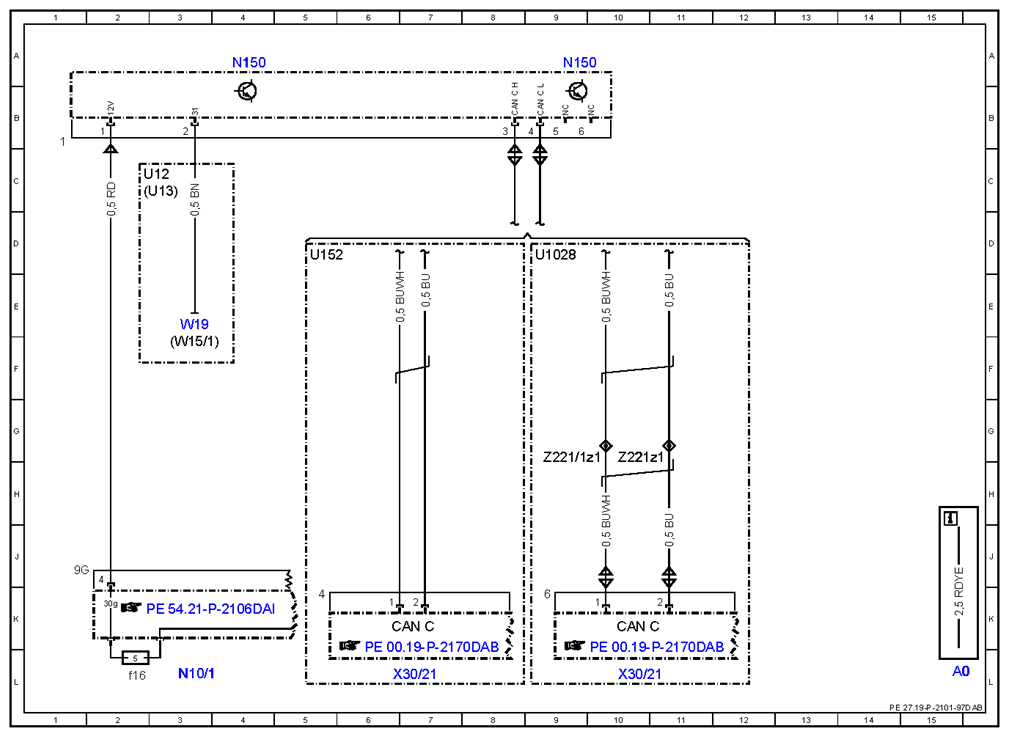

Wiring diagram for electronic transmission control (ETC) control unit - PE27.19-P-2101-97DAB
TRANSMISSION 722.9 in MODEL 212.074/077/274/277 Control unit N150
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN C | Drive train CAN | 7K |
| CAN C | Drive train CAN | 10K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f16 | Fuse 16 | 2L |
| N150 | DIRECT SELECT INTERFACE | 4A |
| N150 | DIRECT SELECT INTERFACE | 9A |
| U1028 | Valid for engine 157 | 9D |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| U152 | Valid for gasoline engine 156 | 5D |
| W15/1 | Right footwell ground point | 3F |
| W19 | Right front seat crossmember ground point | 3E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7L |
| X30/21 | Drive train CAN voltage distributor electrical connector | 10L |
| Z221/1z1 | Drive train CAN "high" potential distributor connector sleeve | 9G |
| Z221z1 | Drive train CAN "low" potential distributor connector sleeve | 10G |
