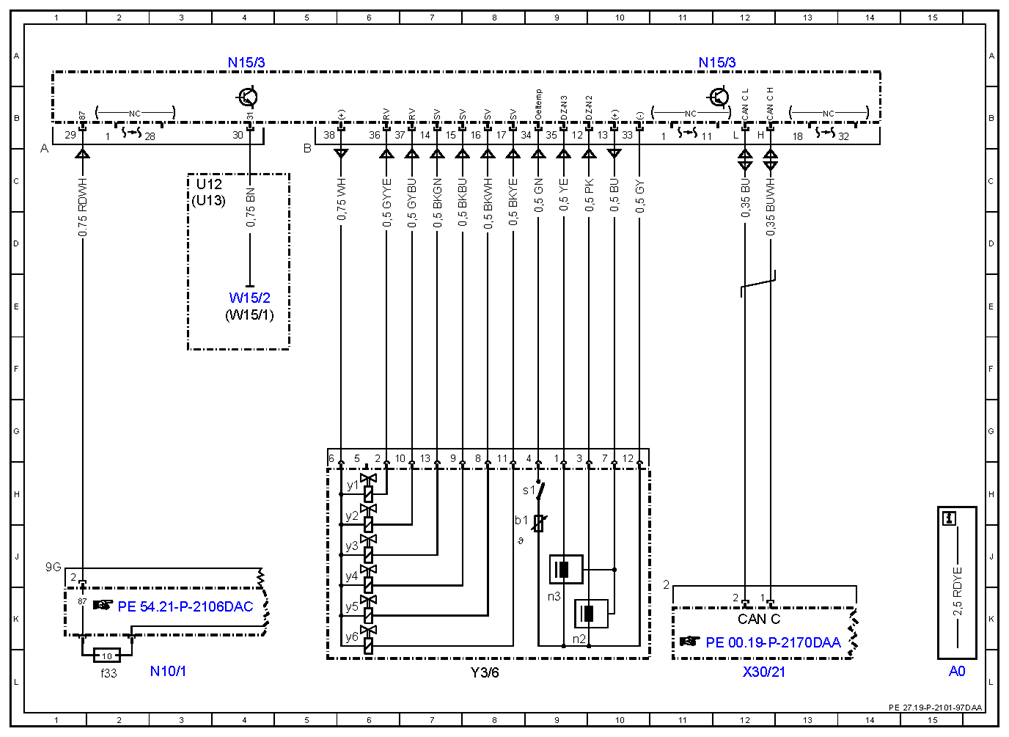

Wiring diagram for electronic transmission control (ETC) control unit - PE27.19-P-2101-97DAA
TRANSMISSION 722.6 in MODEL 212 Control unit N15/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| CAN C | Drive train CAN | 12K |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f33 | Fuse 33 | 2L |
| N15/3 | Electronic transmission control unit | 4A |
| N15/3 | Electronic transmission control unit | 11A |
| U12 | Valid for left-hand drive vehicles | 3C |
| U13 | Valid for right-hand drive vehicles | 3C |
| W15/1 | Right footwell ground point | 4E |
| W15/2 | Left footwell ground point | 4E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 12L |
| Y3/6 | Automatic transmission electric controller unit | 8L |
| Y3/6b1 | Transmission oil temperature sensor | 8H |
| Y3/6n2 | RPM sensor 2 | 9K |
| Y3/6n3 | RPM sensor 3 | 9K |
| Y3/6s1 | Starter lockout contact | 9H |
| Y3/6y1 | Modulating pressure control solenoid valve | 6H |
| Y3/6y2 | Shift pressure control solenoid valve | 6H |
| Y3/6y3 | 1-2 and 4-5 gearshift solenoid valve | 6J |
| Y3/6y4 | 3-4 gearshift solenoid valve | 6J |
| Y3/6y5 | 2-3 gearshift solenoid valve | 6K |
| Y3/6y6 | Torque converter lockup clutch control solenoid valve | 6K |
