Adjusting shift rod - AR27.60-P-0980CW

TRANSMISSION 722.6/9 in MODEL 204, 207

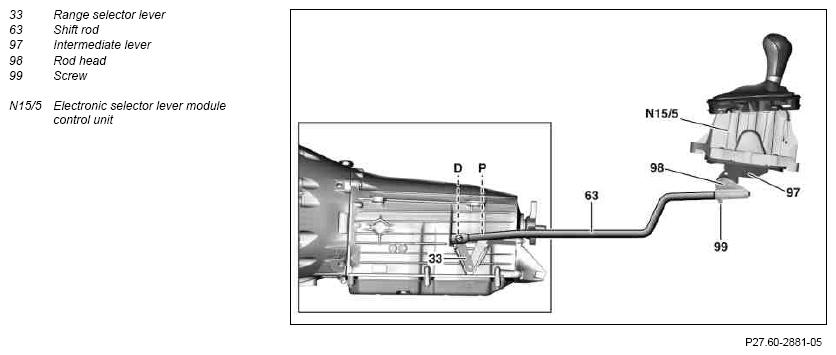

Fig 1: Adjusting Shift Rod

Courtesy of MERCEDES-BENZ USA

	Adjust
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Move selector lever to position "D".	Have a helper hold selector lever in position "D" throughout the entire adjustment work.
2	Loosen bolt (99)
3	Position range selector lever (33) in position (D)
4	Tighten bolt (99)	The vehicle must be horizontal, otherwise correct adjustment is not guaranteed and shift problems may occur. Press against rod head (98) to tighten. Do not twist shift rod (63) or rod head (98).
			*BA27.60-P-1001-04A
5	Perform function test
