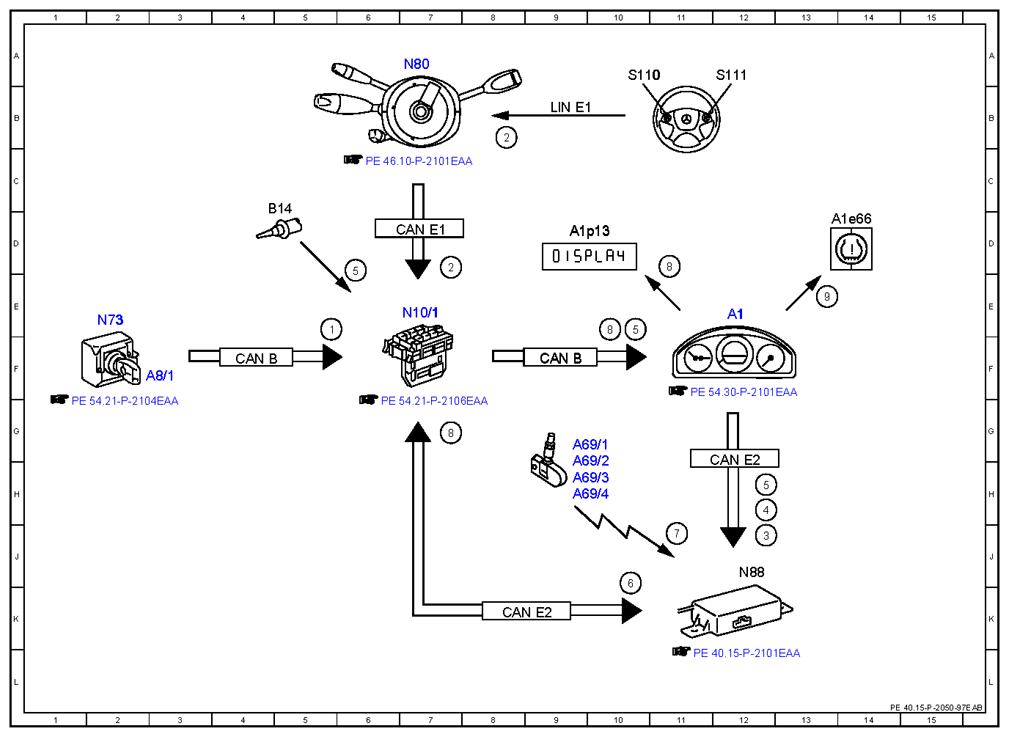

| 1 |
Circuit 15, status |
5E |
| 2 |
Multifunction steering wheel button group, signal |
7D |
| 2 |
Multifunction steering wheel button group, signal |
8B |
| 3 |
Activate tire pressure monitor, request |
12J |
| 4 |
Vehicle speed, signal |
12H |
| 5 |
Outside temperature, signal |
12H |
| 5 |
Outside temperature, signal |
6E |
| 5 |
Outside temperature, signal |
10E |
| 6 |
Variant coding, signal |
10J |
| 7 |
Tire pressure sensor, signal |
11J |
| 8 |
Tire pressure monitor, message |
7G |
| 8 |
Tire pressure monitor, message |
10E |
| 8 |
Tire pressure monitor, message |
11D |
| 9 |
Tire pressure monitor warning lamp, actuation |
13E |
| A1 |
Instrument cluster |
12E |
| A1e66 |
Tire pressure monitor warning lamp |
14D |
| A1p13 |
Multifunction display |
9D |
| A69/1 |
Left front tire pressure sensor |
9G |
| A69/2 |
Right front tire pressure sensor |
9H |
| A69/3 |
Left rear tire pressure sensor |
9H |
| A69/4 |
Right rear tire pressure sensor |
9H |
| A8/1 |
Transmitter key |
3F |
| B14 |
Outside temperature sensor |
5D |
| CAN B |
Interior CAN |
9F |
| CAN B |
Interior CAN |
4F |
| CAN E1 |
Chassis CAN 1 |
7D |
| CAN E2 |
Chassis CAN 2 |
8K |
| CAN E2 |
Chassis CAN 2 |
12H |
| LIN E1 |
Steering LIN |
9B |
| N10/1 |
Front SAM control unit with fuse and relay module |
7E |
| N73 |
Electronic ignition switch control unit |
2E |
| N80 |
Steering column module control unit |
7A |
| N88 |
Tire pressure monitor control unit |
12J |
| S110 |
Left multifunction steering wheel button group |
10A |
| S111 |
Right multifunction steering wheel button group |
12A |
