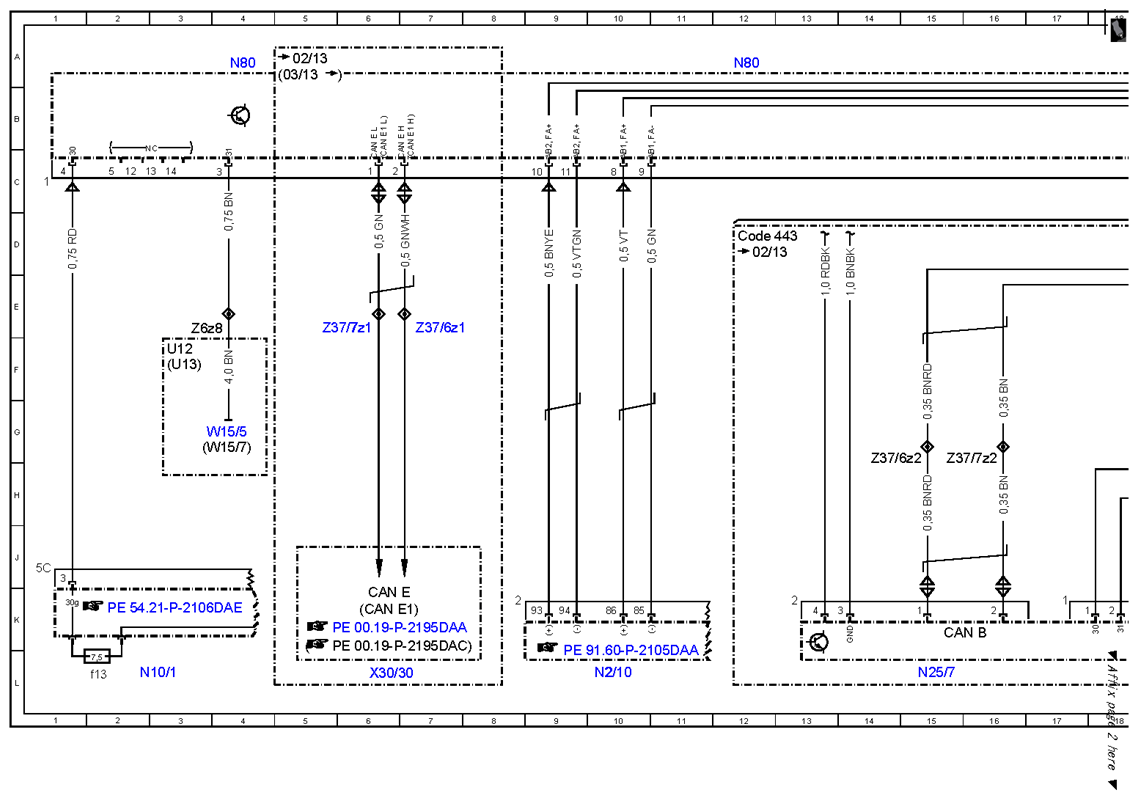

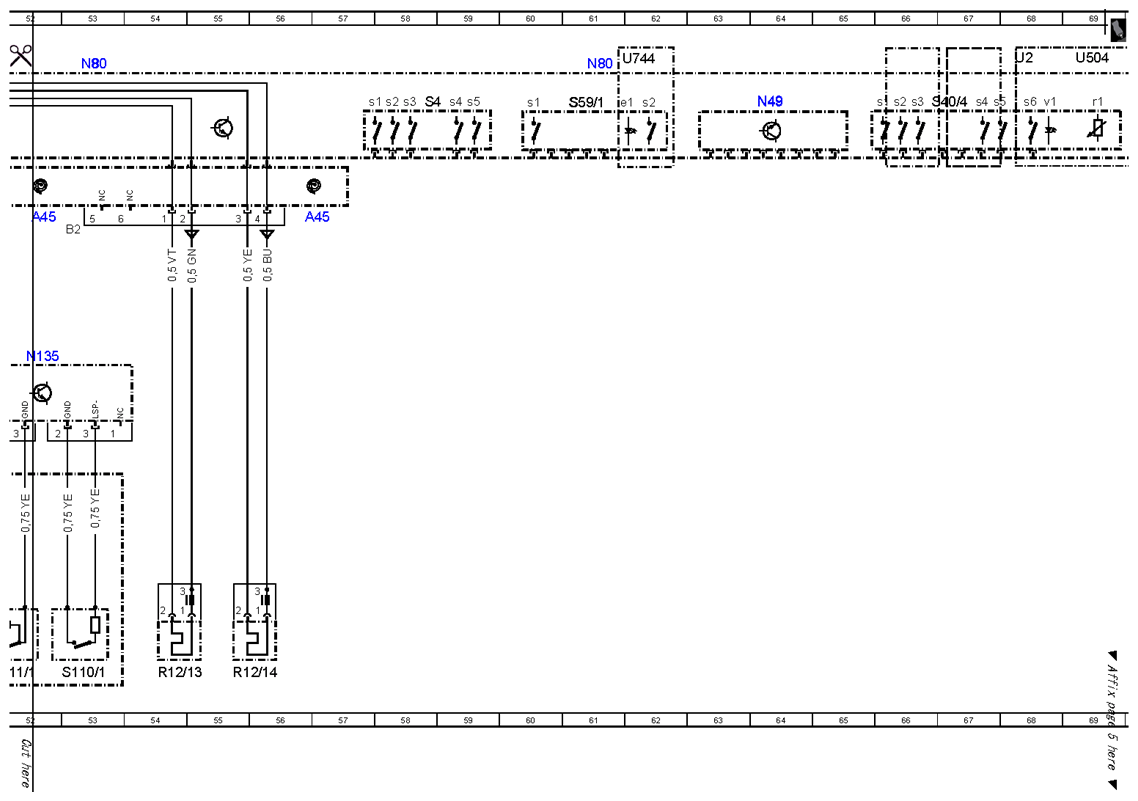

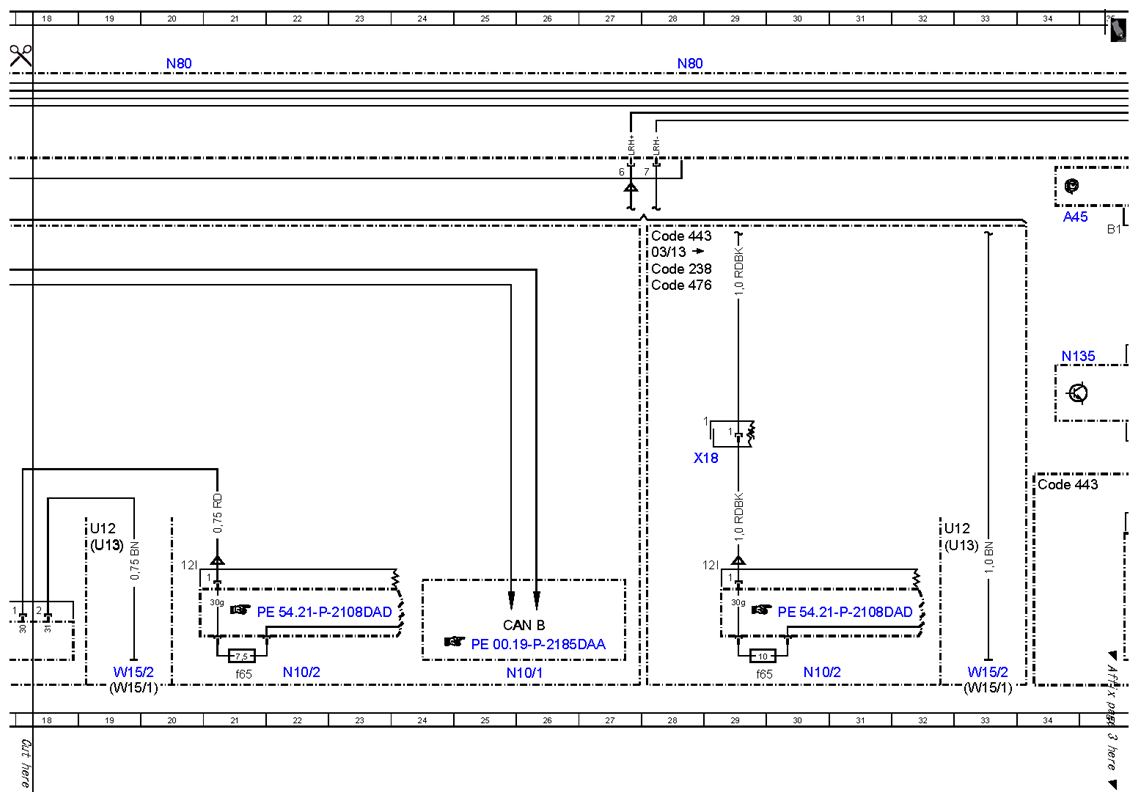

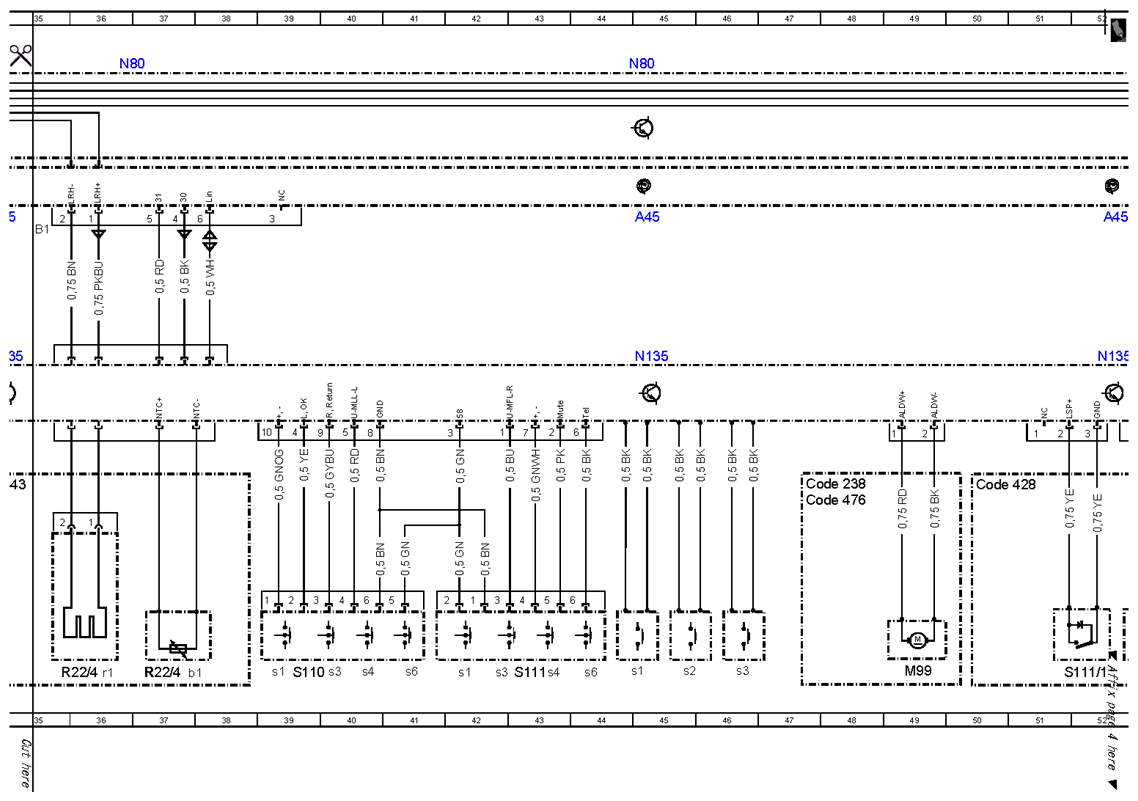

Wiring diagram for steering column module control unit - PE46.10-P-2101-97DAA
MODEL 212 Control unit N80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A45 | Fanfare horns and airbag clock spring contact | 45D |
| A45 | Fanfare horns and airbag clock spring contact | 34D |
| A45 | Fanfare horns and airbag clock spring contact | 52D |
| A45 | Fanfare horns and airbag clock spring contact | 57D |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 25K |
| CAN E | Chassis CAN | 6K |
| CAN E1 | Chassis CAN 1 | 6K |
| Code 238 | Active Lane Keeping Assist | 47H |
| Code 238 | Active Lane Keeping Assist | 28D |
| Code 428 | Steering wheel shift paddles | 50H |
| Code 443 | Steering wheel heater | 34H |
| Code 443 | Steering wheel heater | 12D |
| Code 443 | Steering wheel heater | 28D |
| Code 476 | Automatic lane detection | 28E |
| Code 476 | Automatic lane detection | 47H |
| M99 | Steering wheel vibration motor | 49L |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N10/1 | Front SAM control unit with fuse and relay module | 25L |
| N10/1f13 | Fuse 13 | 2L |
| N10/2 | Rear SAM control unit with fuse and relay module | 22L |
| N10/2 | Rear SAM control unit with fuse and relay module | 30L |
| N10/2f65 | Fuse 65 | 21L |
| N10/2f65 | Fuse 65 | 29L |
| N135 | Steering wheel electronics | 45F |
| N135 | Steering wheel electronics | 52F |
| N135 | Steering wheel electronics | 34F |
| N135s1 | Left fanfare horn system button | 44L |
| N135s2 | Right fanfare horn system button | 45L |
| N135s3 | Center horns button | 46L |
| N2/10 | Supplemental restraint system control unit | 10L |
| N25/7 | Steering wheel heater control unit | 15L |
| N49 | Steering angle sensor | 64B |
| N80 | Steering column module control unit | 4A |
| N80 | Steering column module control unit | 45A |
| N80 | Steering column module control unit | 61A |
| N80 | Steering column module control unit | 12A |
| N80 | Steering column module control unit | 20A |
| N80 | Steering column module control unit | 53A |
| N80 | Steering column module control unit | 28A |
| N80 | Steering column module control unit | 36A |
| N80 | Steering column module control unit | 71A |
| R12/13 | Driver airbag squib 1 | 54L |
| R12/14 | Driver airbag squib 2 | 55L |
| R22/4 | Steering wheel heater | 36L |
| R22/4 | Steering wheel heater | 37L |
| R22/4b1 | Heating element temperature sensor | 37L |
| R22/4r1 | Steering wheel heater heating element | 36L |
| S110 | Left multifunction steering wheel button group | 39L |
| S110/1 | Steering wheel downshift button | 53L |
| S110s1 | Scroll forward/back button | 39L |
| S110s3 | System selection button | 40L |
| S110s4 | "Back" and voice control system OFF button | 40L |
| S110s6 | OK button | 41L |
| S111 | Right multifunction steering wheel button group | 43L |
| S111/1 | Steering wheel upshift button | 52L |
| S111s1 | Buttons + and - for setting specific functions and volume control | 42L |
| S111s3 | Accept/terminate phone call button | 42L |
| S111s4 | Voice control system ON button | 43L |
| S111s6 | Mute button | 44L |
| S16/13 | DIRECT SELECT lever | 71B |
| S4 | Combination switch | 58B |
| S40/4 | Cruise control lever | 67B |
| S40/4r1 | DISTRONIC control | 69B |
| S40/4s1 | Resume from memory switch | 66B |
| S40/4s2 | Decelerate and set switch | 66B |
| S40/4s3 | Accelerate and set switch | 66B |
| S40/4s4 | OFF switch | 67B |
| S40/4s5 | Indicator switch | 67B |
| S40/4s6 | SPEEDTRONIC switch | 68B |
| S40/4v1 | SPEEDTRONIC light emitting diode | 68B |
| S4s1 | Turn signal lamps switch | 57B |
| S4s2 | Headlamp flasher/high beam switch | 58B |
| S4s3 | Low beam switch | 58B |
| S4s4 | Windshield washer system switch | 59B |
| S4s5 | Wipe switch | 59B |
| S59/1 | Steering column adjustment and steering wheel heater switch | 61B |
| S59/1e1 | Steering wheel heater indicator lamp | 61B |
| S59/1s1 | Steering column adjustment switch | 60B |
| S59/1s2 | Steering wheel heater switch | 62B |
| U12 | Valid for left-hand drive vehicles | 3F |
| U12 | Valid for left-hand drive vehicles | 19J |
| U12 | Valid for left-hand drive vehicles | 32J |
| U13 | Valid for right-hand drive vehicles | 3F |
| U13 | Valid for right-hand drive vehicles | 19J |
| U13 | Valid for right-hand drive vehicles | 32J |
| U2 | Valid for all except USA | 68A |
| U504 | Valid for DISTRONIC | 69A |
| U744 | Valid for steering wheel heater | 61A |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 70A |
| W15/1 | Right footwell ground point | 19L |
| W15/1 | Right footwell ground point | 33L |
| W15/2 | Left footwell ground point | 19L |
| W15/2 | Left footwell ground point | 33L |
| W15/5 | Left front footwell ground point | 4G |
| W15/7 | Right front footwell ground point | 4G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 29H |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 6L |
| Z37/6z1 | CAN bus high connector sleeve | 7E |
| Z37/6z2 | CAN bus high connector sleeve | 14G |
| Z37/7z1 | CAN bus low connector sleeve | 6E |
| Z37/7z2 | CAN bus low connector sleeve | 16G |
| Z6z8 | Circuit 31 connector sleeve | 3E |
