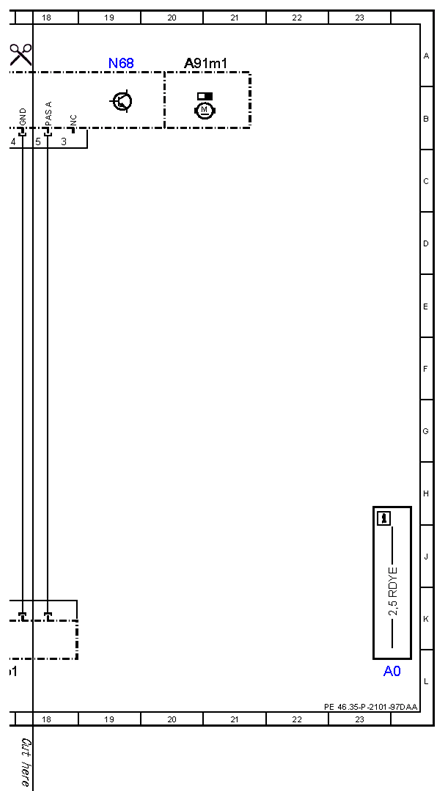

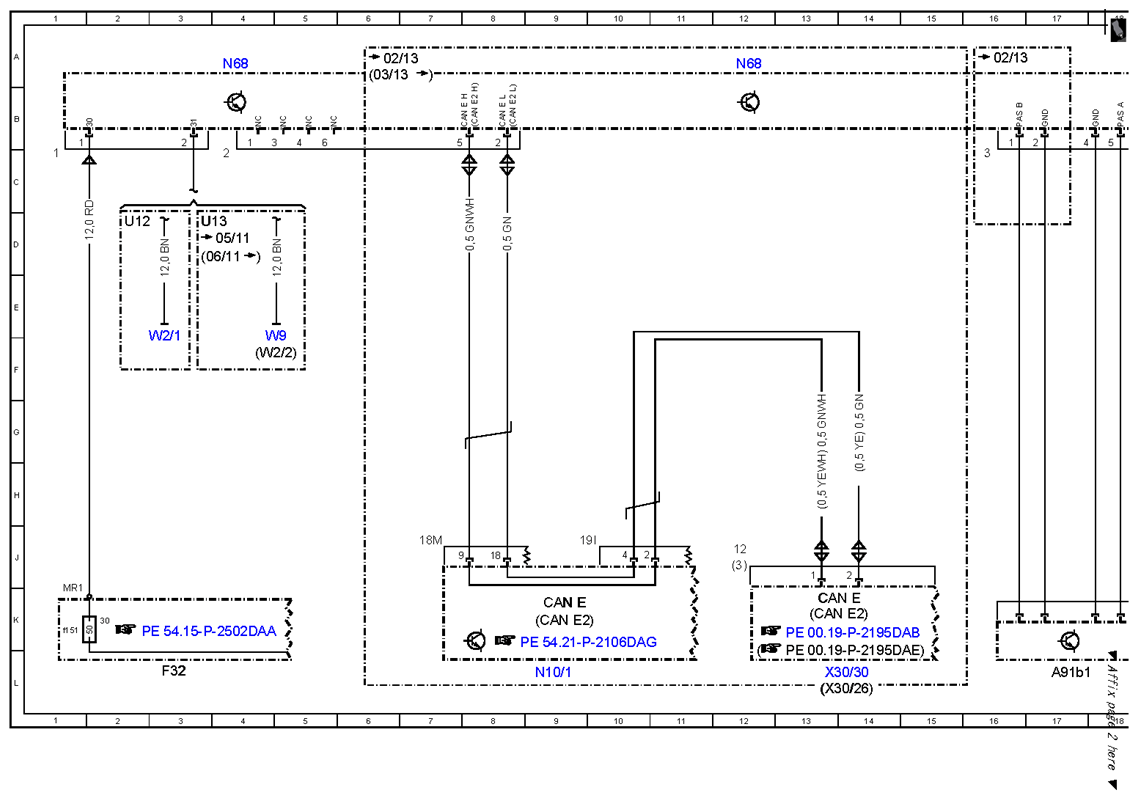

Wiring diagram for electric power steering control unit - PE46.35-P-2101-97DAA
MODEL 212 Control unit N68
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A91b1 | Electric power steering torque sensor | 17L |
| A91m1 | Electric power steering actuator motor | 20A |
| CAN E | Chassis CAN | 13K |
| CAN E | Chassis CAN | 9K |
| CAN E2 | Chassis CAN 2 | 9K |
| CAN E2 | Chassis CAN 2 | 13K |
| F32 | Front electrical prefuse box | 3L |
| F32f151 | Prefuse 151 | 1K |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| N68 | Electrical power steering control unit | 19A |
| U12 | Valid for left-hand drive vehicles | 2D |
| U13 | Valid for right-hand drive vehicles | 3D |
| W2/1 | Right front ground point | 3F |
| W2/2 | Left front ground point | 4F |
| W9 | Left front ground point (at lamp unit) | 4F |
| X30/26 | Vehicle floor chassis CAN 2 (CAN E2) potential distributor electrical connector | 13L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 13L |
