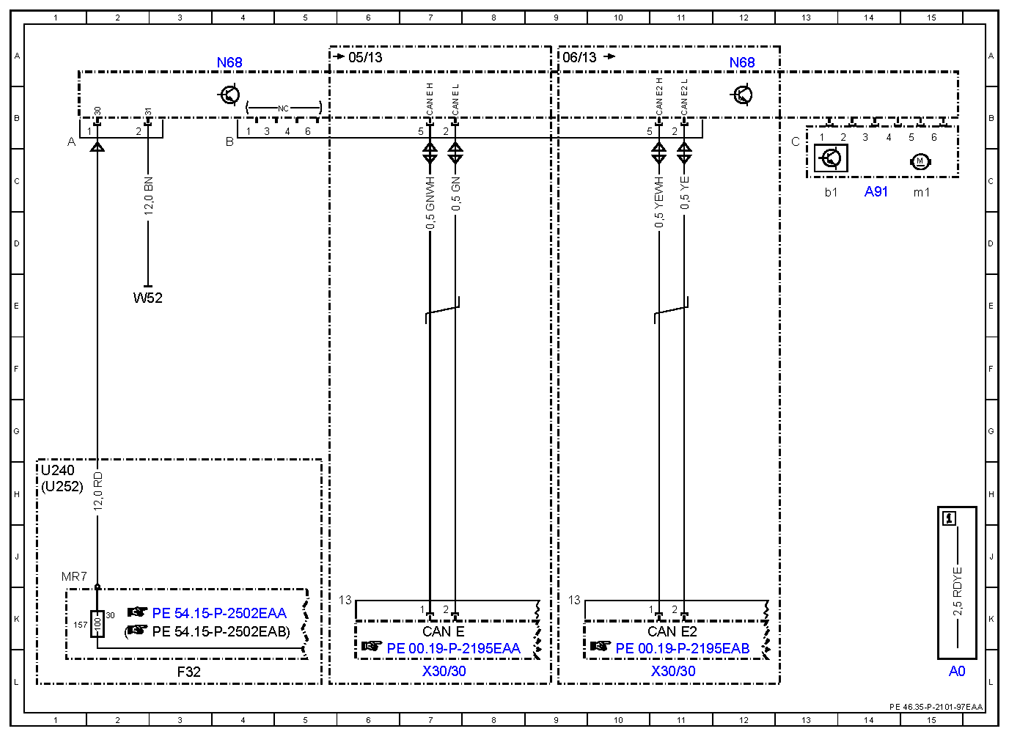

| A0 |
Color code key |
15L |
| A91 |
Electric power steering electromechanical controller unit |
14C |
| A91b1 |
Electric power steering torque sensor |
13C |
| A91m1 |
Electric power steering actuator motor |
15C |
| CAN E |
Chassis CAN |
7K |
| CAN E2 |
Chassis CAN 2 |
11K |
| F32 |
Front electrical prefuse box |
3L |
| F32f157 |
Prefuse 157 |
1K |
| N68 |
Electrical power steering control unit |
4A |
| N68 |
Electrical power steering control unit |
12A |
| U240 |
Valid for all except ECO start/stop function |
1H |
| U252 |
Valid for ECO start/stop function |
1H |
| W52 |
Ground (right front longitudinal member) |
2E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
7L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
11L |
