Remove/install track rod - AR46.40-P-0200CW
MODEL 172, 204, 207
| Remove/install | |||
| 1 | Remove left or right front wheel | ||
| MODEL 172 | AP40.10-P-4050V | ||
| MODEL 204, 207 | AP40.10-P-4050CW | ||
| 2.1 | Remove both lower engine compartment paneling | MODEL 204.9 | |
| AR61.20-P-1105CY | |||
| 2.2 | Remove engine compartment paneling | Vehicles with gasoline engine | |
| Model 204, 207 | AR61.20-P-1105EW | ||
| Model 172 | AR61.20-P-1105W | ||
| 2.3 | Remove bottom sections of soundproofing | Vehicles with diesel engine | |
| Model 204, 207 | AR94.30-P-5300EW | ||
| Model 172 | AR94.30-P-5300W | ||

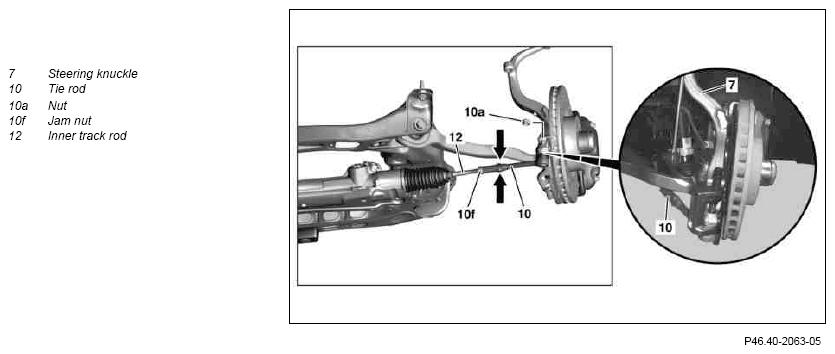

| 3 | Counterhold tie rod (10) and loosen jam nut (10f) | MODEL 172 |
*BA46.40-P-1002-01E |
MODEL 204, 207 |
*BA46.40-P-1002-01N | ||
| 4 | Detach tie rod (10) from steering knuckle (7) | AR46.40-P-0200-02CW | |
MODEL 172 |
*BA46.40-P-1001-01E | ||
MODEL 204, 207 |
*BA46.40-P-1001-01N | ||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 5 | Unscrew tie rod (10) from inner tie rod (12) | ||
| 6 | Install in the reverse order | ||
| 7 | Perform wheel alignment check | MODEL 204 | AR40.20-P-0200CW |
| MODEL 172, 207 | AR40.20-P-0200EW |
TIE ROD
| Number | Designation | MODEL 172 | |
|---|---|---|---|
| BA46.40-P-1002-01E | Lock nut, tie rod to inner tie rod | Nm | 65 |
TIE ROD
| Number | Designation | MODEL 204 | MODEL 207 | ||
|---|---|---|---|---|---|
| BA46.40-P-1001-01N | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 60 | 60 | ||
TIE ROD
| Number | Designation | MODEL 204 | MODEL 207 | |
|---|---|---|---|---|
| BA46.40-P-1002-01N | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
TIE ROD
| Number | Designation | MODEL 172 | ||
|---|---|---|---|---|
| BA46.40-P-1001-01E | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 60 | ||
