| A0 |
Color code key |
23L |
| A76 |

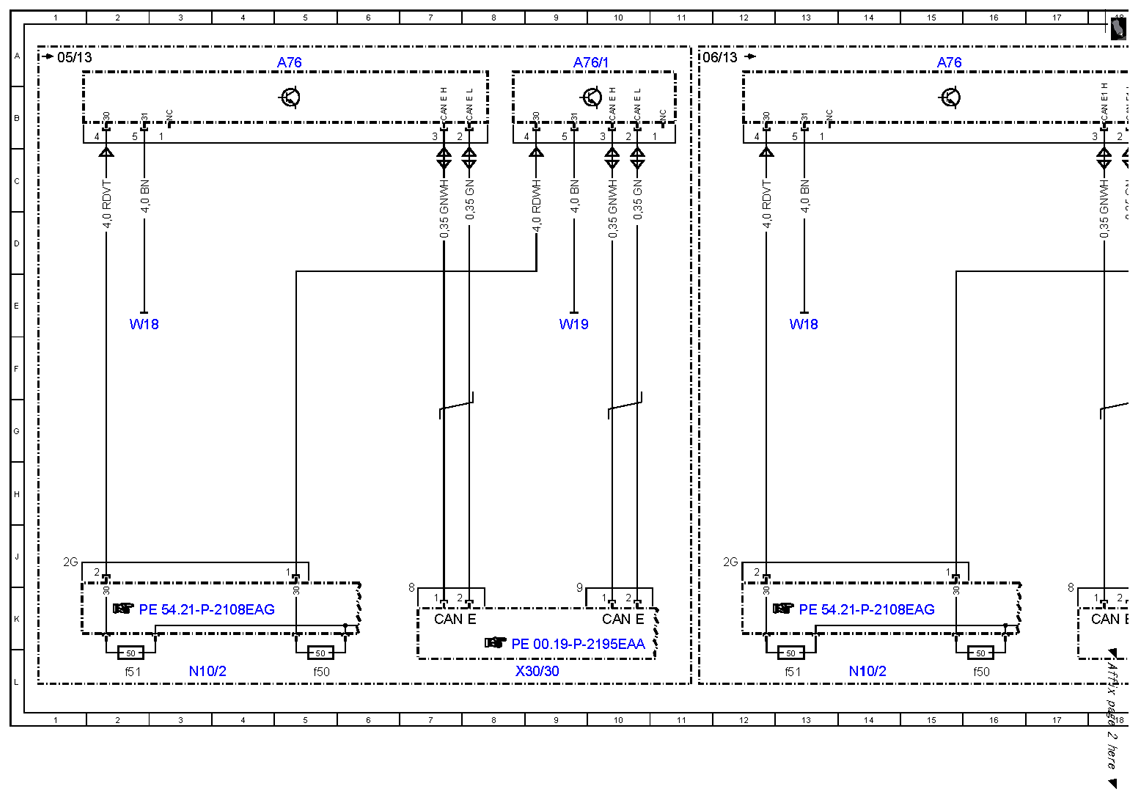

Left front reversible emergency tensioning retractor |
5A |
| A76 |
Left front reversible emergency tensioning retractor |
15A |
| A76/1 |

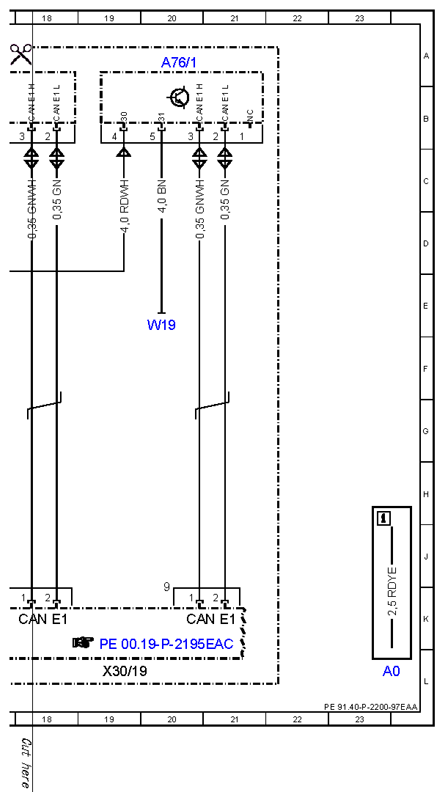

Right front reversible emergency tensioning retractor |
9A |
| A76/1 |
Right front reversible emergency tensioning retractor |
20A |
| CAN E |
Chassis CAN |
7K |
| CAN E |
Chassis CAN |
10K |
| CAN E1 |
Chassis CAN 1 |
18K |
| CAN E1 |
Chassis CAN 1 |
20K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
14L |
| N10/2f50 |
Fuse 50 |
5L |
| N10/2f50 |
Fuse 50 |
16L |
| N10/2f51 |
Fuse 51 |
2L |
| N10/2f51 |
Fuse 51 |
13L |
| W18 |
Left front seat crossmember ground point |
2E |
| W18 |
Left front seat crossmember ground point |
13E |
| W19 |
Right front seat crossmember ground point |
9E |
| W19 |
Right front seat crossmember ground point |
20E |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
19L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
9L |
