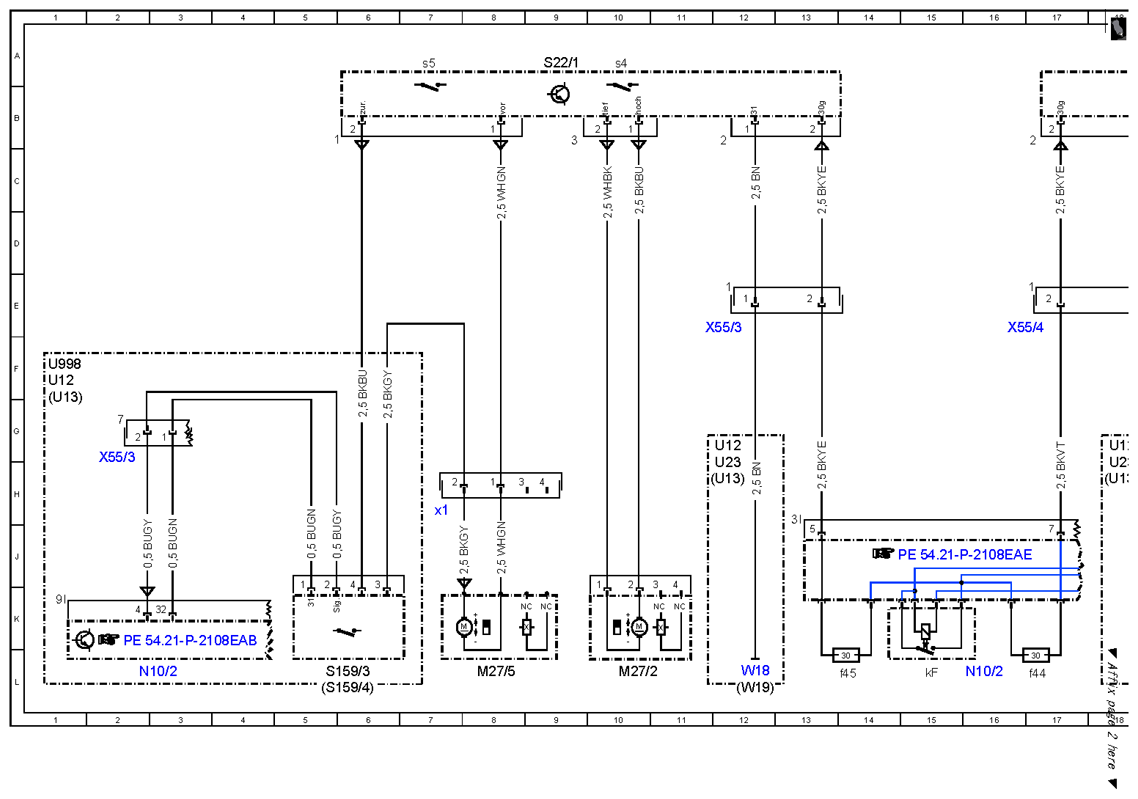

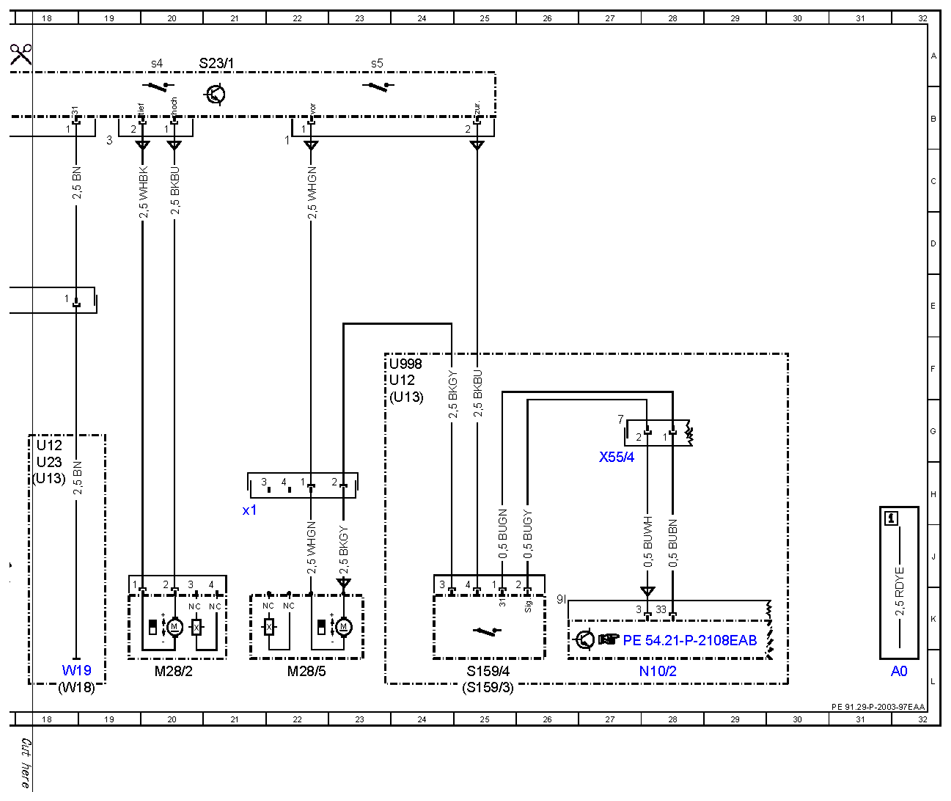

| A0 |
Color code key |
32L |
| M27/2 |
Driver seat height adjustment motor |
10L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
8L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
7H |
| M28/2 |
Front passenger seat height adjustment motor |
20L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
22L |
| M28/5x1 |
Seat backrest inclination adjustment motor electrical connector, front passenger seat |
21H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
16L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
28L |
| N10/2f44 |
Fuse 44 |
17L |
| N10/2f45 |
Fuse 45 |
14L |
| N10/2kF |
Seat adjustment relay |
15L |
| S159/3 |
Left EASY-ENTRY system limit switch |
6L |
| S159/3 |
Left EASY-ENTRY system limit switch |
25L |
| S159/4 |
Right EASY-ENTRY system limit switch |
25L |
| S159/4 |
Right EASY-ENTRY system limit switch |
5L |
| S22/1 |
Driver seat partially electric seat adjustment switch |
9A |
| S22/1s4 |
Driver seat height adjustment switch |
10A |
| S22/1s5 |
Driver seat backrest adjustment switch |
7A |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
21A |
| S23/1s4 |
Front passenger seat height adjustment switch |
20A |
| S23/1s5 |
Front passenger seat backrest adjustment switch |
23A |
| U12 |
Valid for left-hand drive vehicles |
12G |
| U12 |
Valid for left-hand drive vehicles |
18G |
| U12 |
Valid for left-hand drive vehicles |
1F |
| U12 |
Valid for left-hand drive vehicles |
23F |
| U13 |
Valid for right-hand drive vehicles |
11H |
| U13 |
Valid for right-hand drive vehicles |
18H |
| U13 |
Valid for right-hand drive vehicles |
1G |
| U13 |
Valid for right-hand drive vehicles |
23G |
| U23 |
Valid for convertibles |
12H |
| U23 |
Valid for convertibles |
18H |
| U998 |
Valid for EASY-ENTRY |
1F |
| U998 |
Valid for EASY-ENTRY |
23F |
| W18 |
Left front seat crossmember ground point |
12L |
| W18 |
Left front seat crossmember ground point |
18L |
| W19 |
Right front seat crossmember ground point |
12L |
| W19 |
Right front seat crossmember ground point |
18L |
| X55/3 |
Driver seat connector block |
2H |
| X55/3 |
Driver seat connector block |
12E |
| X55/4 |
Front passenger seat connector block |
17E |
| X55/4 |
Front passenger seat connector block |
27H |
