Wiring diagram of automatic air conditioning (AAC) control unit - PE83.40-P-2101-97DAD

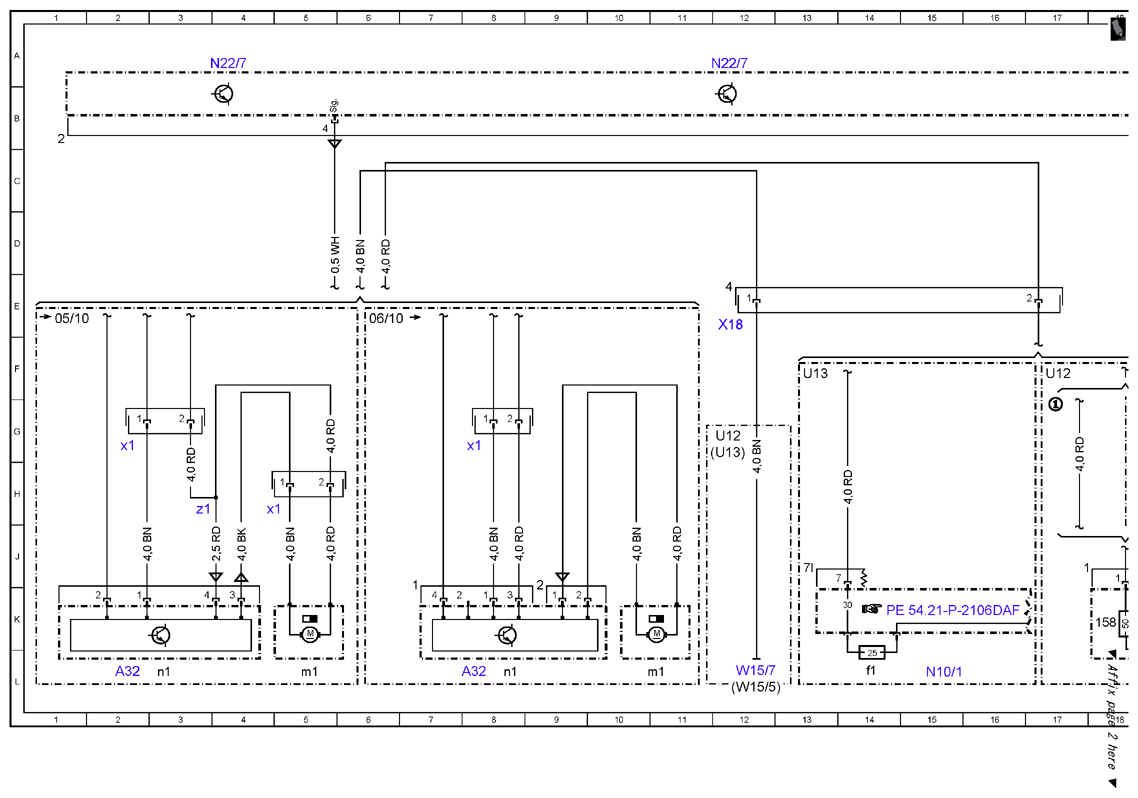

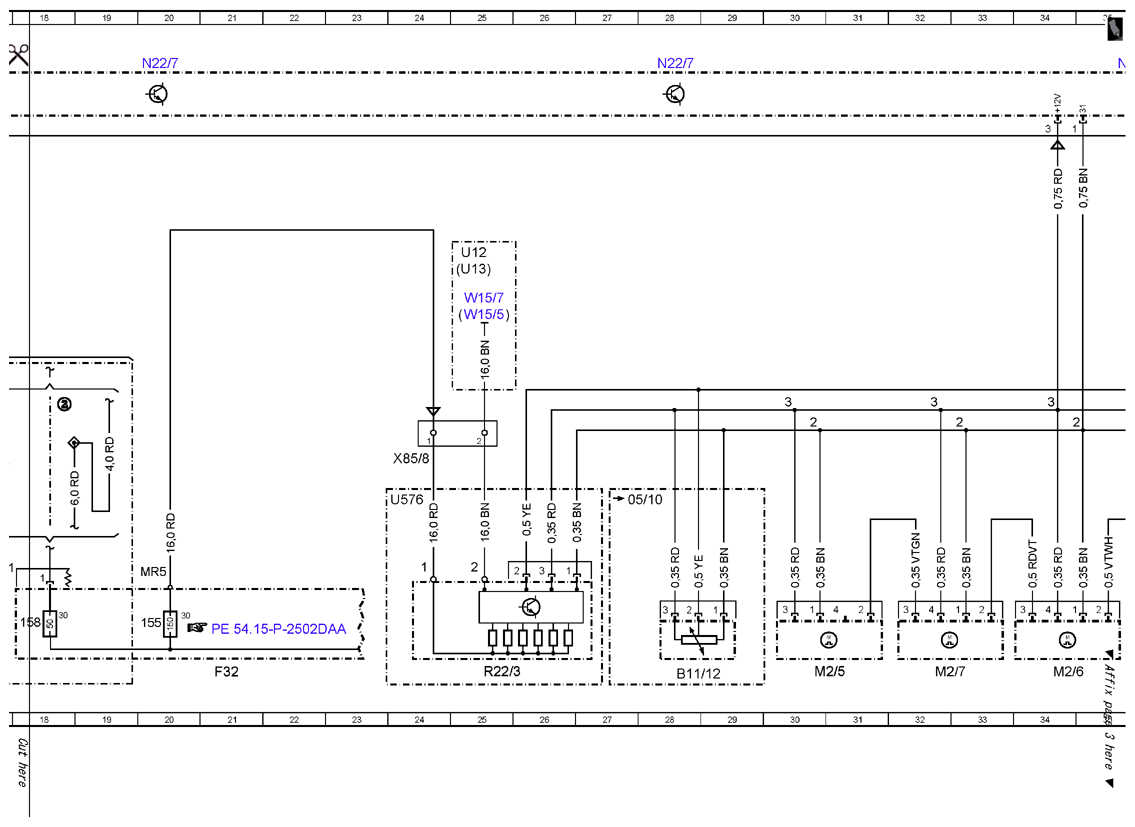

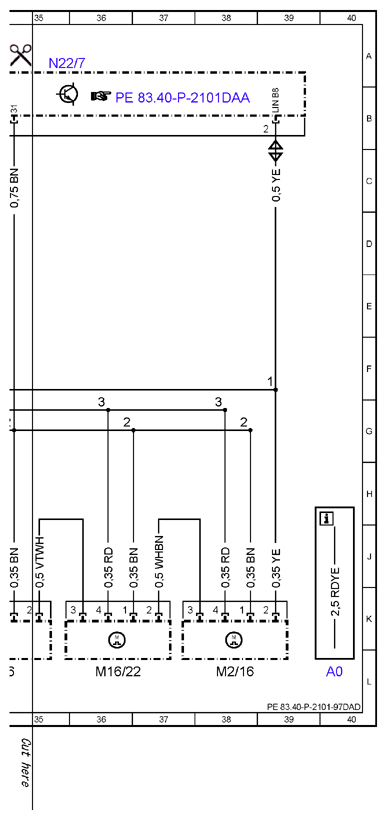

MODEL 212 Except CODE 581 (Automatic Air Conditioning) Control Unit N22/7, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A32 | AC housing | 2L |
| A32 | AC housing | 8L |
| A32m1 | Blower motor | 5L |
| A32m1 | Blower motor | 11L |
| A32m1x1 | Blower motor electrical connector | 4H |
| A32n1 | Blower regulator | 3L |
| A32n1 | Blower regulator | 8L |
| A32x1 | Air conditioner housing electrical connector | 2G |
| A32x1 | Air conditioner housing electrical connector | 8G |
| A32z1 | Air conditioner housing connector sleeve | 3H |
| B11/12 | Dew point sensor | 28L |
| F32 | Front electrical prefuse box | 21L |
| F32 | Front electrical prefuse box | 21L |
| F32f155 | Prefuse 155 | 20K |
| F32f158 | Prefuse 158 | 18K |
| M16/22 | Air distribution flap actuator motor | 36L |
| M2/16 | Defroster vent flap actuator motor | 38L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 30L |
| M2/6 | Left blending air flap actuator | 34L |
| M2/7 | Right blending air flap actuator | 32L |
| N10/1 | Front SAM control unit with fuse and relay module | 15L |
| N10/1f1 | Fuse 1 | 14L |
| N22/7 | Automatic air conditioning control and operating unit | 4A |
| N22/7 | Automatic air conditioning control and operating unit | 20A |
| N22/7 | Automatic air conditioning control and operating unit | 28A |
| N22/7 | Automatic air conditioning control and operating unit | 35A |
| N22/7 | Automatic air conditioning control and operating unit | 12A |
| R22/3 | PTC heater booster | 25L |
| U12 | Valid for left-hand drive vehicles | 25D |
| U12 | Valid for left-hand drive vehicles | 17F |
| U12 | Valid for left-hand drive vehicles | 12G |
| U13 | Valid for right-hand drive vehicles | 25D |
| U13 | Valid for right-hand drive vehicles | 13F |
| U13 | Valid for right-hand drive vehicles | 11G |
| U576 | Valid for heater booster | 24H |
| W15/5 | Left front footwell ground point | 25E |
| W15/5 | Left front footwell ground point | 12L |
| W15/7 | Right front footwell ground point | 25E |
| W15/7 | Right front footwell ground point | 12L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 12E |
| X85/8 | PTC heater booster electrical connector | 24H |
