Location and assignment of line and plug connectors, trunk, right - GF00.19-P-1000-07DAA

MODEL 212

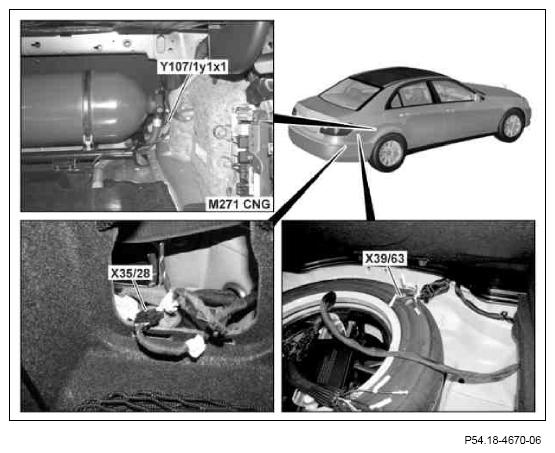

Fig 1: Right Trunk Line And Plug Connectors Location (1 Of 4)

Courtesy of MERCEDES-BENZ USA

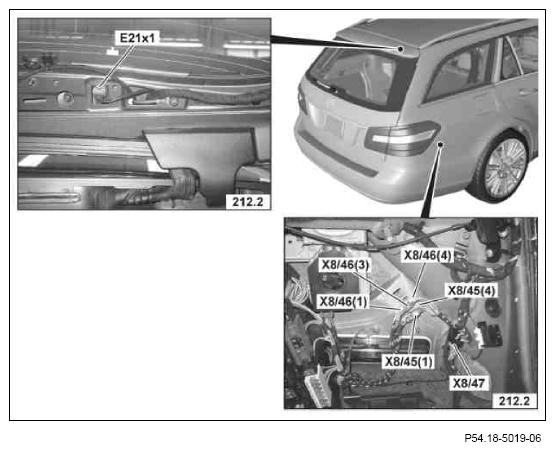

Fig 2: Right Trunk Line And Plug Connectors Location (2 Of 4)

Courtesy of MERCEDES-BENZ USA

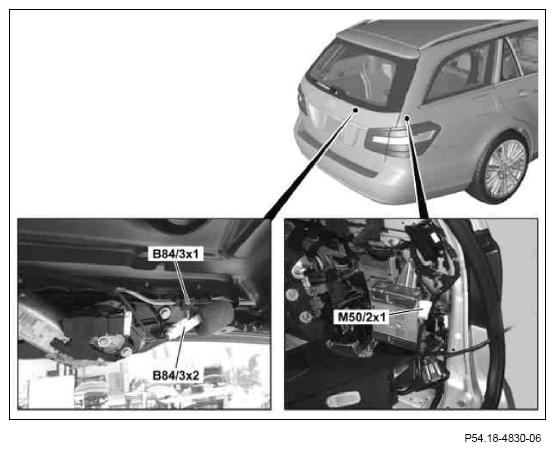

Fig 3: Right Trunk Line And Plug Connectors Location (3 Of 4)

Courtesy of MERCEDES-BENZ USA

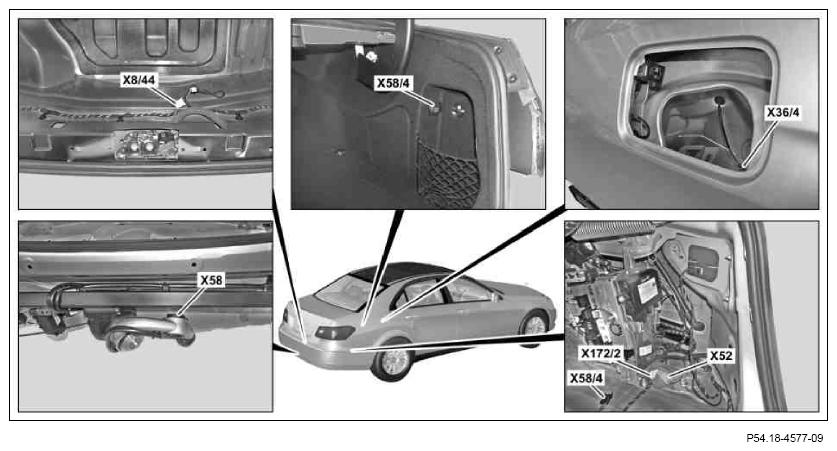

Fig 4: Right Trunk Line And Plug Connectors Location (4 Of 4)

Courtesy of MERCEDES-BENZ USA
