Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05DAA

MODEL 212

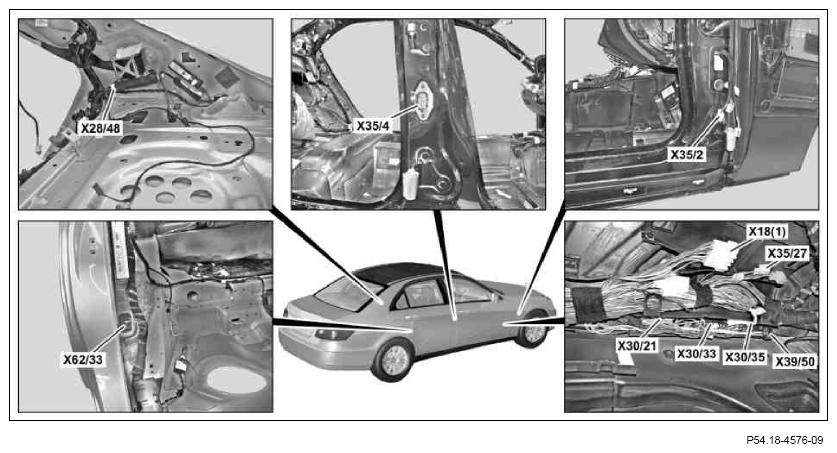

Fig 1: Right Interior Compartment Line And Plug Connectors Location (1 Of 6)

Courtesy of MERCEDES-BENZ USA

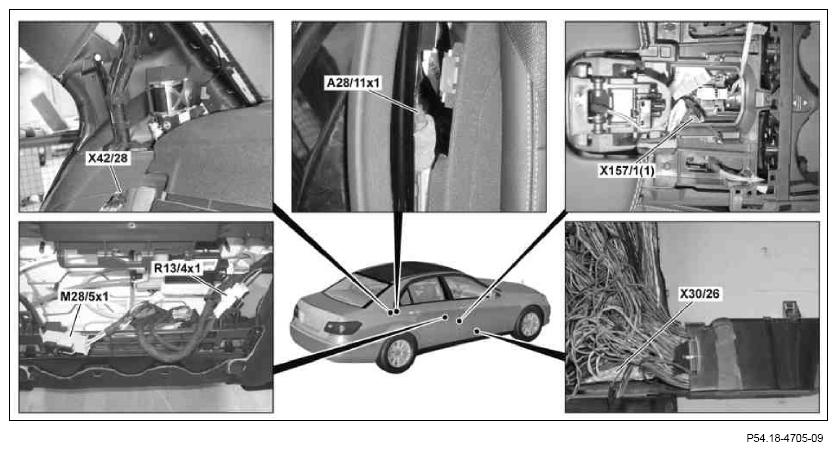

Fig 2: Right Interior Compartment Line And Plug Connectors Location (2 Of 6)

Courtesy of MERCEDES-BENZ USA

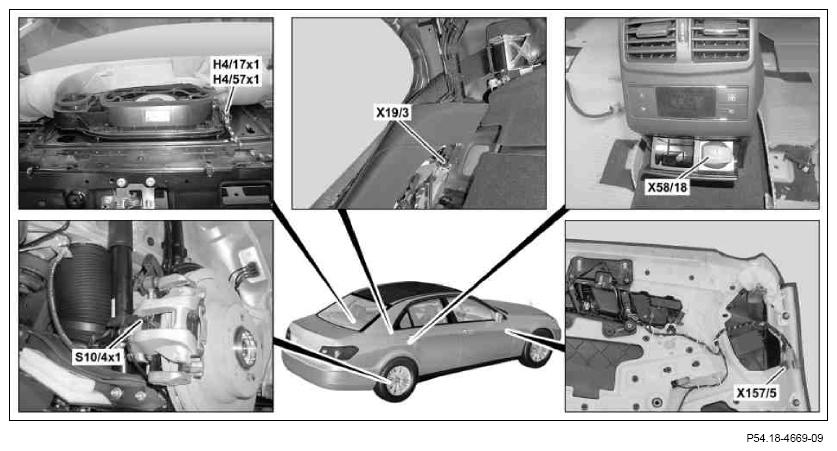

Fig 3: Right Interior Compartment Line And Plug Connectors Location (3 Of 6)

Courtesy of MERCEDES-BENZ USA

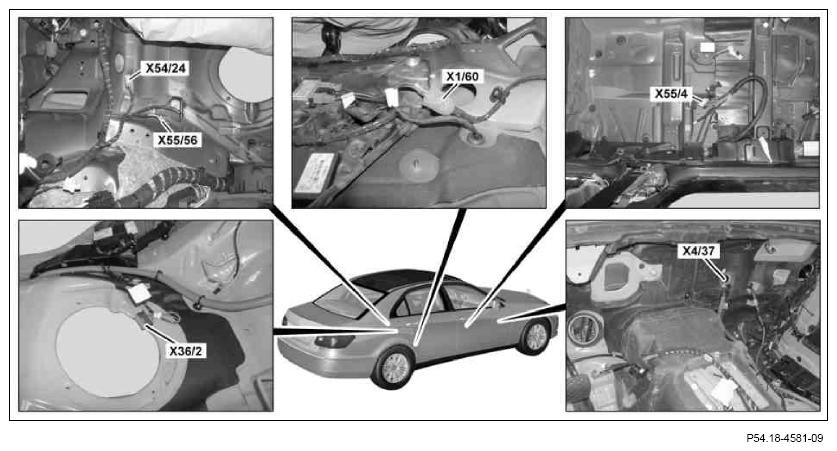

Fig 4: Right Interior Compartment Line And Plug Connectors Location (4 Of 6)

Courtesy of MERCEDES-BENZ USA

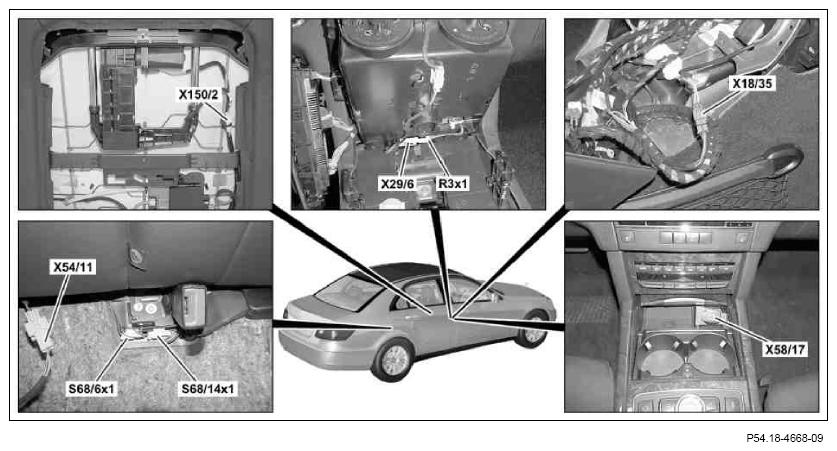

Fig 5: Right Interior Compartment Line And Plug Connectors Location (5 Of 6)

Courtesy of MERCEDES-BENZ USA

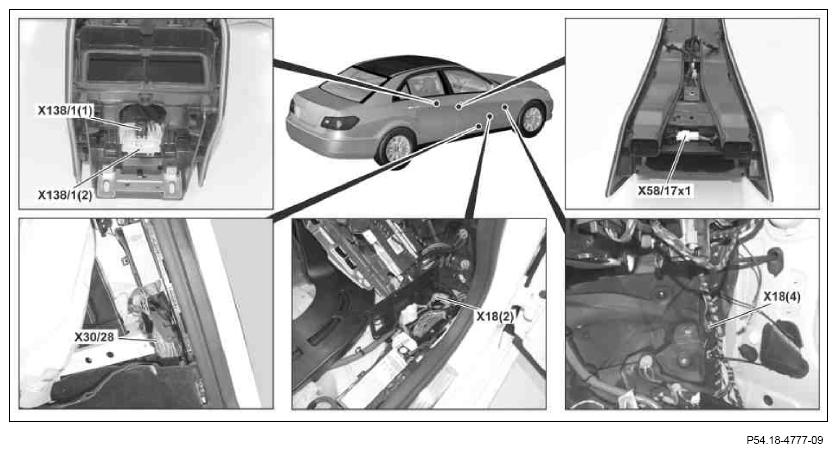

Fig 6: Right Interior Compartment Line And Plug Connectors Location (6 Of 6)

Courtesy of MERCEDES-BENZ USA
