Location and assignment of line and plug connectors, cockpit - GF00.19-P-1000-03DAA

MODEL 212

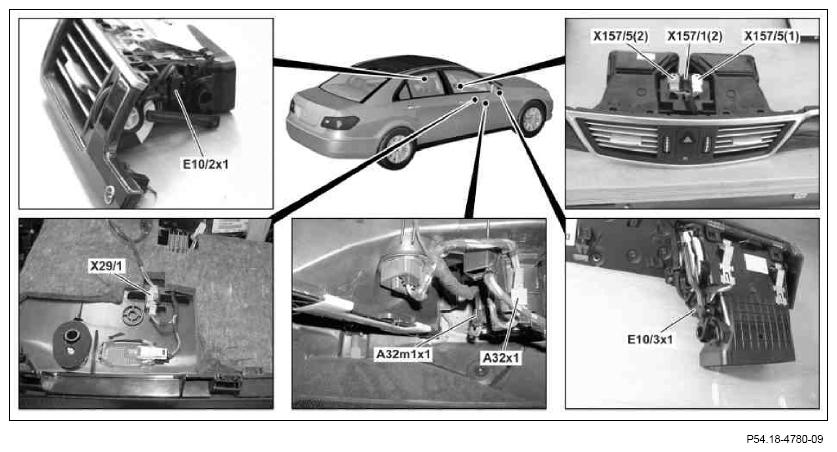

Fig 1: Cockpit Line And Plug Connectors Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

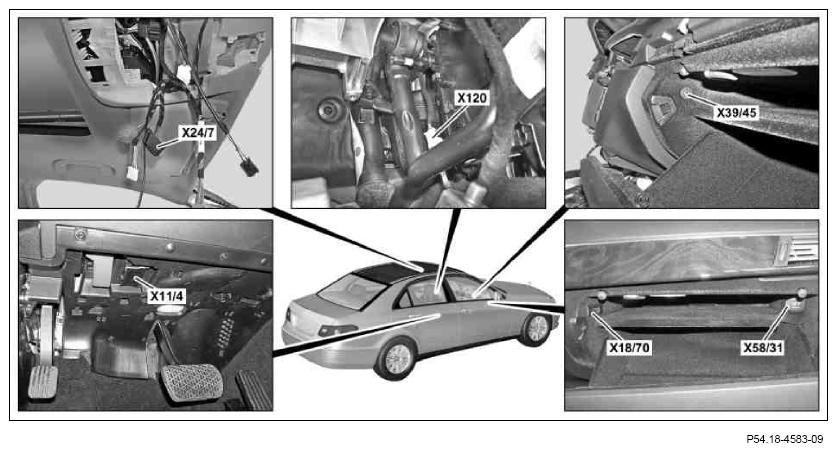

Fig 2: Cockpit Line And Plug Connectors Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

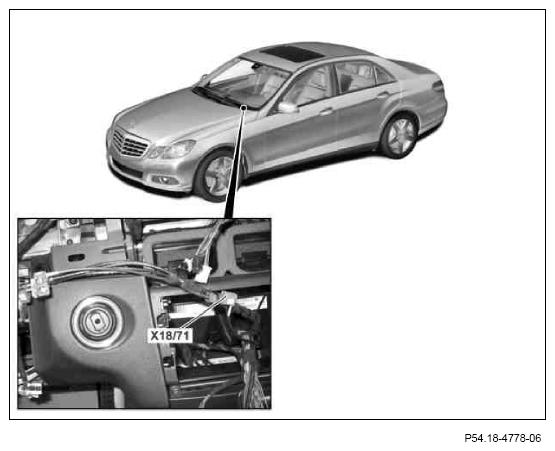

Fig 3: Cockpit Line And Plug Connectors Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
