Location and assignment of line and plug connectors, trunk, right - GF00.19-P-1000-07EAA

MODEL 207

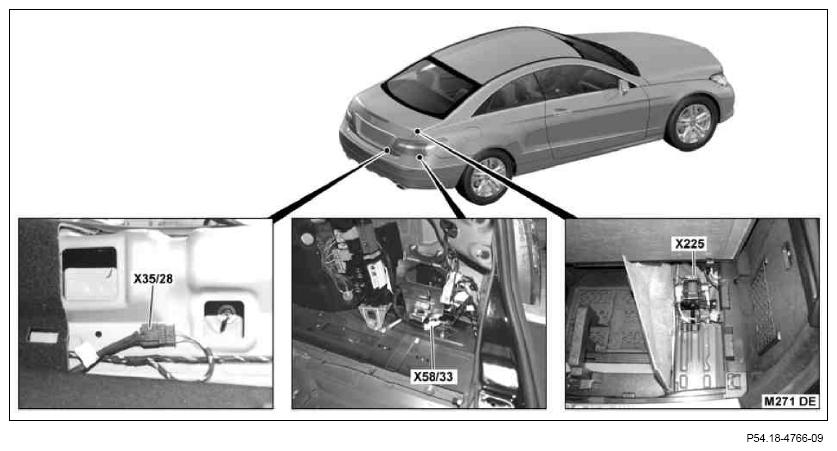

Fig 1: Right Trunk Line And Plug Connectors Location (1 Of 2)
G10081519Courtesy of MERCEDES-BENZ USA

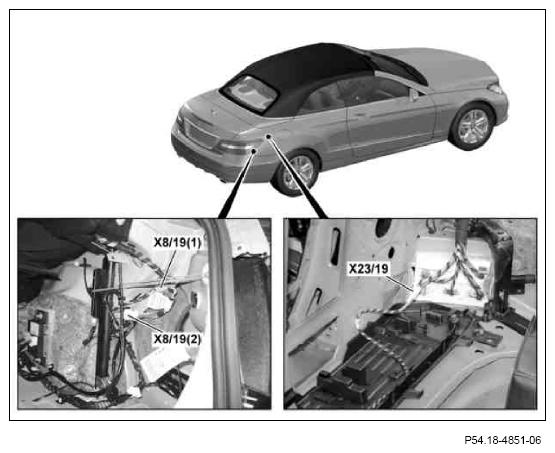

Fig 2: Right Trunk Line And Plug Connectors Location (2 Of 2)
G10081520Courtesy of MERCEDES-BENZ USA
