Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05EAA

MODEL 207

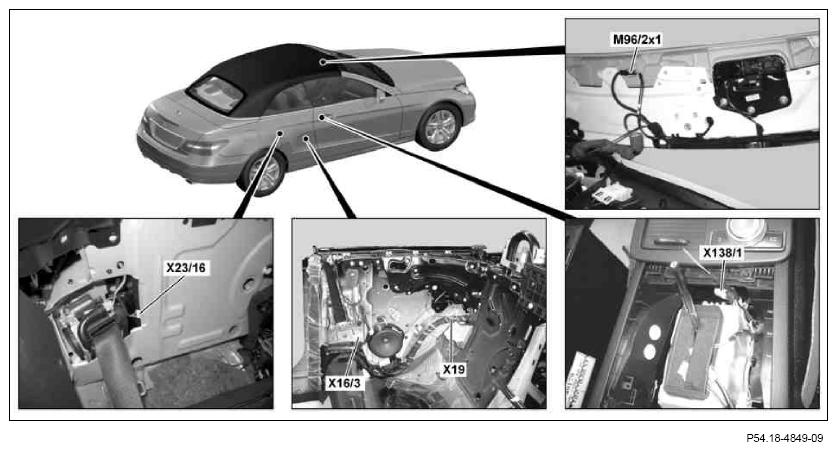

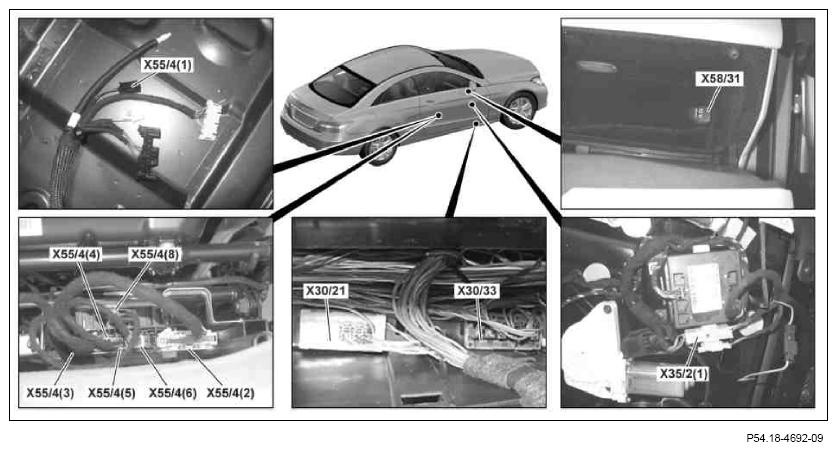

Fig 1: Right Interior Compartment Line And Plug Connectors Location (1 Of 10)

Courtesy of MERCEDES-BENZ USA

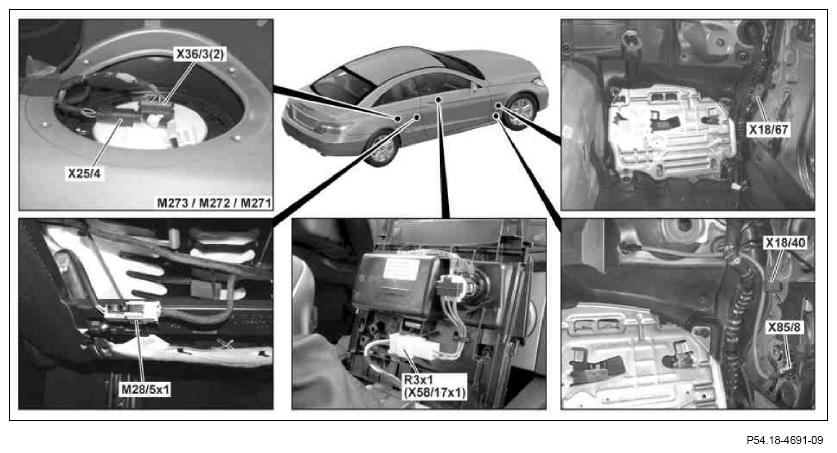

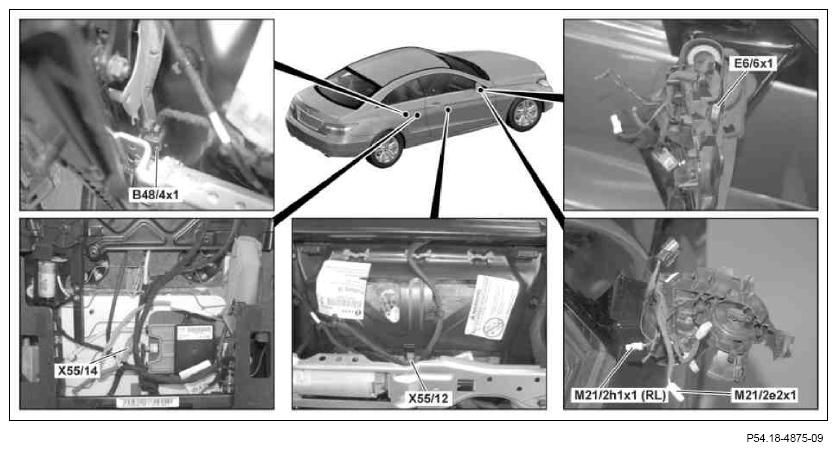

Fig 2: Right Interior Compartment Line And Plug Connectors Location (2 Of 10)

Courtesy of MERCEDES-BENZ USA

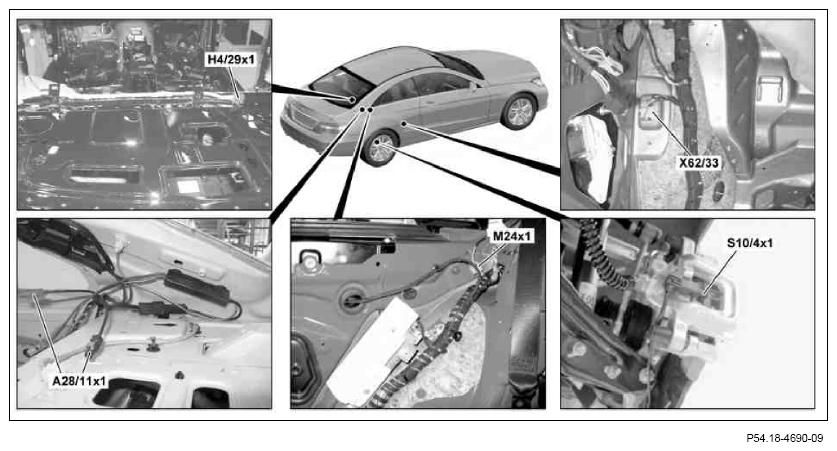

Fig 3: Right Interior Compartment Line And Plug Connectors Location (3 Of 10)

Courtesy of MERCEDES-BENZ USA

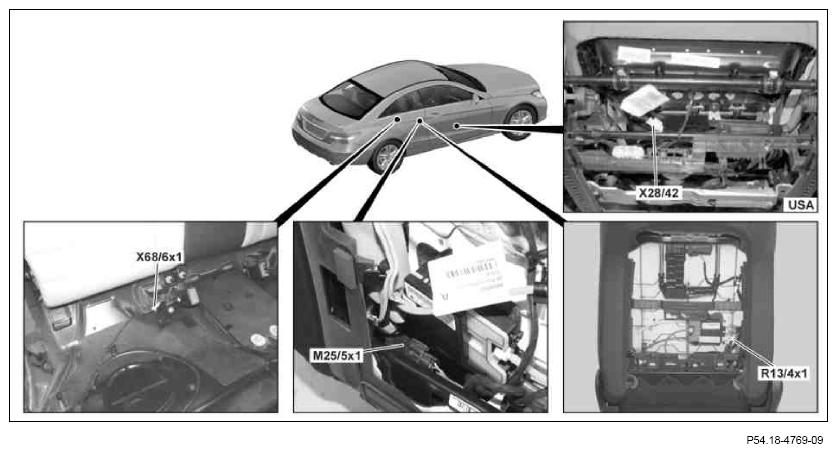

Fig 4: Right Interior Compartment Line And Plug Connectors Location (4 Of 10)

Courtesy of MERCEDES-BENZ USA

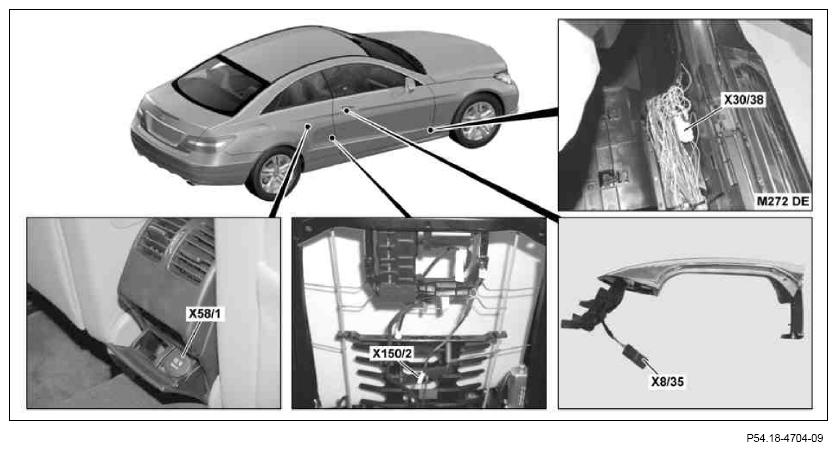

Fig 5: Right Interior Compartment Line And Plug Connectors Location (5 Of 10)

Courtesy of MERCEDES-BENZ USA

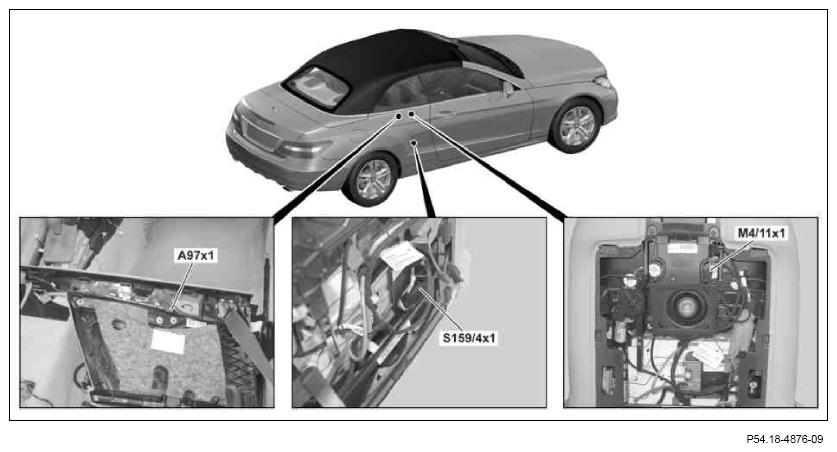

Fig 6: Right Interior Compartment Line And Plug Connectors Location (6 Of 10)

Courtesy of MERCEDES-BENZ USA

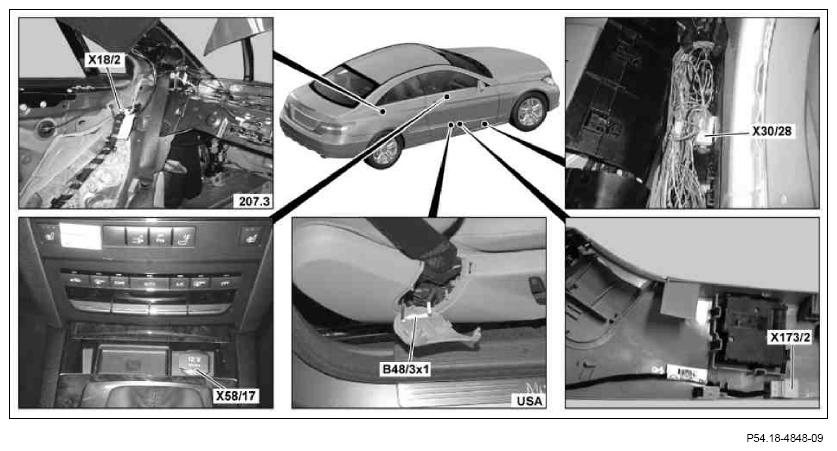

Fig 7: Right Interior Compartment Line And Plug Connectors Location (7 Of 10)

Courtesy of MERCEDES-BENZ USA

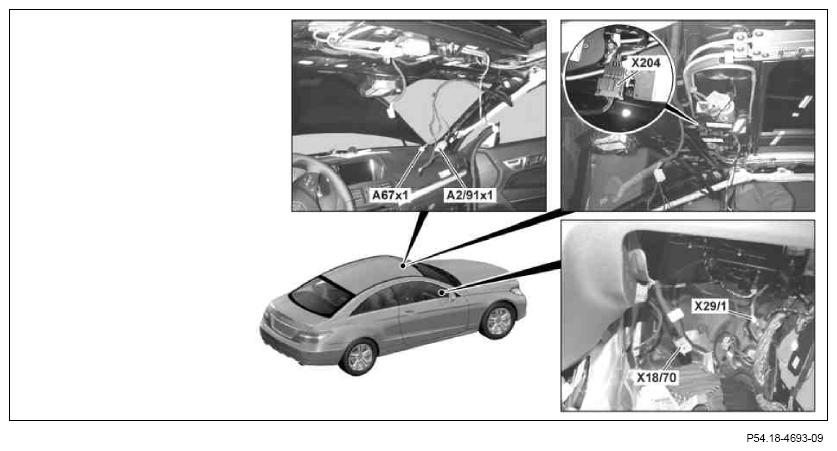

Fig 8: Right Interior Compartment Line And Plug Connectors Location (8 Of 10)

Courtesy of MERCEDES-BENZ USA

Fig 9: Right Interior Compartment Line And Plug Connectors Location (9 Of 10)

Courtesy of MERCEDES-BENZ USA

Fig 10: Right Interior Compartment Line And Plug Connectors Location (10 Of 10)

Courtesy of MERCEDES-BENZ USA
