Location and assignment of line and plug connectors, interior compartment, left - GF00.19-P-1000-04EAA

MODEL 207

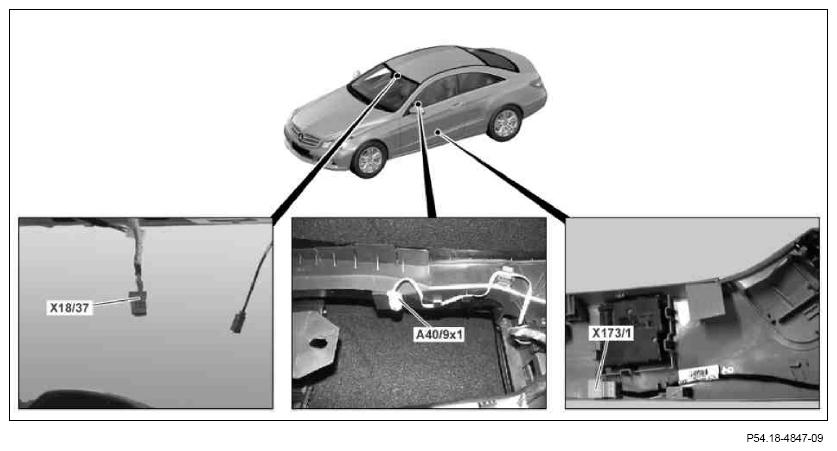

Fig 1: Left Interior Compartment Line And Plug Connectors Location (1 Of 8)

Courtesy of MERCEDES-BENZ USA

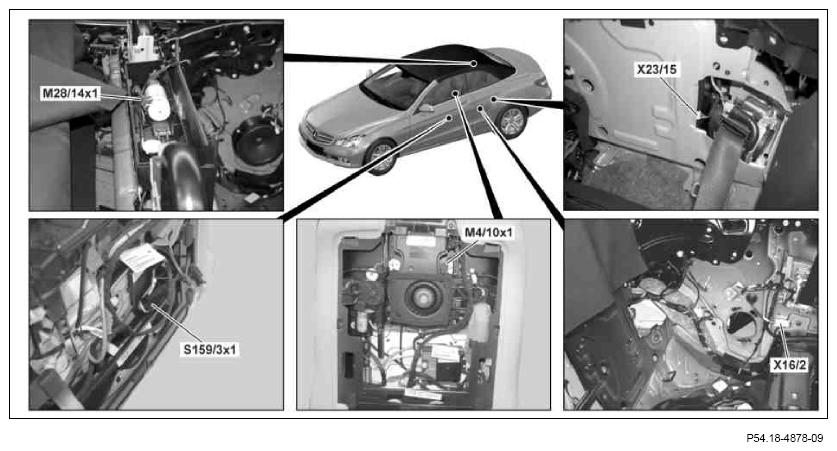

Fig 2: Left Interior Compartment Line And Plug Connectors Location (2 Of 8)

Courtesy of MERCEDES-BENZ USA

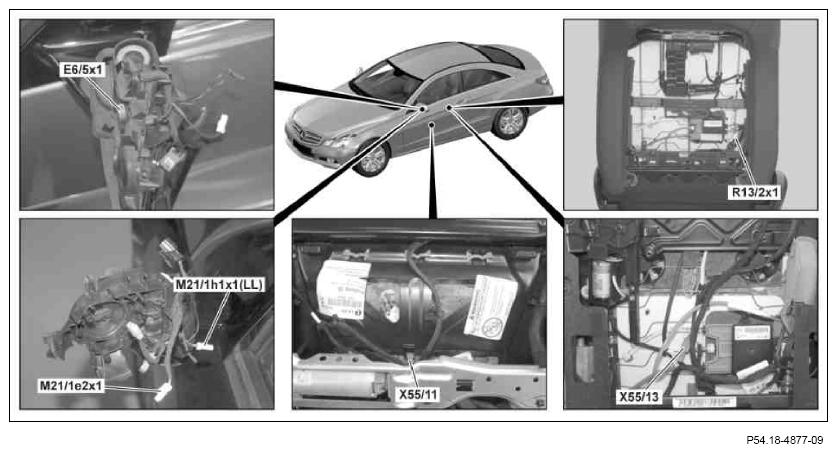

Fig 3: Left Interior Compartment Line And Plug Connectors Location (3 Of 8)

Courtesy of MERCEDES-BENZ USA

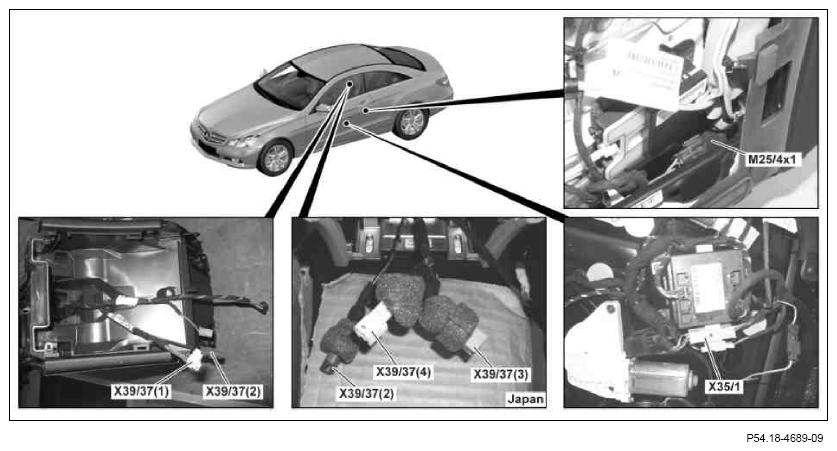

Fig 4: Left Interior Compartment Line And Plug Connectors Location (4 Of 8)

Courtesy of MERCEDES-BENZ USA

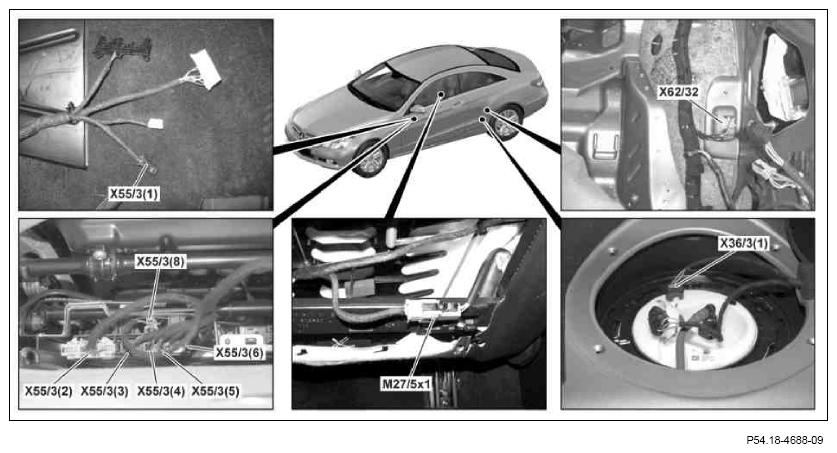

Fig 5: Left Interior Compartment Line And Plug Connectors Location (5 Of 8)

Courtesy of MERCEDES-BENZ USA

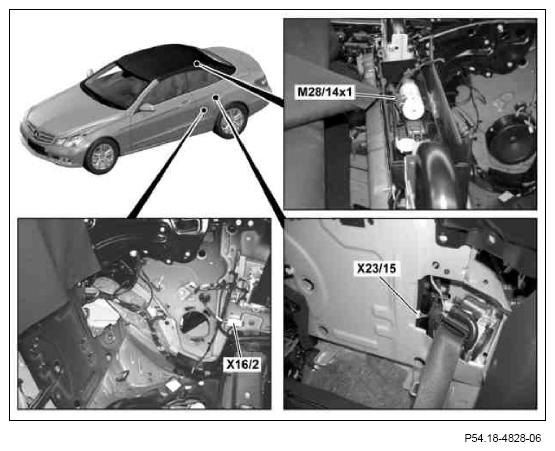

Fig 6: Left Interior Compartment Line And Plug Connectors Location (6 Of 8)

Courtesy of MERCEDES-BENZ USA

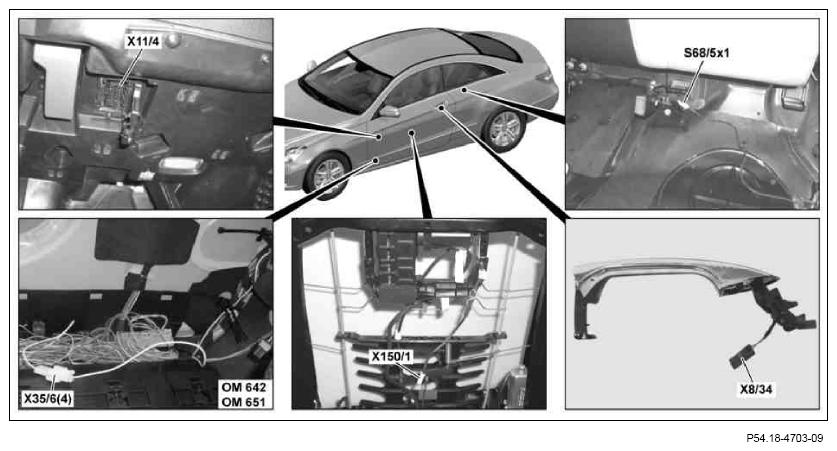

Fig 7: Left Interior Compartment Line And Plug Connectors Location (7 Of 8)

Courtesy of MERCEDES-BENZ USA

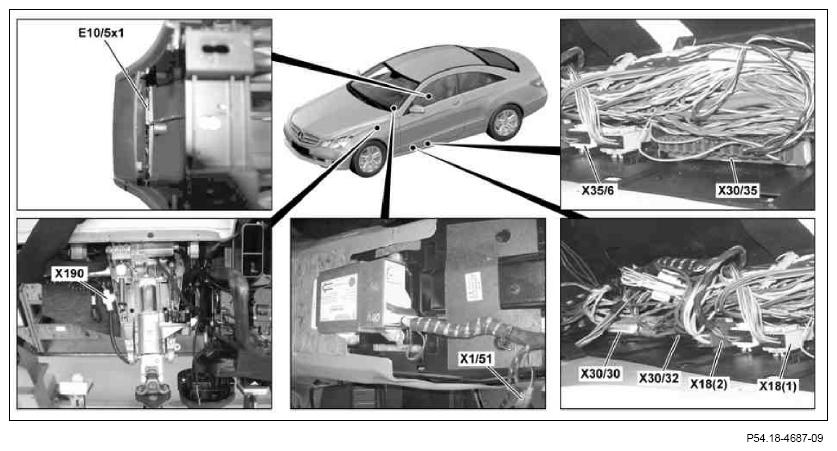

Fig 8: Left Interior Compartment Line And Plug Connectors Location (8 Of 8)

Courtesy of MERCEDES-BENZ USA
