Location and assignment of line and plug connectors, engine compartment, right - GF00.19-P-1000-02EAA

MODEL 207

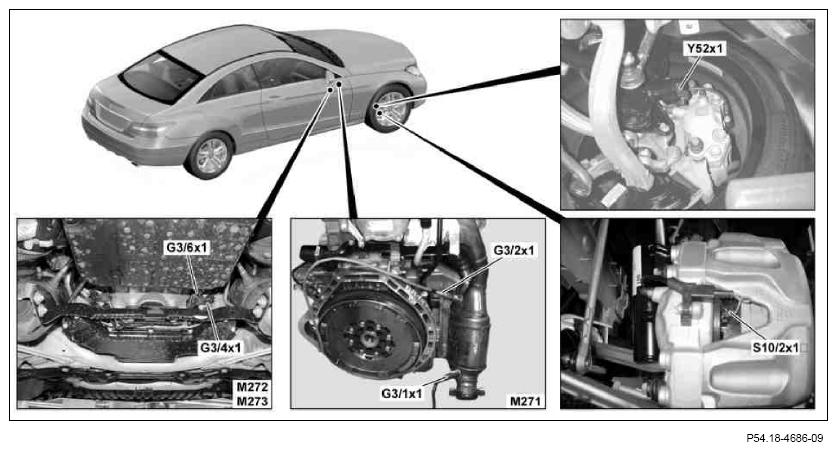

Fig 1: Right Engine Compartment Line And Plug Connectors Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

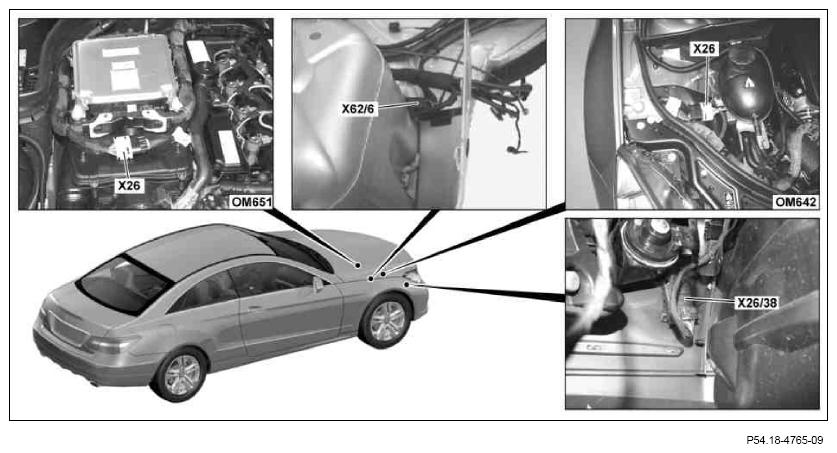

Fig 2: Right Engine Compartment Line And Plug Connectors Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

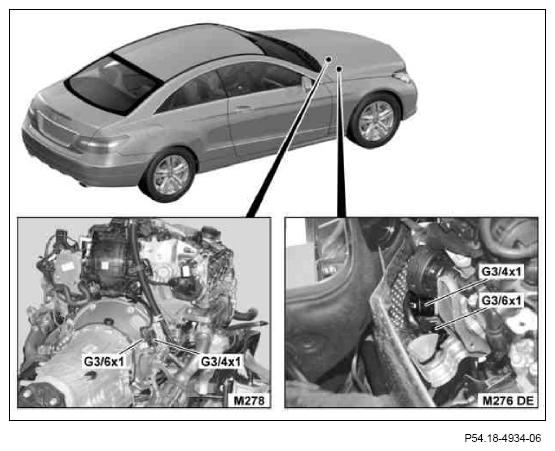

Fig 3: Right Engine Compartment Line And Plug Connectors Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
