Location and assignment of line and plug connectors, engine compartment, left - GF00.19-P-1000-01EAA

MODEL 207

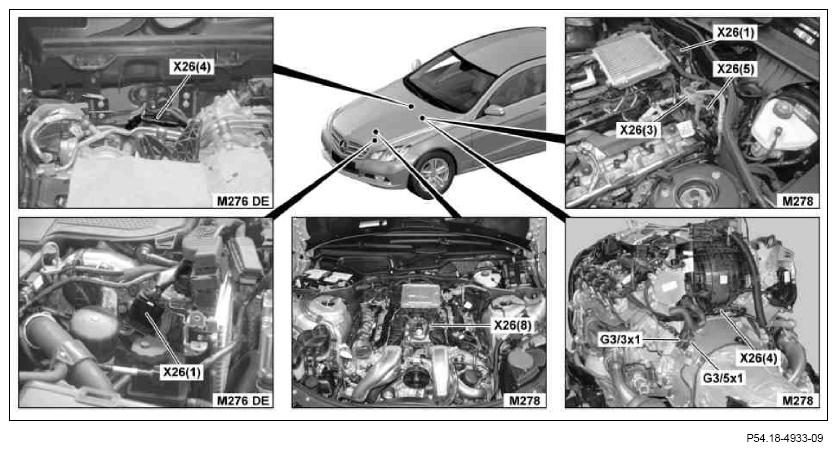

Fig 1: Left Engine Compartment Line And Plug Connectors Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

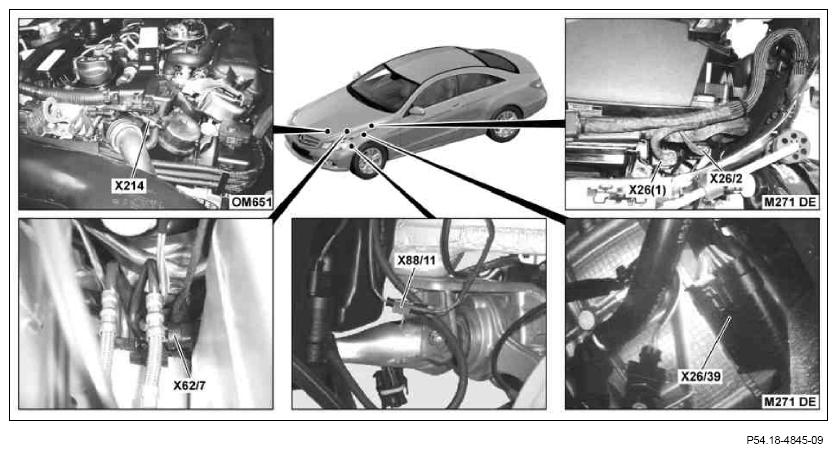

Fig 2: Left Engine Compartment Line And Plug Connectors Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

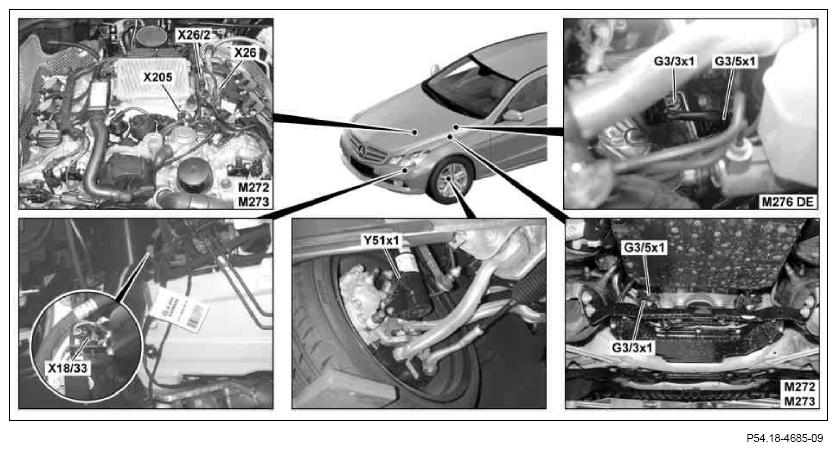

Fig 3: Left Engine Compartment Line And Plug Connectors Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
