Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97DAO

ENGINE 276.8 in MODEL 212 Control unit N3/10, engine connector, sheet 1

Code: Designation: Position:
A0 Color code key 80L
B11/4 Coolant temperature sensor 31L
B17 Intake air temperature sensor 42L
B17/8 Charge air temperature sensor 35L
B2/6b1 Left intake air temperature sensor 68L
B2/7b1 Right intake air temperature sensor 70L
B28/4 Pressure sensor downstream of left cylinder bank air filter 56L
B28/5 Pressure sensor downstream of air filter 47L
B28/6 Pressure sensor upstream of throttle valve 49L
B28/7 Pressure sensor downstream of throttle valve 50L
B4/25 Fuel tank pressure and temperature sensor 54L
B6/4 Left intake camshaft Hall sensor 28L
B6/5 Right intake camshaft Hall sensor 24L
B6/6 Left exhaust camshaft Hall sensor 30L
B6/7 Right exhaust camshaft Hall sensor 26L
B60/1 Left exhaust pressure sensor 44L
B60/2 Right exhaust pressure sensor 45L
B70 Crankshaft Hall sensor 52L
Code 920 Gasoline direct injection with stratified charge 36H
Code 920 Gasoline direct injection with stratified charge 66D
G3/5 Left oxygen sensor downstream of catalytic converter 62L
G3/5b1 Left oxygen sensor element downstream of catalytic converter 62L
G3/5r1 Left oxygen sensor heater downstream of catalytic converter 63L
G3/6 Right oxygen sensor downstream of catalytic converter 65L
G3/6b1 Right oxygen sensor element downstream of catalytic converter 64L
G3/6r1 Right oxygen sensor heater downstream of catalytic converter 65L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 61K
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 64K
N10/1 Front SAM control unit with fuse and relay module 4L
N10/1f22 Fuse 22 2L
N10/1f23 Fuse 23 3L
N10/1f24 Fuse 24 4L
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 68A
R48 Coolant thermostat heating element 60L
T1/1 Cylinder 1 ignition coil 15L
T1/2 Cylinder 2 ignition coil 18L
T1/3 Cylinder 3 ignition coil 20L
T1/4 Cylinder 4 ignition coil 8L
T1/5 Cylinder 5 ignition coil 11L
T1/6 Cylinder 6 ignition coil 13L
U1021 Not valid for gasoline engine with stratified operation 34H
W11 Combustion engine ground point 14E
W16/5 Left major assembly compartment electronics ground point 7L
X26 Interior and engine wiring harness electrical connector 1H
Y101/1 Left bypass air switchover valve 57L
Y31/5 Boost pressure control pressure transducer 58L
Y49/4 Left intake camshaft solenoid 32L
Y49/5 Right intake camshaft solenoid 21L
Y49/6 Left exhaust camshaft solenoid 33L
Y49/7 Right exhaust camshaft solenoid 23L
Y87/1 Right exhaust gas recirculation positioner 38L
Y87/1b1 Right exhaust gas recirculation Hall sensor 39L
Y87/1m1 Right exhaust gas recirculation actuation motor 37L
Y87/2 Left exhaust gas recirculation positioner 40L
Y87/2b1 Left exhaust gas recirculation Hall sensor 41L
Y87/2m1 Left exhaust gas recirculation actuation motor 40L
Z2/1z1 Right engine ground line connector sleeve 15G
Z2/2z1 Left engine ground line connector sleeve 13G
Z5/2z1 Sensor voltage supply connector sleeve 44E
Z6/8z1 Sensor ground line connector sleeve 70G
Z6z1 Circuit 31 connector sleeve 14G
Z6z2 Circuit 31 connector sleeve 10G
Z7/35z1 Circuit 87 M1e connector sleeve 29G
Z7/35z1 Circuit 87 M1e connector sleeve 10E
Z7/36z1 Circuit 87 M2e connector sleeve 1E
Z7/36z1 Circuit 87 M2e connector sleeve 59G
Z7/38z1 Circuit 87 M1i connector sleeve 2E
Z7/38z1 Circuit 87 M1i connector sleeve 20E
Z7/41z1 Sensor power supply connector sleeve 54E
Z7/43z1 Sensor ground line connector sleeve 52G
Z7/44z1 Sensor ground line connector sleeve 27G
Z7/44z1 Sensor ground line connector sleeve 42G
Z7/44z1 Sensor ground line connector sleeve 61E
Z7/55 Connector sleeve 2, sensor voltage 68G

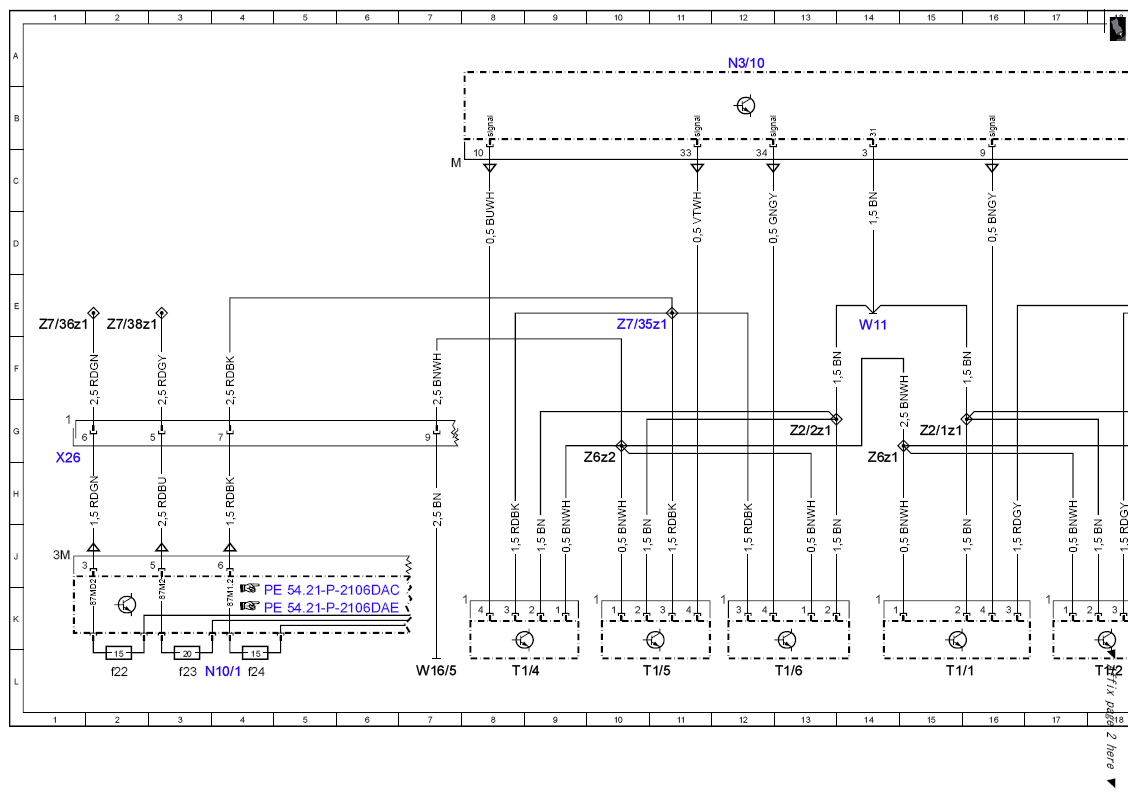

Fig 1: Gasoline Direct Injection System Control Unit - Circuit Diagram (1 Of 5)
G10054164Courtesy of MERCEDES-BENZ USA

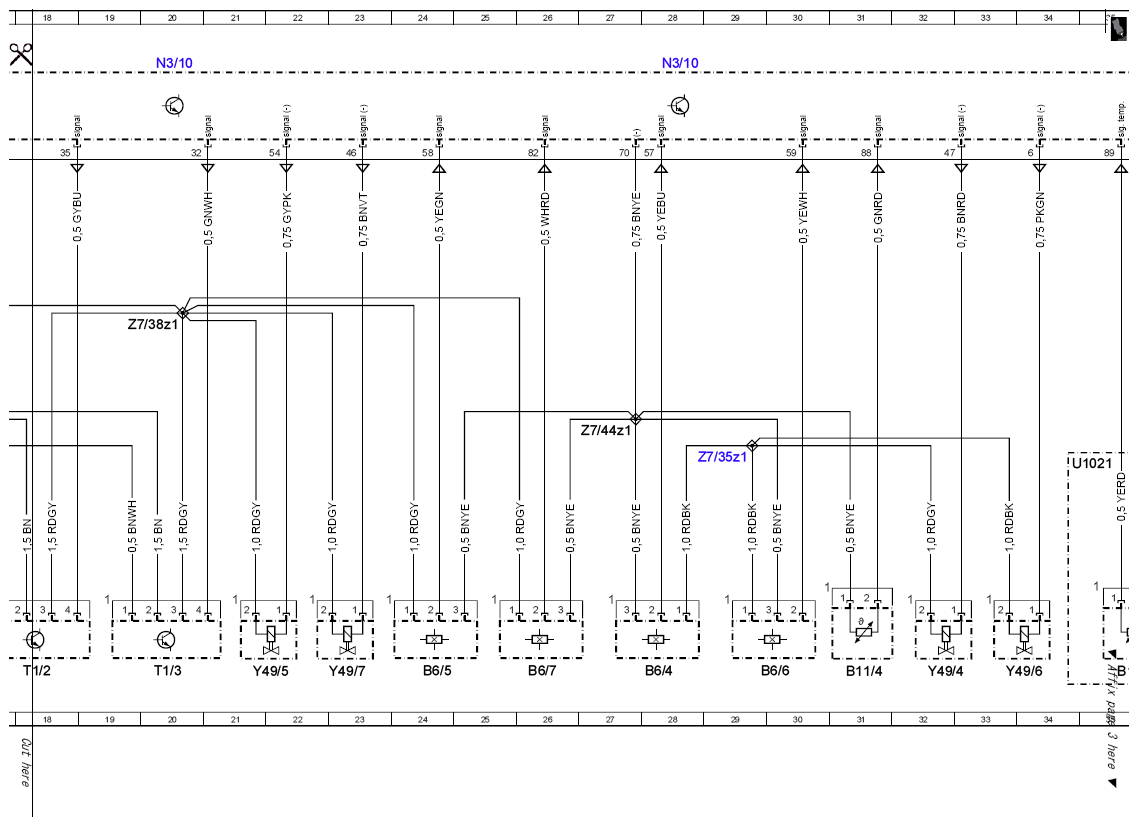

Fig 2: Gasoline Direct Injection System Control Unit - Circuit Diagram (2 Of 5)
G10054165Courtesy of MERCEDES-BENZ USA

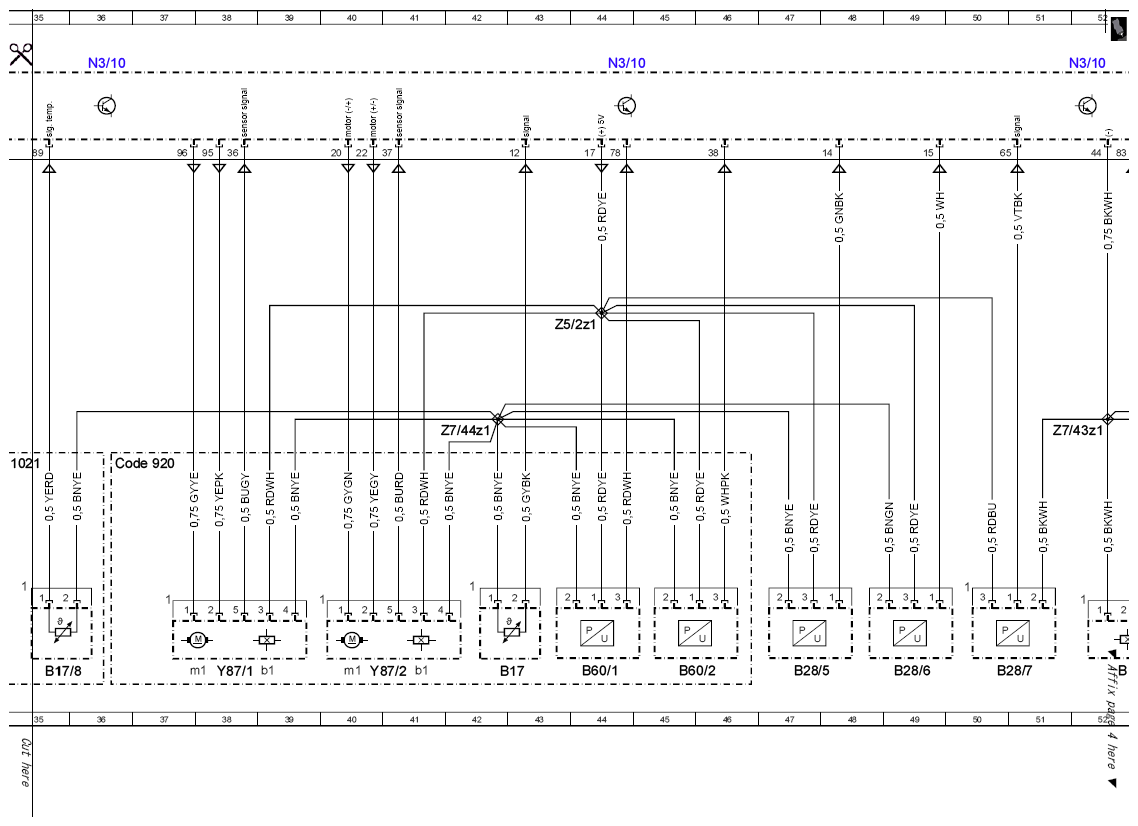

Fig 3: Gasoline Direct Injection System Control Unit - Circuit Diagram (3 Of 5)
G10054166Courtesy of MERCEDES-BENZ USA

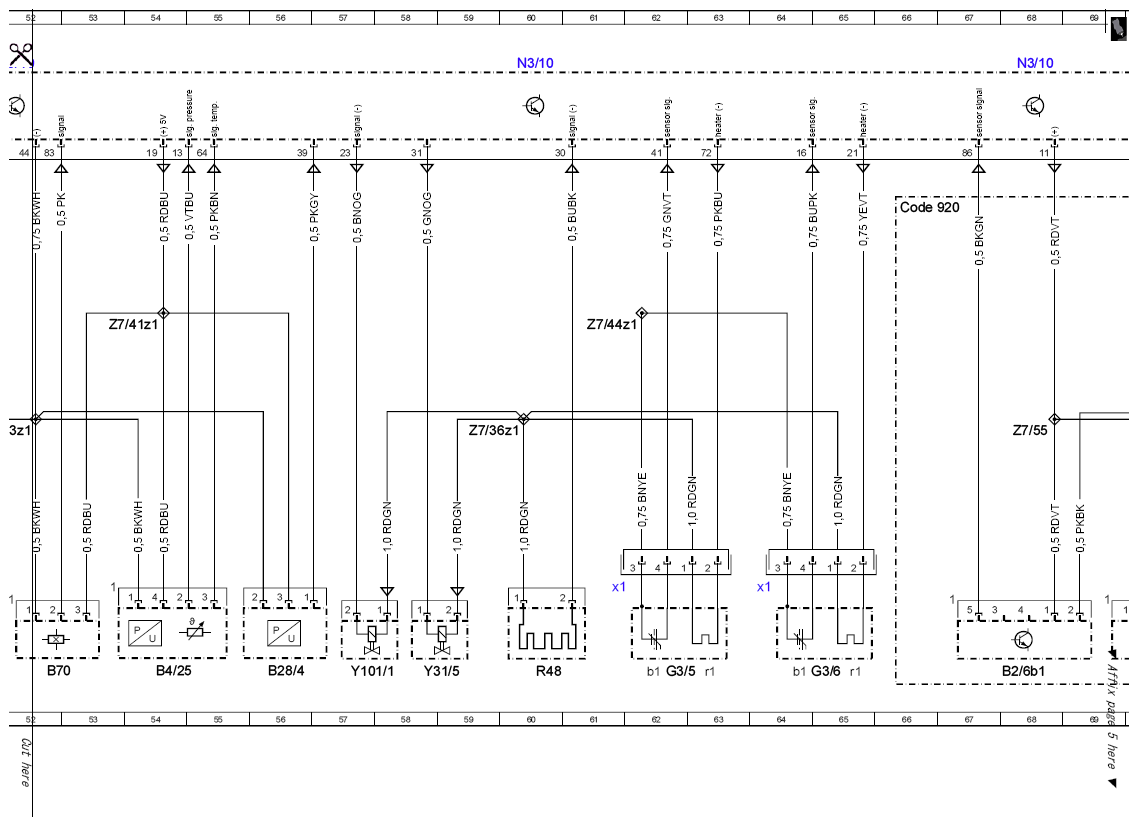

Fig 4: Gasoline Direct Injection System Control Unit - Circuit Diagram (4 Of 5)
G10054167Courtesy of MERCEDES-BENZ USA

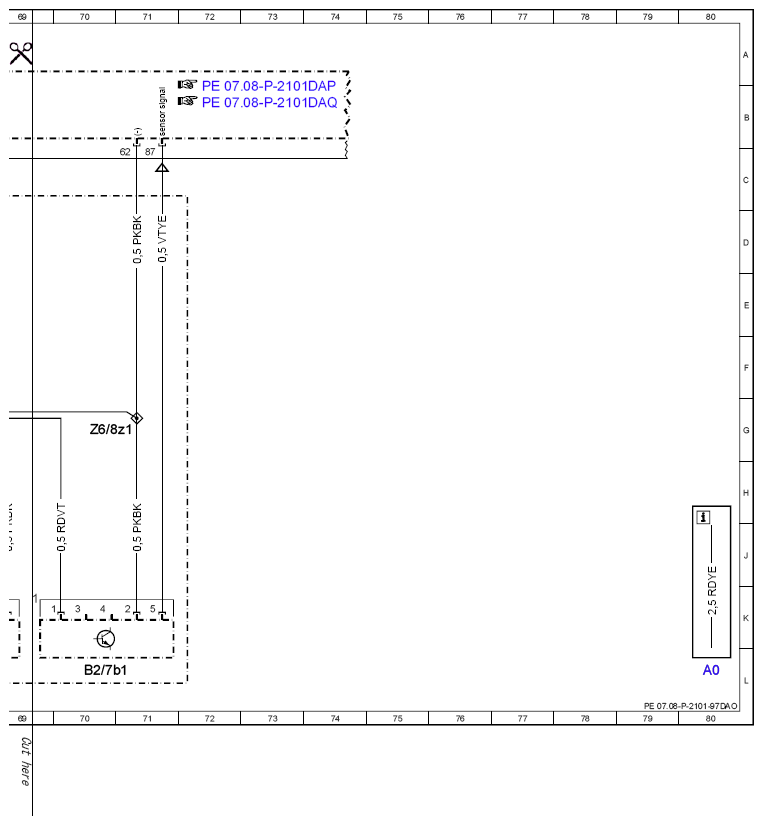

Fig 5: Gasoline Direct Injection System Control Unit - Circuit Diagram (5 Of 5)
G10054168Courtesy of MERCEDES-BENZ USA
