Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97DAJ

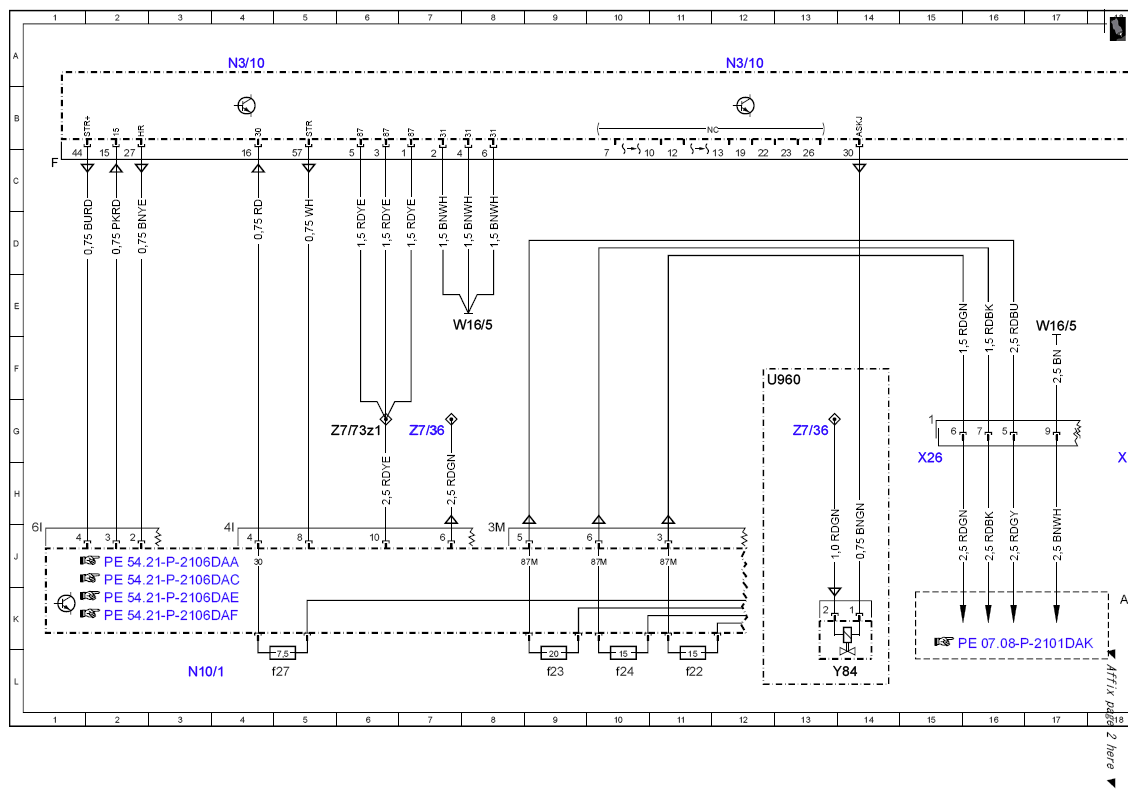

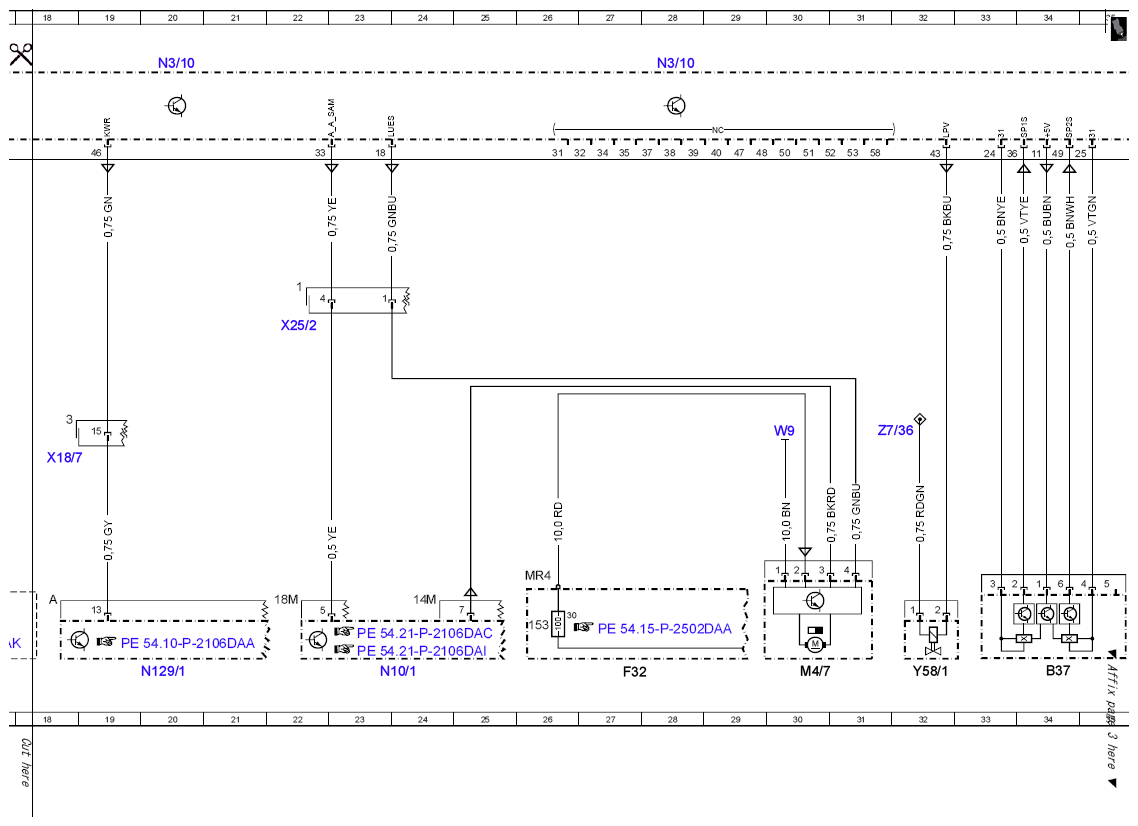

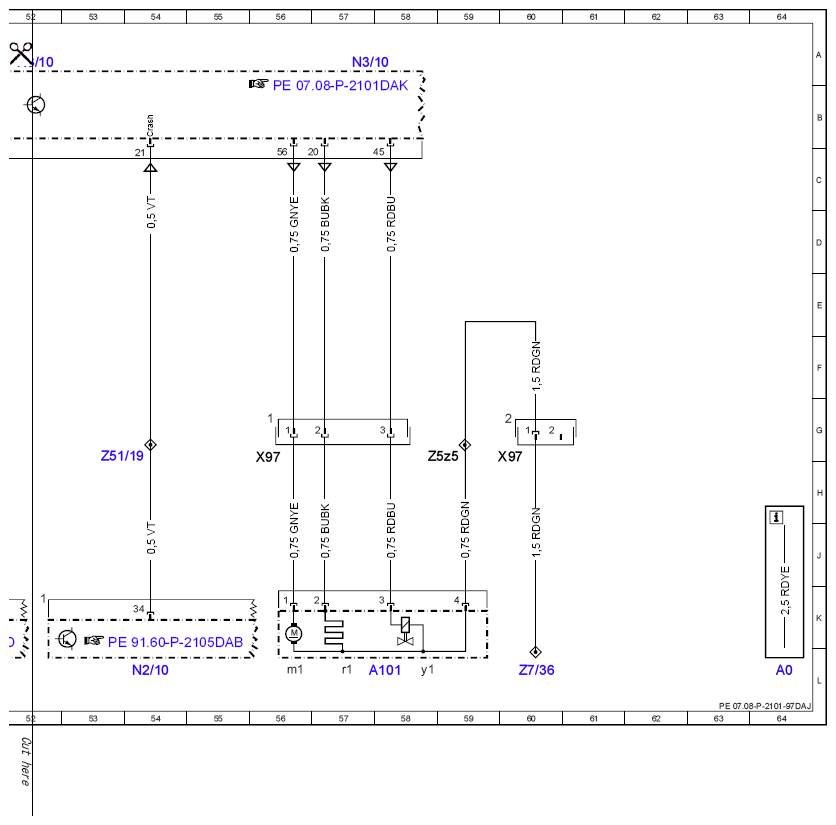

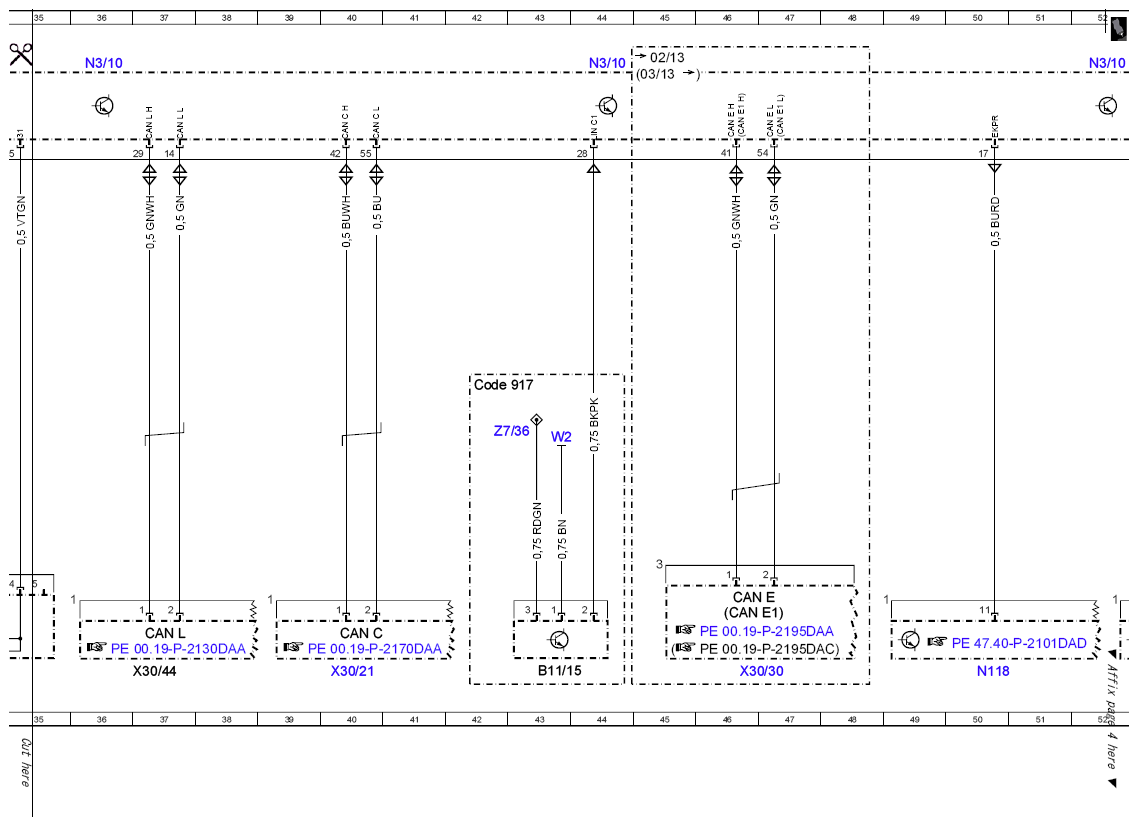

ENGINE 276.952 in MODEL 212.095 Control unit N3/10, vehicle connector
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A101 | Fuel tank diagnostic module | 58L |
| A101m1 | 56L | |
| A101r1 | 57L | |
| A101y1 | 58L | |
| B11/15 | Radiator sensor for engine diagnosis | 43L |
| B37 | Accelerator pedal sensor | 34L |
| CAN C | Drive train CAN | 40K |
| CAN E | Chassis CAN | 46K |
| CAN E1 | Chassis CAN 1 | 46K |
| CAN L | Hybrid CAN | 37K |
| Code 917 | PZEV emission USA | 42F |
| F32 | Front electrical prefuse box | 27L |
| F32f153 | Prefuse 153 | 26K |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 30L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1 | Front SAM control unit with fuse and relay module | 23L |
| N10/1f22 | Fuse 22 | 11L |
| N10/1f23 | Fuse 23 | 9L |
| N10/1f24 | Fuse 24 | 10L |
| N10/1f27 | Fuse 27 | 5L |
| N118 | Fuel pump control unit | 50L |
| N129/1 | Power electronics control unit | 20L |
| N2/10 | Supplemental restraint system control unit | 54L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 57A |
| U960 | Valid for radiator shutters | 12F |
| W16/5 | Left major assembly compartment electronics ground point | 8E |
| W16/5 | Left major assembly compartment electronics ground point | 17E |
| W2 | Right front ground point at lamp unit | 43G |
| W9 | Left front ground point (at lamp unit) | 30G |
| X18/7 | Vehicle interior and engine compartment electrical connector | 18H |
| X25/2 | Engine compartment/interior electrical connector | 22E |
| X26 | Interior and engine wiring harness electrical connector | 15H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 40L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 46L |
| X30/44 | Hybrid CAN potential distributor electrical connector | 37L |
| X97 | 60H | |
| X97 | 56H | |
| Y58/1 | Purge control valve | 32L |
| Y84 | Radiator shutters actuator | 14L |
| Z51/19 | Engine management crash signal connector sleeve | 53G |
| Z5z5 | 59G | |
| Z7/36 | Circuit 87 M2e connector sleeve | 7G |
| Z7/36 | Circuit 87 M2e connector sleeve | 13G |
| Z7/36 | Circuit 87 M2e connector sleeve | 32G |
| Z7/36 | Circuit 87 M2e connector sleeve | 43G |
| Z7/36 | Circuit 87 M2e connector sleeve | 60L |
| Z7/73z1 | Circuit 87 connector sleeve | 6G |
