Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97DAI

ENGINE 276 (except 276.8) in MODEL 212 (except 212.095) Control unit N3/10, engine connector

Code: Designation: Position:
A0 Color code key 80A
A16/1 Cylinder 3+4 knock sensor 2L
A16/2 Left knock sensor 1L
B11/4 Coolant temperature sensor 38L
B17 Intake air temperature sensor 55L
B17/1 Intake manifold intake air temperature sensor 44L
B2/5 Hot film mass air flow sensor 58L
B2/5b1 Intake air temperature sensor 58L
B28/7 Pressure sensor downstream of throttle valve 65L
B4/25 Fuel tank pressure and temperature sensor 68L
B6/4 Left intake camshaft Hall sensor 35L
B6/5 Right intake camshaft Hall sensor 39L
B6/6 Left exhaust camshaft Hall sensor 36L
B6/7 Right exhaust camshaft Hall sensor 40L
B70 Crankshaft Hall sensor 67L
G3/3 Left oxygen sensor upstream of catalytic converter 52L
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 50J
G3/4 Right oxygen sensor upstream of catalytic converter 15L
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 14J
G3/5 Left oxygen sensor downstream of catalytic converter 45L
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 44J
G3/6 Right oxygen sensor downstream of catalytic converter 47L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 46J
M16/45b1 Right Hall sensor 64L
M16/45b2 Left Hall sensor 62L
M16/45m1 Right actuator motor 63L
M16/45m2 Left actuator motor 60L
M16/6 Throttle valve actuator 12L
M16/6m1 Actuator motor 11K
M16/6r1 Actual value potentiometer 1 12K
M16/6r2 Actual value potentiometer 2 12K
M16/6r3 Sliding contact 1 actual value potentiometer 11K
M16/6r4 Sliding contact 2 actual value potentiometer 11K
N10/1 Front SAM control unit with fuse and relay module 73L
N3/10 ME-SFI [ME] control unit 4A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 37A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 53A
N3/10 ME-SFI [ME] control unit 61A
N3/10 ME-SFI [ME] control unit 68A
N3/10 ME-SFI [ME] control unit 76A
R4 Spark plugs 21L
R4 Spark plugs 20L
R4 Spark plugs 27L
R4 Spark plugs 23L
R4 Spark plugs 31L
R4 Spark plugs 29L
R48 Coolant thermostat heating element 18L
S43 Oil level check switch 3L
T1/1 Cylinder 1 ignition coil 19K
T1/2 Cylinder 2 ignition coil 21K
T1/3 Cylinder 3 ignition coil 23K
T1/4 Cylinder 4 ignition coil 27K
T1/5 Cylinder 5 ignition coil 29K
T1/6 Cylinder 6 ignition coil 31K
U1020 Valid for gasoline engine with stratified operation 56H
U1021 Not valid for gasoline engine with stratified operation 54H
W11 Combustion engine ground point 25L
W16/5 Left major assembly compartment electronics ground point 70L
X26 Interior and engine wiring harness electrical connector 1H
X26 Interior and engine wiring harness electrical connector 70H
Y130 Engine oil pump valve 49L
Y49/4 Left intake camshaft solenoid 33L
Y49/5 Right intake camshaft solenoid 42L
Y49/6 Left exhaust camshaft solenoid 34L
Y49/7 Right exhaust camshaft solenoid 43L
Y76/1 Cylinder 1 fuel injector 4L
Y76/2 Cylinder 2 fuel injector 5L
Y76/3 Cylinder 3 fuel injector 6L
Y76/4 Cylinder 4 fuel injector 7L
Y76/5 Cylinder 5 fuel injector 8L
Y76/6 Cylinder 6 fuel injector 9L
Y77/2 Intake manifold resonance flap switchover valve 17L
Y77/3 Intake manifold selector drum switchover valve 50L
Y94 Quantity control valve 53L
Z2/1 Right engine ground connector sleeve 24G
Z2/2 Left engine ground connector sleeve 26G
Z5z1 Connector sleeve in wiring harness 65G
Z6z1 Circuit 31 connector sleeve 21E
Z6z2 Circuit 31 connector sleeve 29E
Z6z2 Circuit 31 connector sleeve 70E
Z7/35z2 Circuit 87 M1e connector sleeve 36G
Z7/35z2 Circuit 87 M1e connector sleeve 28E
Z7/35z2 Circuit 87 M1e connector sleeve 71E
Z7/36z1 Circuit 87 M2e connector sleeve 17G
Z7/36z1 Circuit 87 M2e connector sleeve 48G
Z7/36z1 Circuit 87 M2e connector sleeve 72E
Z7/38z1 Circuit 87 M1i connector sleeve 41G
Z7/38z1 Circuit 87 M1i connector sleeve 23E
Z7/38z1 Circuit 87 M1i connector sleeve 73E
Z7/41z1 Sensor power supply connector sleeve 67G
Z7/43 Sensor ground connector sleeve 66E
Z7/44 Sensor ground connector sleeve 40E
Z7/44 Sensor ground connector sleeve 55E
Z7/44 Sensor ground connector sleeve 61E

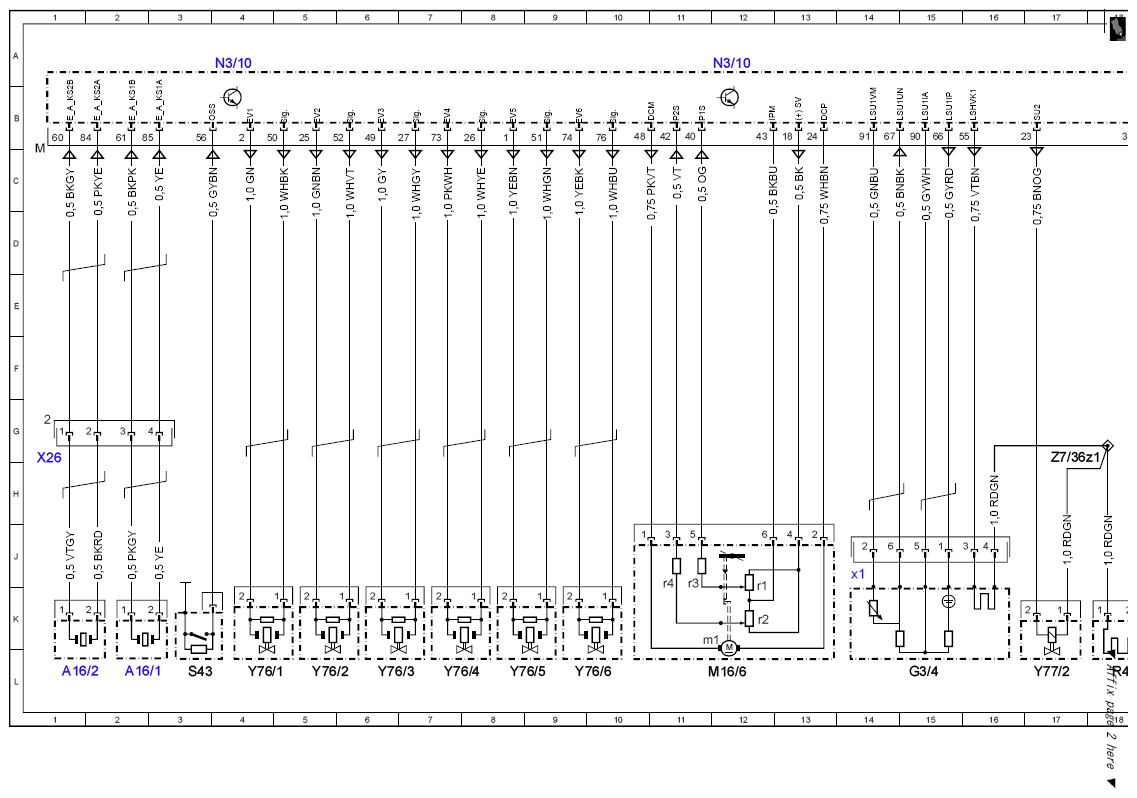

Fig 1: Gasoline Direct Injection System Control Unit - Circuit Diagram (1 Of 5)
G10054139Courtesy of MERCEDES-BENZ USA

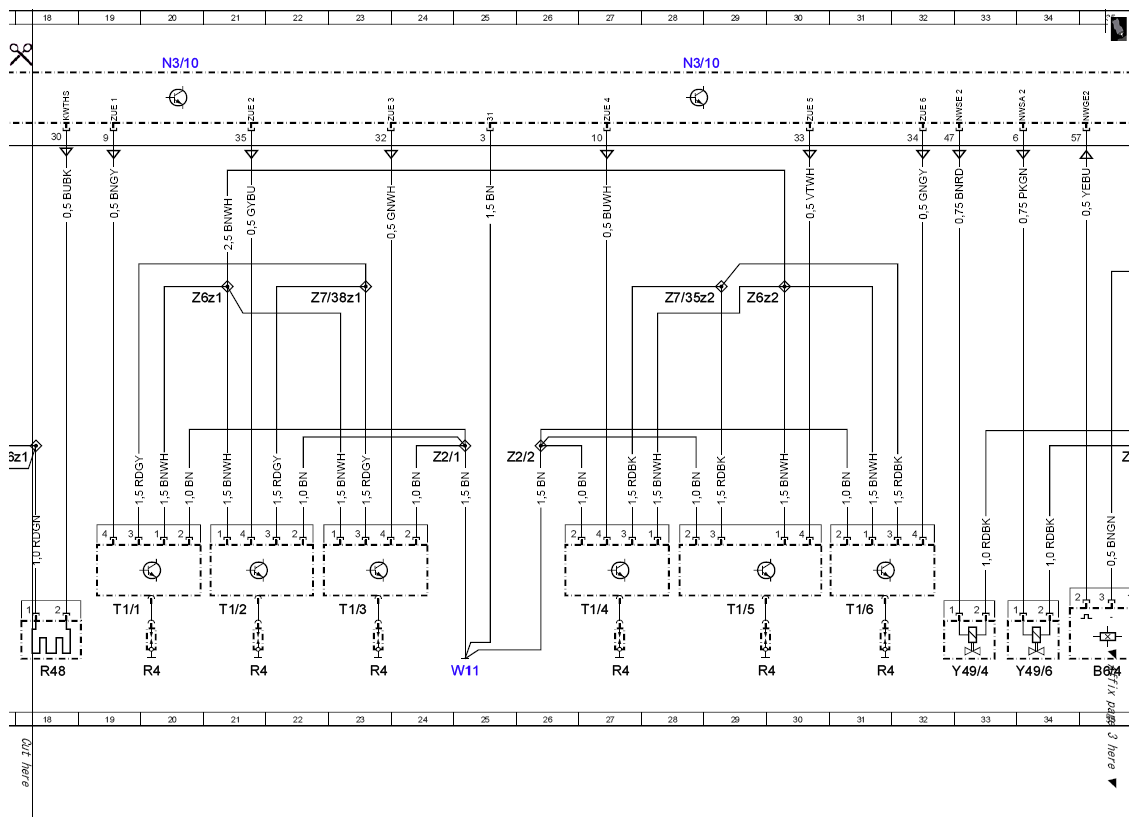

Fig 2: Gasoline Direct Injection System Control Unit - Circuit Diagram (2 Of 5)
G10054140Courtesy of MERCEDES-BENZ USA

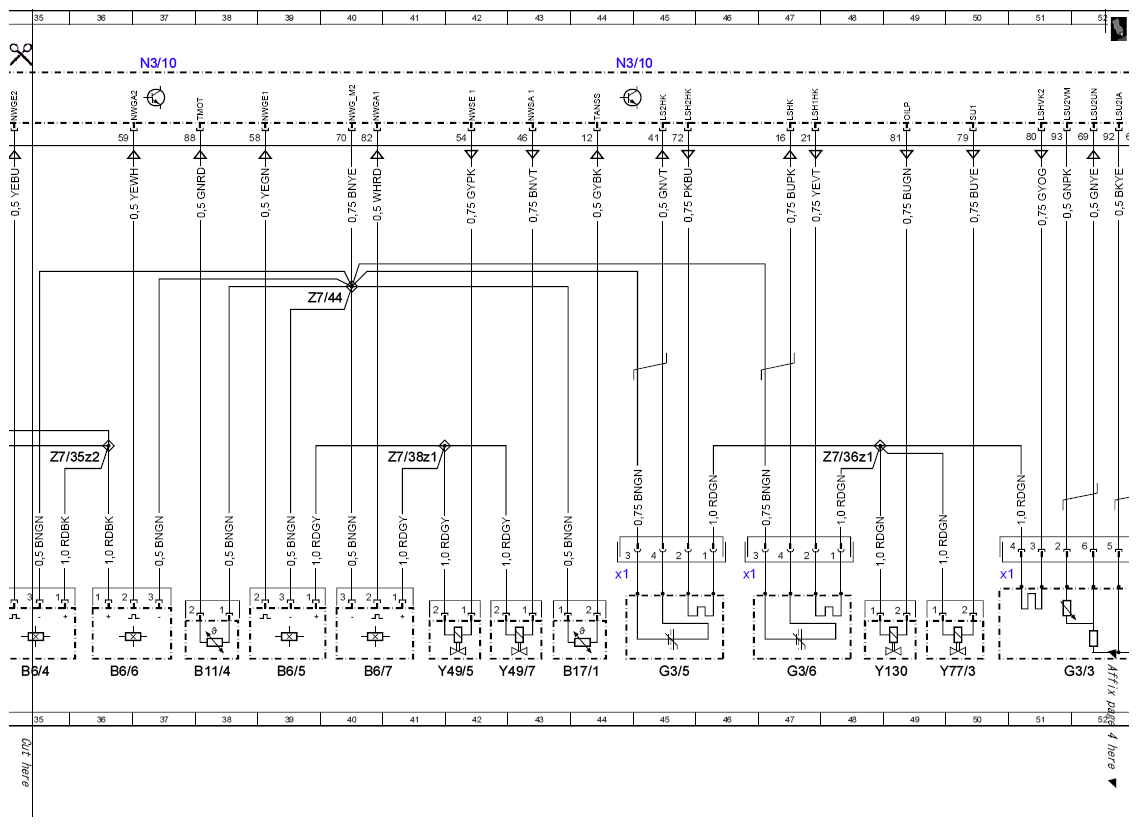

Fig 3: Gasoline Direct Injection System Control Unit - Circuit Diagram (3 Of 5)
G10054141Courtesy of MERCEDES-BENZ USA

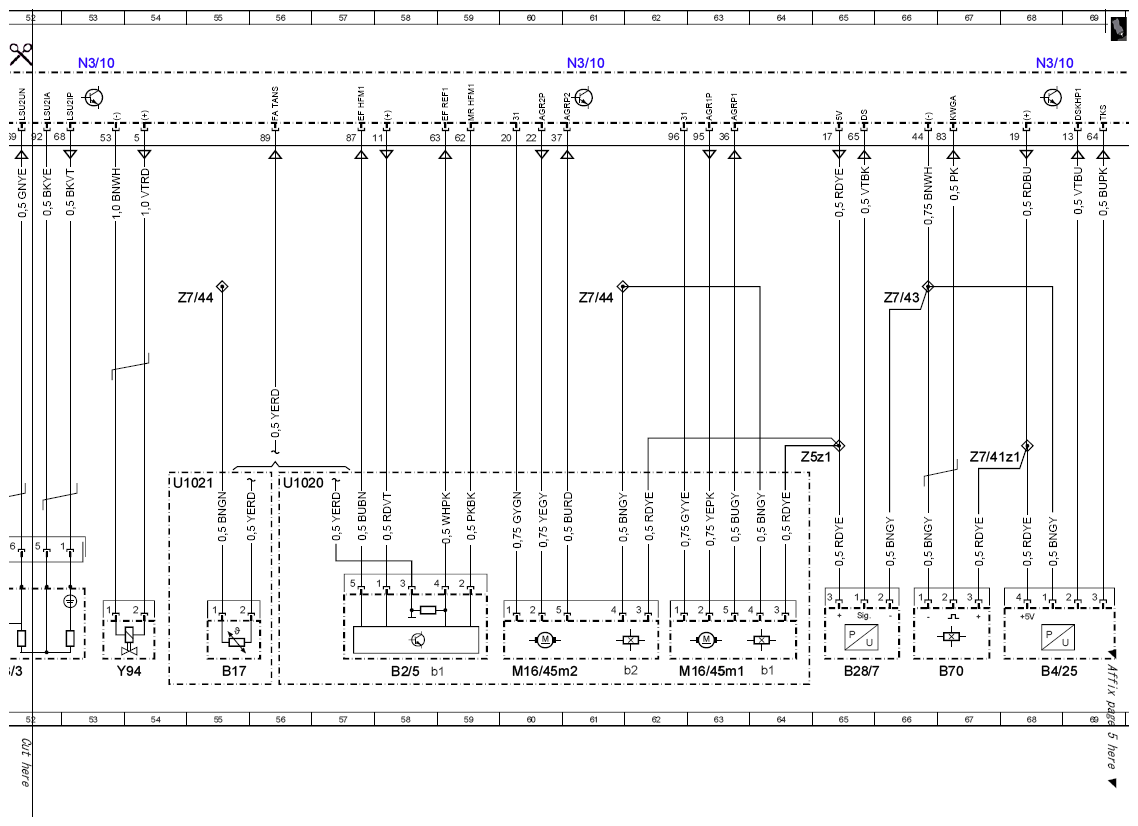

Fig 4: Gasoline Direct Injection System Control Unit - Circuit Diagram (4 Of 5)
G10054142Courtesy of MERCEDES-BENZ USA

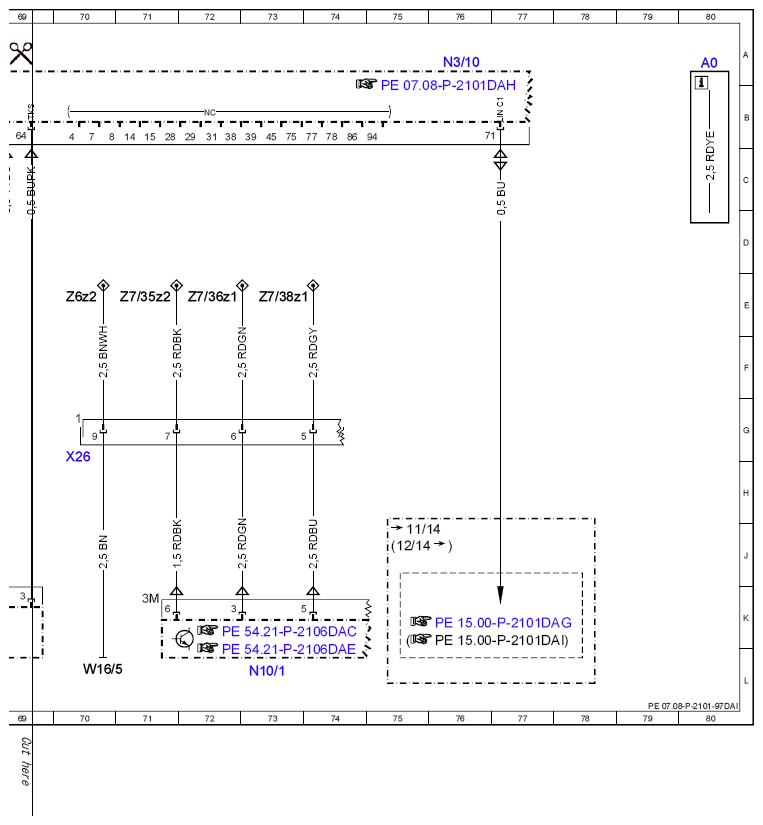

Fig 5: Gasoline Direct Injection System Control Unit - Circuit Diagram (5 Of 5)
G10054143Courtesy of MERCEDES-BENZ USA
