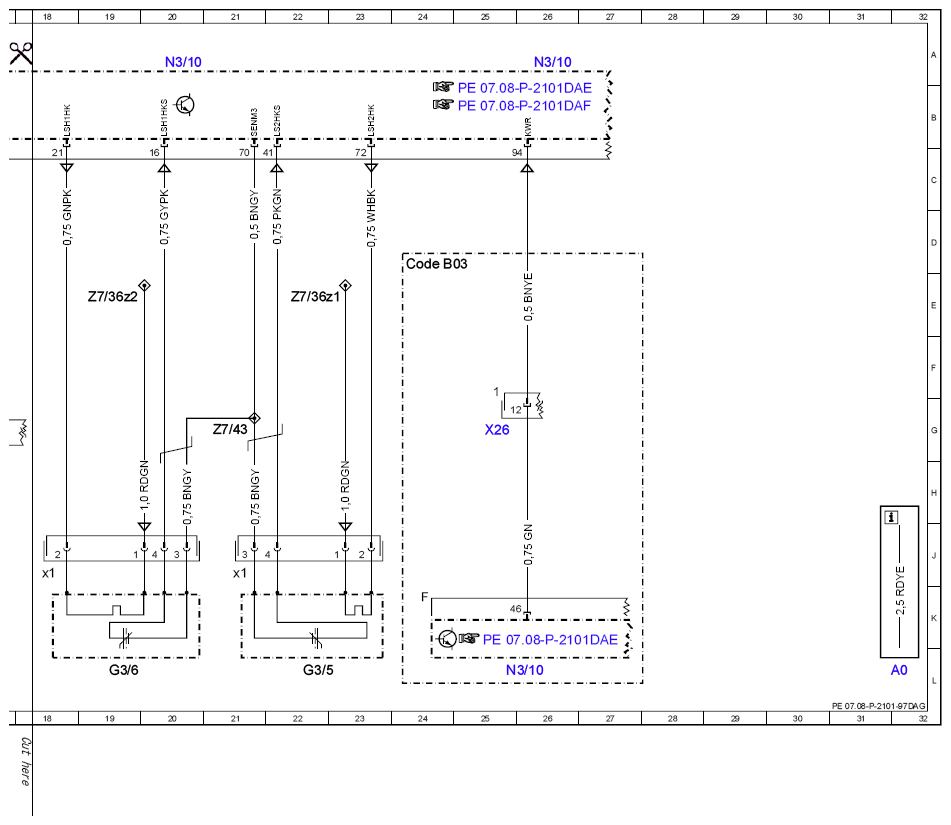

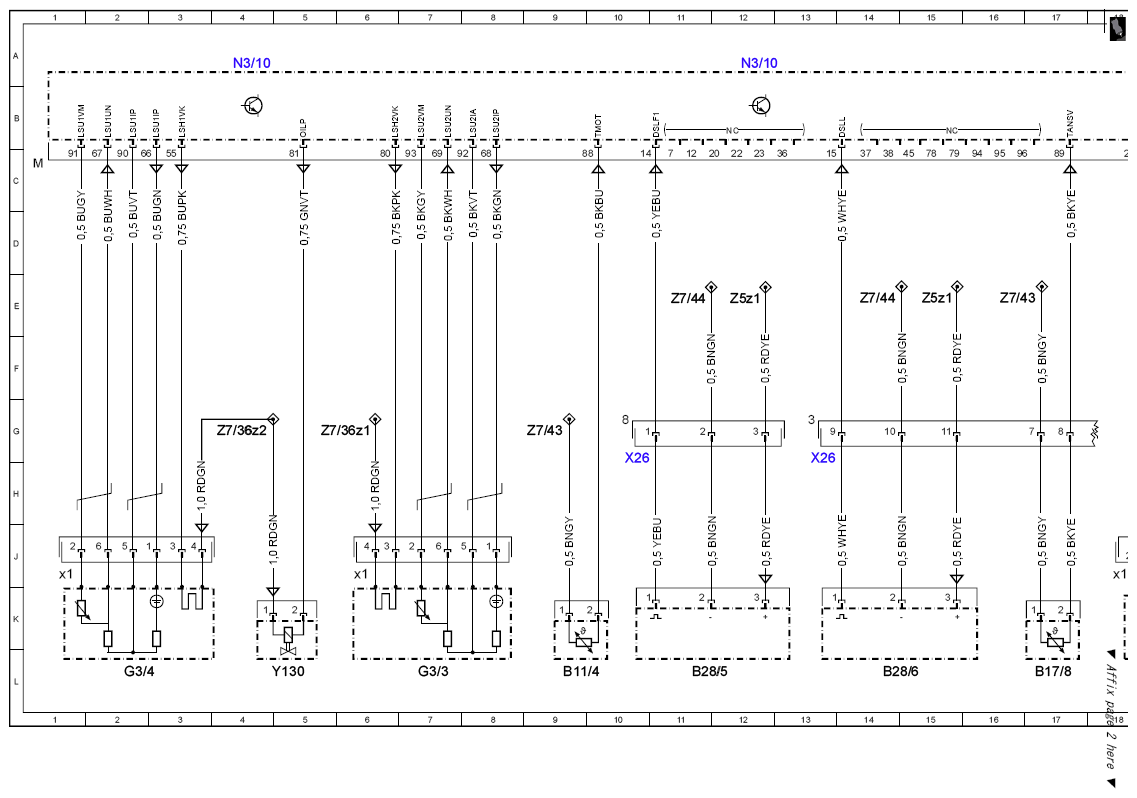

Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97DAG
ENGINE 157, 278 in MODEL 212 Control unit N3/10, engine connector, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B11/4 | Coolant temperature sensor | 9L |
| B17/8 | Charge air temperature sensor | 17L |
| B28/5 | Pressure sensor downstream of air filter | 11L |
| B28/6 | Pressure sensor upstream of throttle valve | 14L |
| Code B03 | ECO start/stop function | 24D |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 7L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 6J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 2L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 1J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 22L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 21J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 19L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 18J |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 26A |
| X26 | Interior and engine wiring harness electrical connector | 10H |
| X26 | Interior and engine wiring harness electrical connector | 13H |
| X26 | Interior and engine wiring harness electrical connector | 25G |
| Y130 | Engine oil pump valve | 5L |
| Z5z1 | Connector sleeve in wiring harness | 12E |
| Z5z1 | Connector sleeve in wiring harness | 15E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 6G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 22E |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 4G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 19E |
| Z7/43 | Sensor ground connector sleeve | 16E |
| Z7/43 | Sensor ground connector sleeve | 9G |
| Z7/43 | Sensor ground connector sleeve | 21G |
| Z7/44 | Sensor ground connector sleeve | 11E |
| Z7/44 | Sensor ground connector sleeve | 14E |
