Wiring diagram for gasoline direct injection system control unit - PE07.08-P-2101-97DAC

ENGINE 272 in MODEL 212 Control unit N3/10, engine connector

Code: Designation: Position:
A0 Color code key 80L
A16/1 Cylinder 3+4 knock sensor 3L
A16/2 Left knock sensor 4L
B11/4 Coolant temperature sensor 73L
B2/5 Hot film mass air flow sensor 22L
B28 Pressure sensor 51L
B4/6 Rail pressure sensor 52L
B50 Fuel temperature sensor 71L
B6/4 Left intake camshaft Hall sensor 46L
B6/5 Right intake camshaft Hall sensor 40L
B6/6 Left exhaust camshaft Hall sensor 48L
B6/7 Right exhaust camshaft Hall sensor 41L
B70 Crankshaft Hall sensor 54L
C4/1 Radio interference suppression capacitor 1 18L
C4/2 Radio interference suppression capacitor 2 23L
G2 Alternator 2L
G3/3 Left oxygen sensor upstream of catalytic converter 64L
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter 63J
G3/4 Right oxygen sensor upstream of catalytic converter 62L
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter 61J
G3/5 Left oxygen sensor downstream of catalytic converter 59L
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter 59J
G3/6 Right oxygen sensor downstream of catalytic converter 57L
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter 56J
M16/45 Exhaust gas recirculation actuator motors 75L
M16/45b1 Right Hall sensor 75L
M16/45b2 Left Hall sensor 77L
M16/45m1 Right actuator motor 74L
M16/45m2 Left actuator motor 76L
M16/6 Throttle valve actuator 6L
M16/6m1 Actuator motor 5K
M16/6r1 Actual value potentiometer 1 6J
M16/6r2 Actual value potentiometer 2 6K
N10/1 Front SAM control unit with fuse and relay module 16L
N3/10 ME-SFI [ME] control unit 6A
N3/10 ME-SFI [ME] control unit 12A
N3/10 ME-SFI [ME] control unit 28A
N3/10 ME-SFI [ME] control unit 20A
N3/10 ME-SFI [ME] control unit 36A
N3/10 ME-SFI [ME] control unit 44A
N3/10 ME-SFI [ME] control unit 52A
N3/10 ME-SFI [ME] control unit 60A
N3/10 ME-SFI [ME] control unit 68A
N3/10 ME-SFI [ME] control unit 76A
R4 Spark plugs 8L
R4 Spark plugs 12L
R4 Spark plugs 10L
R4 Spark plugs 25L
R4 Spark plugs 26L
R4 Spark plugs 28L
S43 Oil level check switch 55L
T1/1 Cylinder 1 ignition coil 8K
T1/2 Cylinder 2 ignition coil 10K
T1/3 Cylinder 3 ignition coil 11K
T1/4 Cylinder 4 ignition coil 24K
T1/5 Cylinder 5 ignition coil 26K
T1/6 Cylinder 6 ignition coil 28K
W11w1 Left cylinder bank ground point (engine) 23G
W11w1 Left cylinder bank ground point (engine) 26G
W11w2 Right cylinder bank ground point (engine) 10G
W11w2 Right cylinder bank ground point (engine) 18G
W16/5 Left major assembly compartment electronics ground point 13L
X26 Interior and engine wiring harness electrical connector 13H
Y110 Coolant thermostat 70L
Y125 Low-temperature circuit shutoff valve 67L
Y16/2 Heating system shutoff valve 68L
Y22/6 Intake manifold switchover valve 69L
Y49/4 Left intake camshaft solenoid 49L
Y49/5 Right intake camshaft solenoid 42L
Y49/6 Left exhaust camshaft solenoid 45L
Y49/7 Right exhaust camshaft solenoid 44L
Y62/4 Cylinder 4 injection valve 33L
Y62/5 Cylinder 5 injection valve 34L
Y62/6 Cylinder 6 injection valve 36L
Y74 Pressure regulator valve 20L
Y76/1 Cylinder 1 fuel injector 30L
Y76/2 Cylinder 2 fuel injector 31L
Y76/3 Cylinder 3 fuel injector 32L
Y94 Quantity control valve 38L
Z300/1 Connector sleeve (terminal point in wiring harness) 37G
Z300/2 Connector sleeve (terminal point in wiring harness) 38G
Z5z1 Connector sleeve in wiring harness 53G
Z5z2 Connector sleeve in wiring harness 76E
Z6z5 Circuit 31 connector sleeve 9G
Z6z6 Circuit 31 connector sleeve 28G
Z6z6 Circuit 31 connector sleeve 9E
Z6z6 Circuit 31 connector sleeve 13E
Z7/35z2 Circuit 87 M1e connector sleeve 16E
Z7/35z2 Circuit 87 M1e connector sleeve 25E
Z7/35z2 Circuit 87 M1e connector sleeve 47G
Z7/36 Circuit 87 M2e connector sleeve 15E
Z7/36 Circuit 87 M2e connector sleeve 63G
Z7/36 Circuit 87 M2e connector sleeve 67G
Z7/36 Circuit 87 M2e connector sleeve 57E
Z7/38z1 Circuit 87 M1i connector sleeve 39G
Z7/38z1 Circuit 87 M1i connector sleeve 14E
Z7/38z1 Circuit 87 M1i connector sleeve 43G
Z7/38z2 Circuit 87 M1i connector sleeve 19G
Z7/43 Sensor ground connector sleeve 72G
Z7/43 Sensor ground connector sleeve 76G
Z7/44 Sensor ground connector sleeve 41G
Z7/44 Sensor ground connector sleeve 59G
Z7/44 Sensor ground connector sleeve 48E

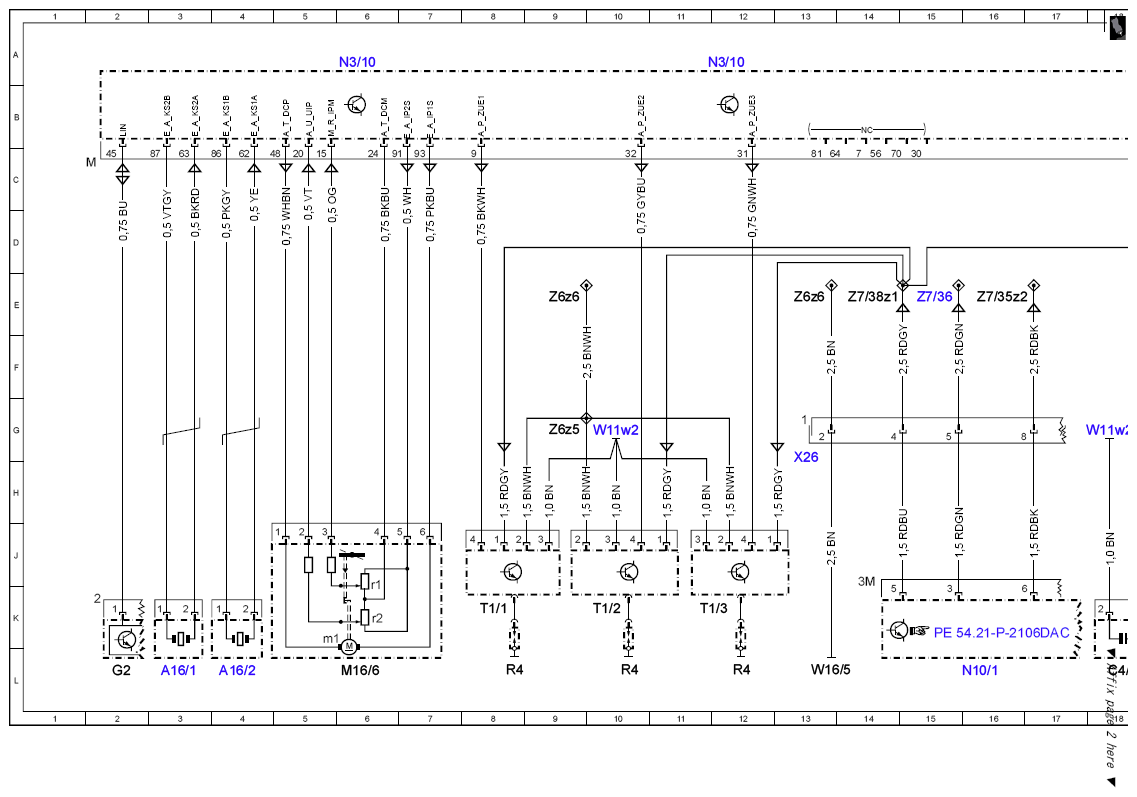

Fig 1: Gasoline Direct Injection System Control Unit - Circuit Diagram (1 Of 5)
G10054112Courtesy of MERCEDES-BENZ USA

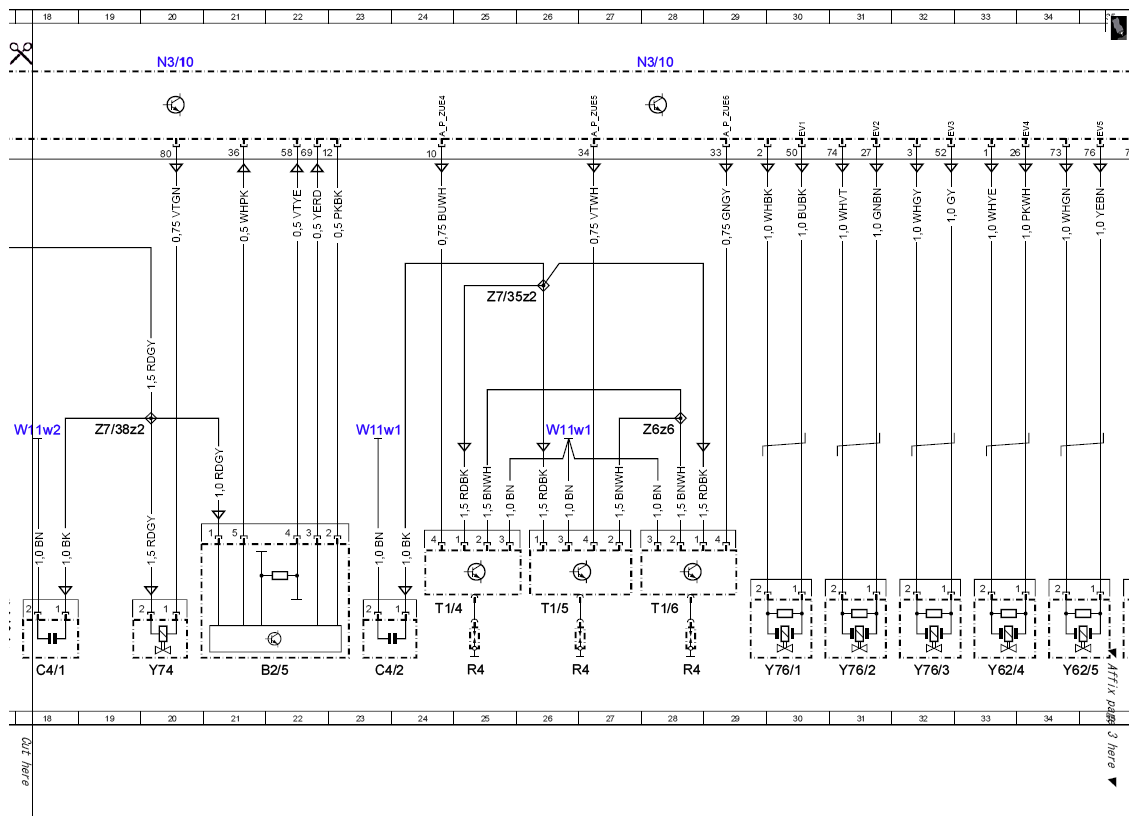

Fig 2: Gasoline Direct Injection System Control Unit - Circuit Diagram (2 Of 5)
G10054113Courtesy of MERCEDES-BENZ USA

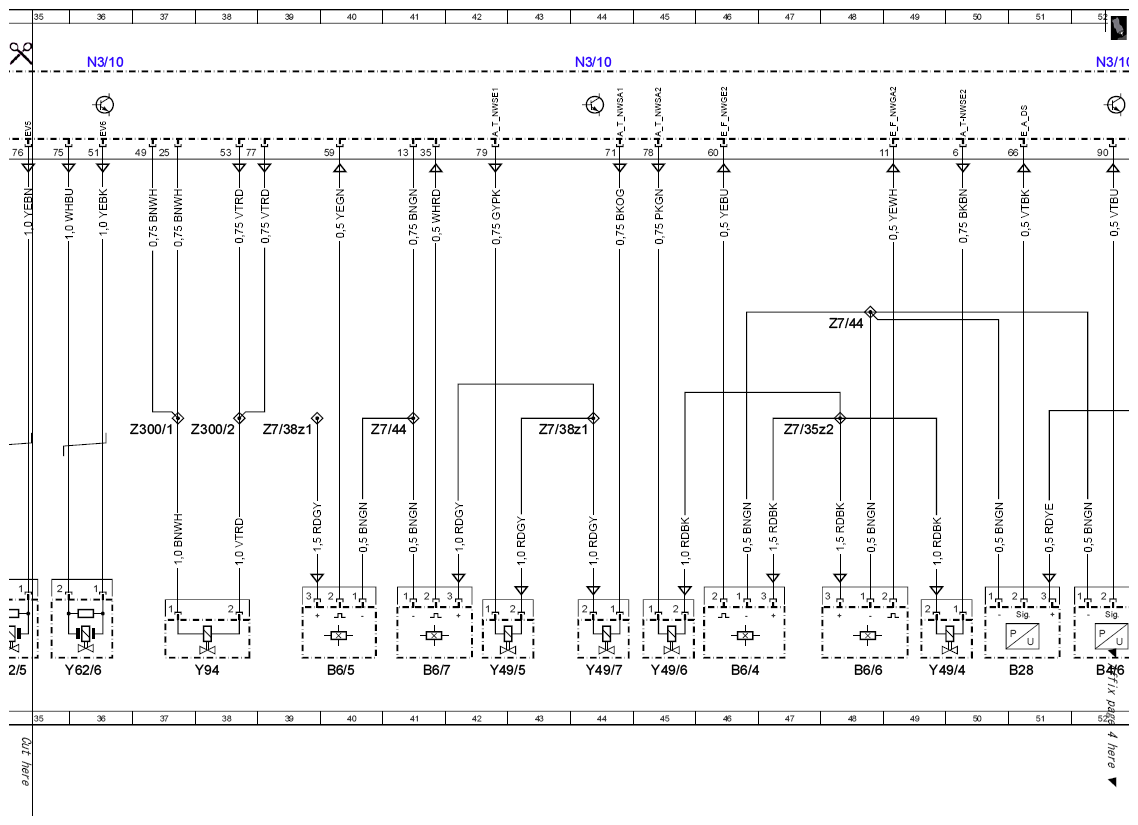

Fig 3: Gasoline Direct Injection System Control Unit - Circuit Diagram (3 Of 5)
G10054114Courtesy of MERCEDES-BENZ USA

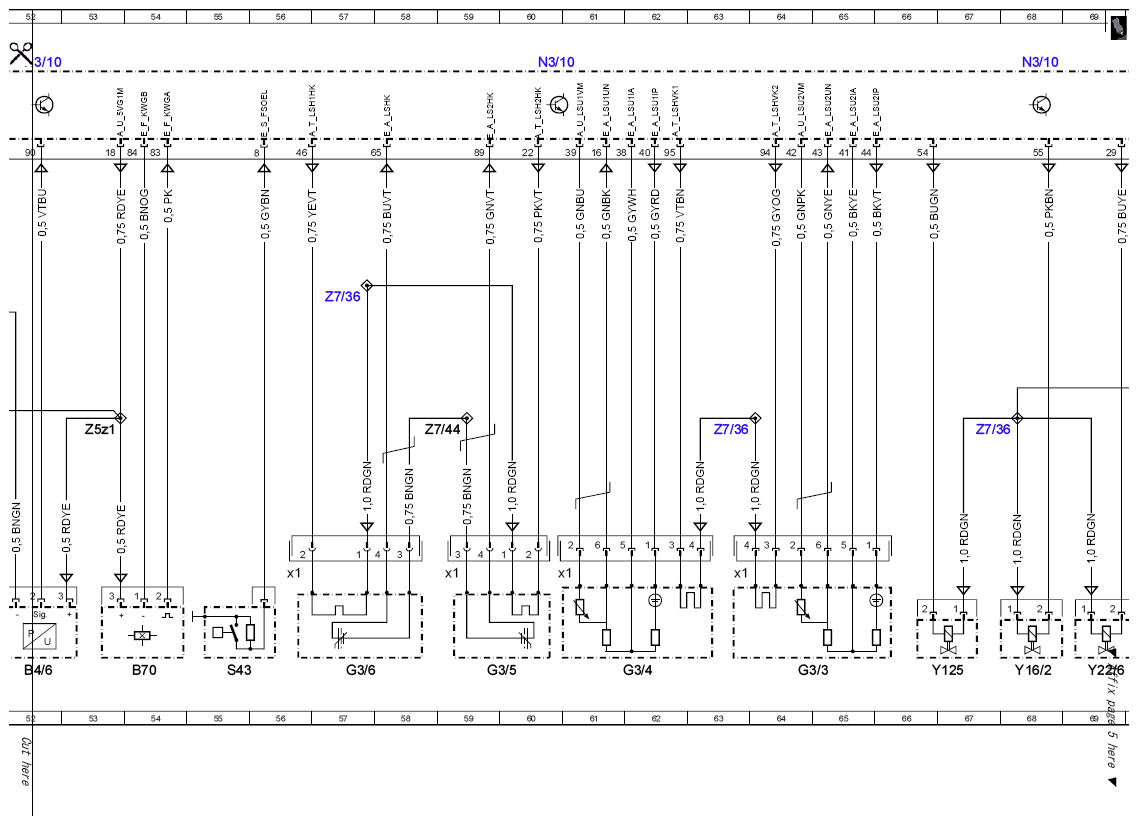

Fig 4: Gasoline Direct Injection System Control Unit - Circuit Diagram (4 Of 5)
G10054115Courtesy of MERCEDES-BENZ USA

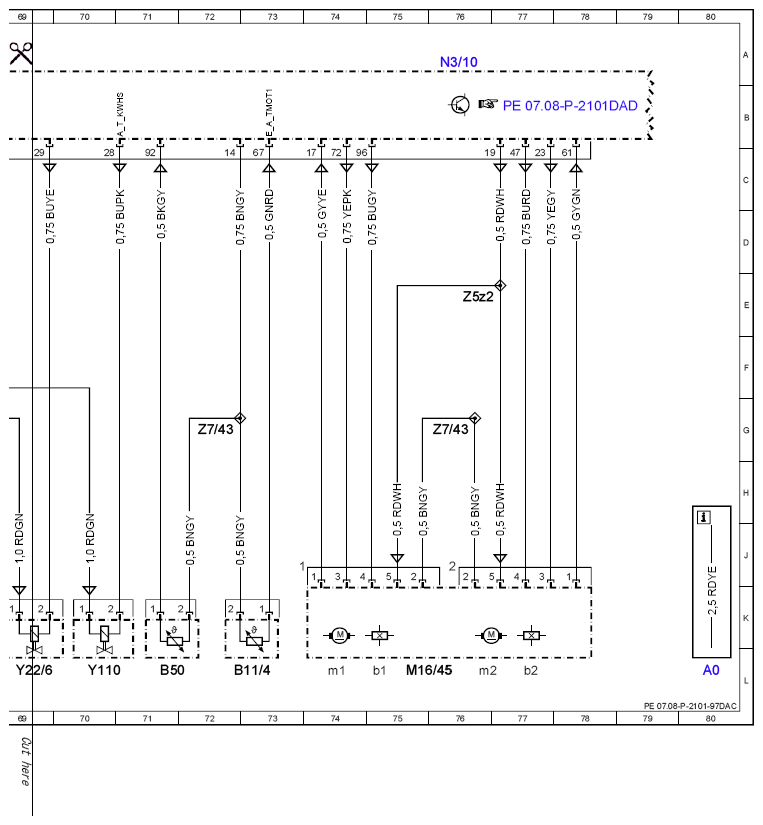

Fig 5: Gasoline Direct Injection System Control Unit - Circuit Diagram (5 Of 5)
G10054116Courtesy of MERCEDES-BENZ USA
