| A0 |
Color code key |
64L |

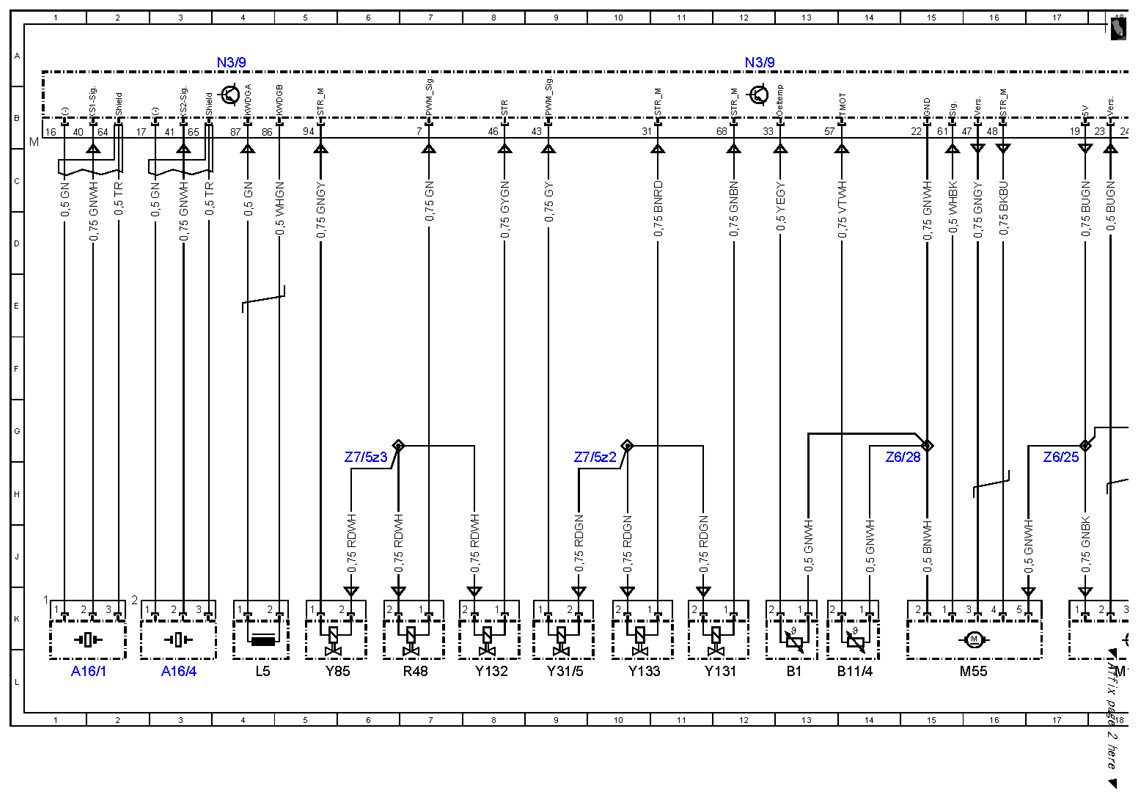

| A16/1 |
Right knock sensor |
1L |
| A16/4 |
Front knock sensor |
3L |
| B1 |
Oil temperature sensor |
13L |
| B11/4 |
Coolant temperature sensor |
14L |
| B17/8 |
Charge air temperature sensor |
32L |
| B19/11 |
Temperature sensor upstream of turbocharger |
29L |
| B2/5 |
Hot film mass air flow sensor |
24L |
| B2/5b1 |
Intake air temperature sensor |
24L |
| B28/5 |
Pressure sensor downstream of air filter |
38L |
| B4/6 |
Rail pressure sensor |
33L |

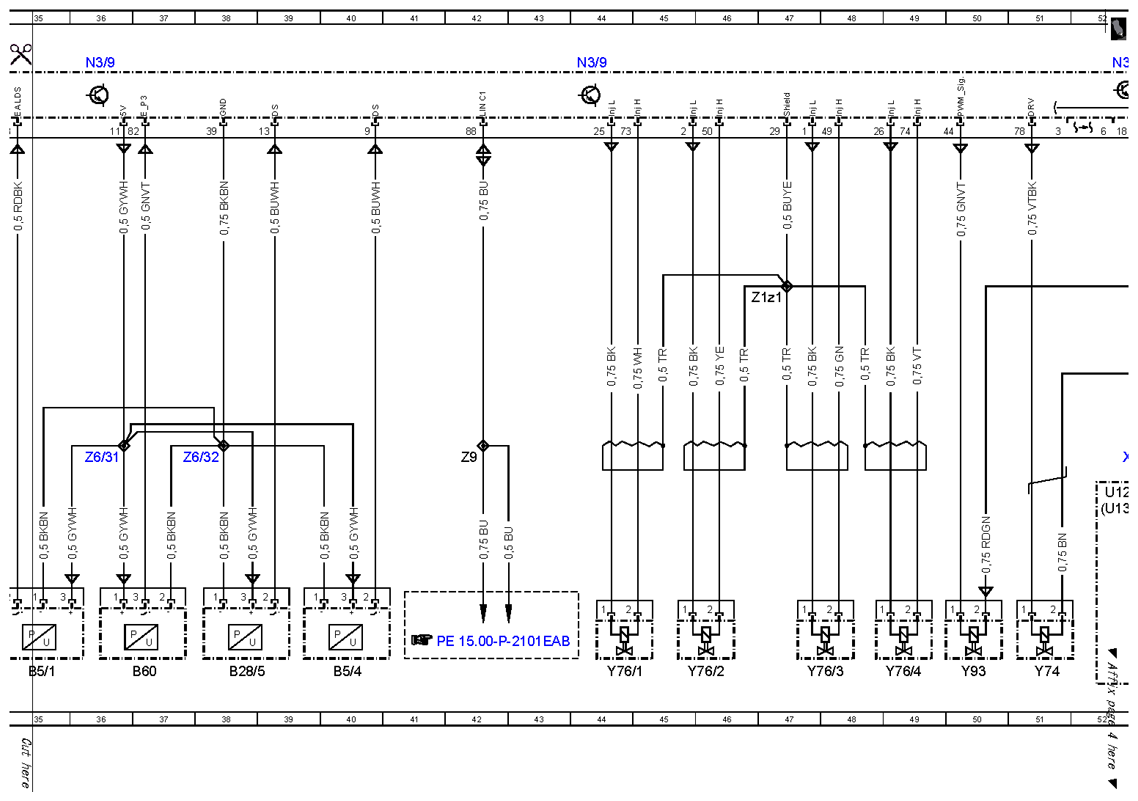

| B5/1 |
Boost pressure sensor |
35L |
| B5/4 |
Low-pressure turbocharger boost pressure sensor |
40L |
| B50 |
Fuel temperature sensor |
31L |
| B6/1 |
Camshaft Hall sensor |
28L |
| B60 |
Exhaust pressure sensor |
37L |
| B76/1 |
Condensation sensor for fuel filter with heating element |
63L |
| L5 |
Crankshaft position sensor |
4L |
| LIN C1 |
Drive train LIN |
42B |

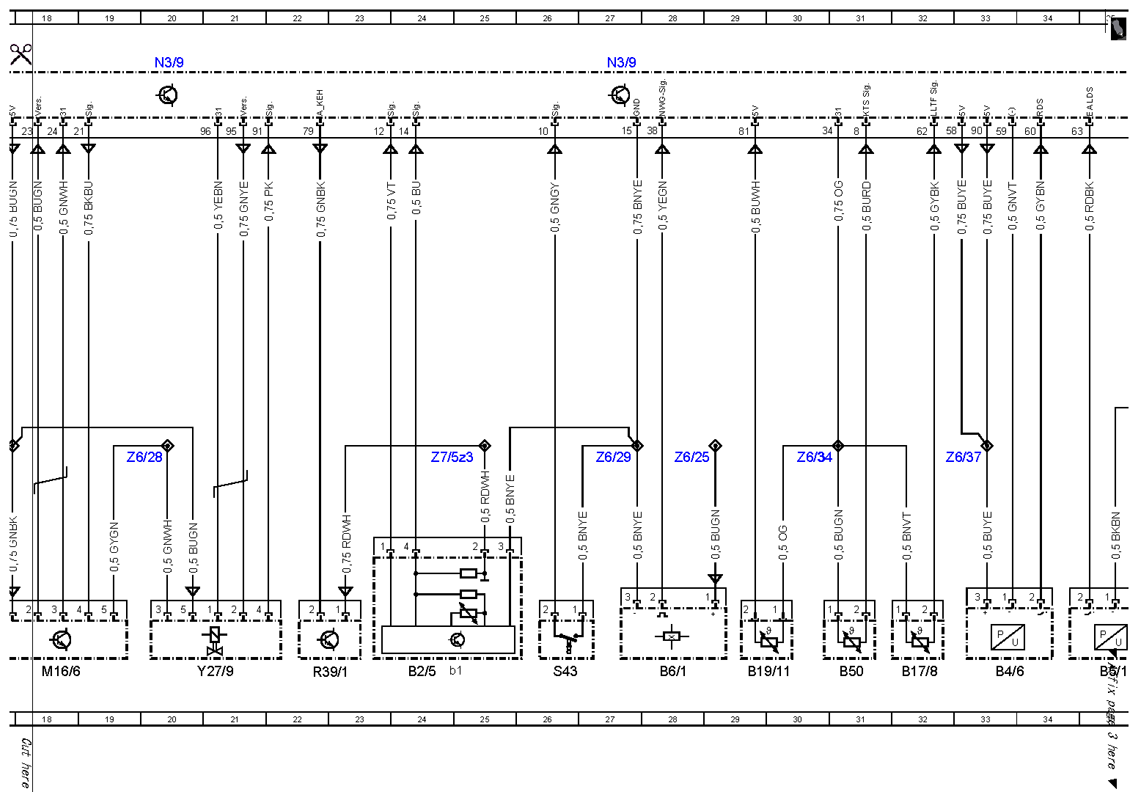

| M16/6 |
Throttle valve actuator |
18L |
| M55 |
Intake port shutoff actuator motor |
16L |

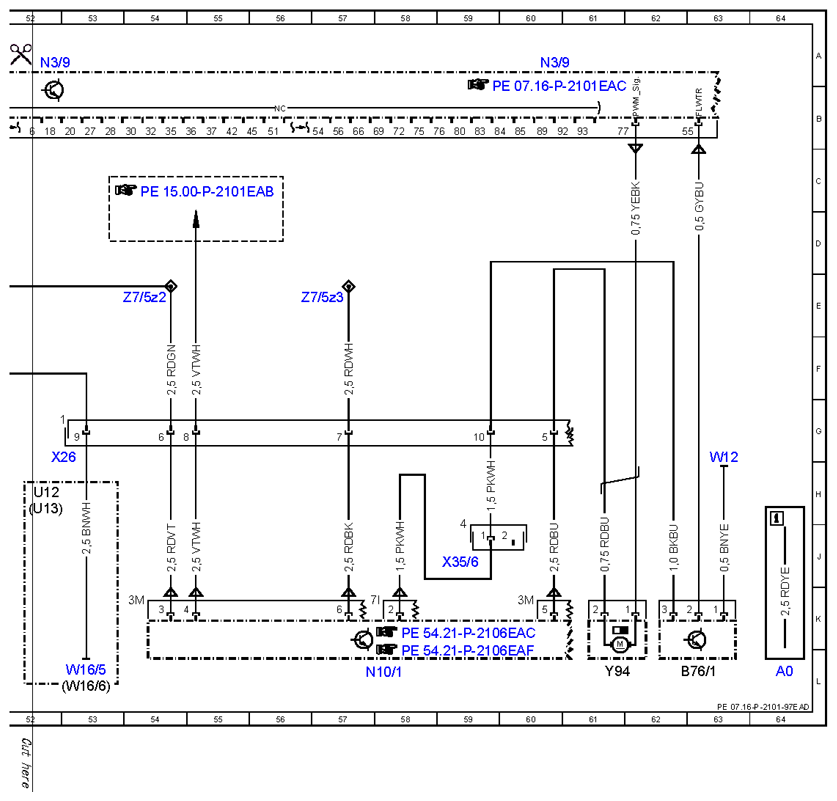

| N10/1 |
Front SAM control unit with fuse and relay module |
57L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
12A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
27A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
52A |
| N3/9 |
CDI control unit |
60A |
| R39/1 |
Vent line heater element |
22L |
| R48 |
Coolant thermostat heating element |
7L |
| S43 |
Oil level check switch |
26L |
| U12 |
Valid for left-hand drive vehicles |
52H |
| U13 |
Valid for right-hand drive vehicles |
52H |
| W12 |
Ground point for fuel filter with heating element |
63H |
| W16/5 |
Left major assembly compartment electronics ground point |
53L |
| W16/6 |
Right major assembly compartment ground point |
53L |
| X26 |
Interior and engine wiring harness electrical connector |
53H |
| X35/6 |
Instrument panel and module box electrical connector |
59J |
| Y131 |
Oil spray nozzle shutoff valve |
12L |
| Y132 |
Charge air bypass flap switchover valve |
8L |
| Y133 |
Coolant pump switchover valve |
10L |
| Y27/9 |
Exhaust gas recirculation actuator |
21L |
| Y31/5 |
Boost pressure control pressure transducer |
9L |
| Y74 |
Pressure regulator valve |
51L |
| Y76/1 |
Cylinder 1 fuel injector |
44L |
| Y76/2 |
Cylinder 2 fuel injector |
46L |
| Y76/3 |
Cylinder 3 fuel injector |
47L |
| Y76/4 |
Cylinder 4 fuel injector |
49L |
| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
5L |
| Y93 |
Boost pressure control flap pressure transducer |
50L |
| Y94 |
Quantity control valve |
61L |
| Z1z1 |
Connector sleeve 1 |
47E |
| Z6/25 |
Sensor voltage supply connector sleeve |
17G |
| Z6/25 |
Sensor voltage supply connector sleeve |
28G |
| Z6/28 |
Sensor ground connector sleeve |
15G |
| Z6/28 |
Sensor ground connector sleeve |
20G |
| Z6/29 |
Sensor ground connector sleeve |
27G |
| Z6/31 |
Sensor voltage supply connector sleeve |
36G |
| Z6/32 |
Sensor ground connector sleeve |
38G |
| Z6/34 |
Sensor ground connector sleeve |
30G |
| Z6/37 |
Sensor voltage supply connector sleeve |
33G |
| Z7/5z2 |
Circuit 87 connector sleeve |
10G |
| Z7/5z2 |
Circuit 87 connector sleeve |
54E |
| Z7/5z3 |
Circuit 87 connector sleeve |
6G |
| Z7/5z3 |
Circuit 87 connector sleeve |
24G |
| Z7/5z3 |
Circuit 87 connector sleeve |
57E |
| Z9 |
Connector sleeve 1 |
42G |
