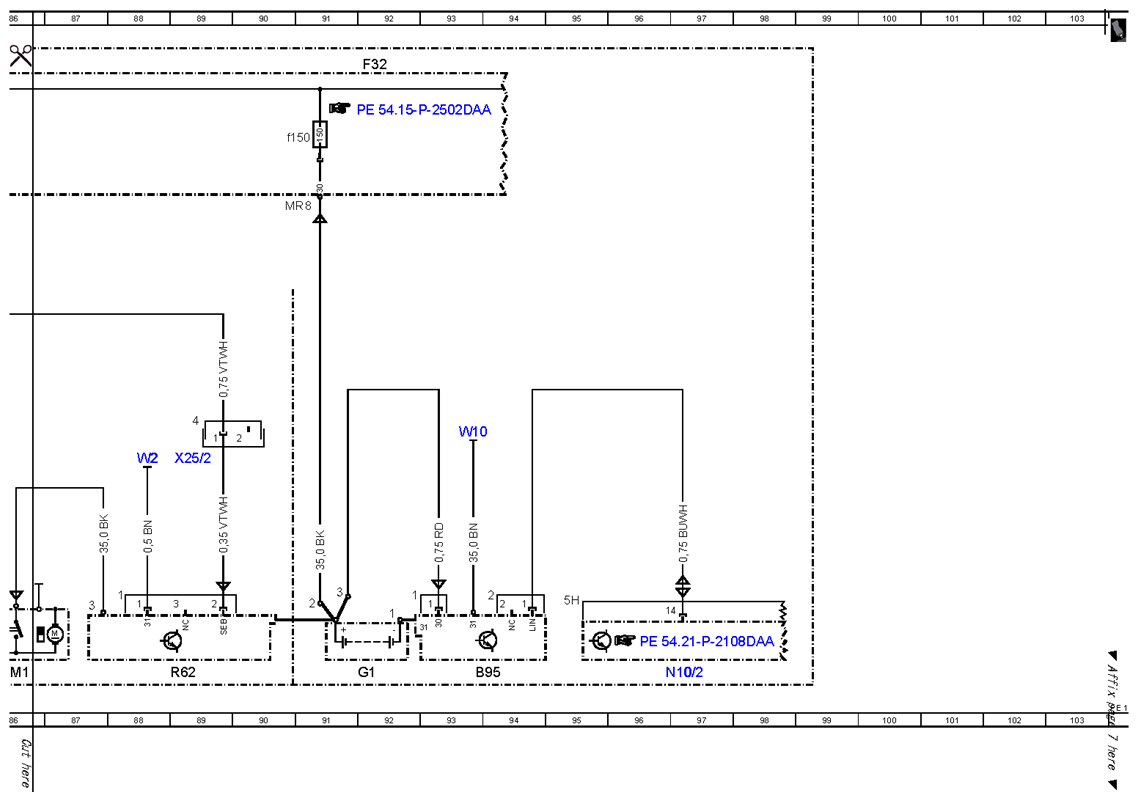

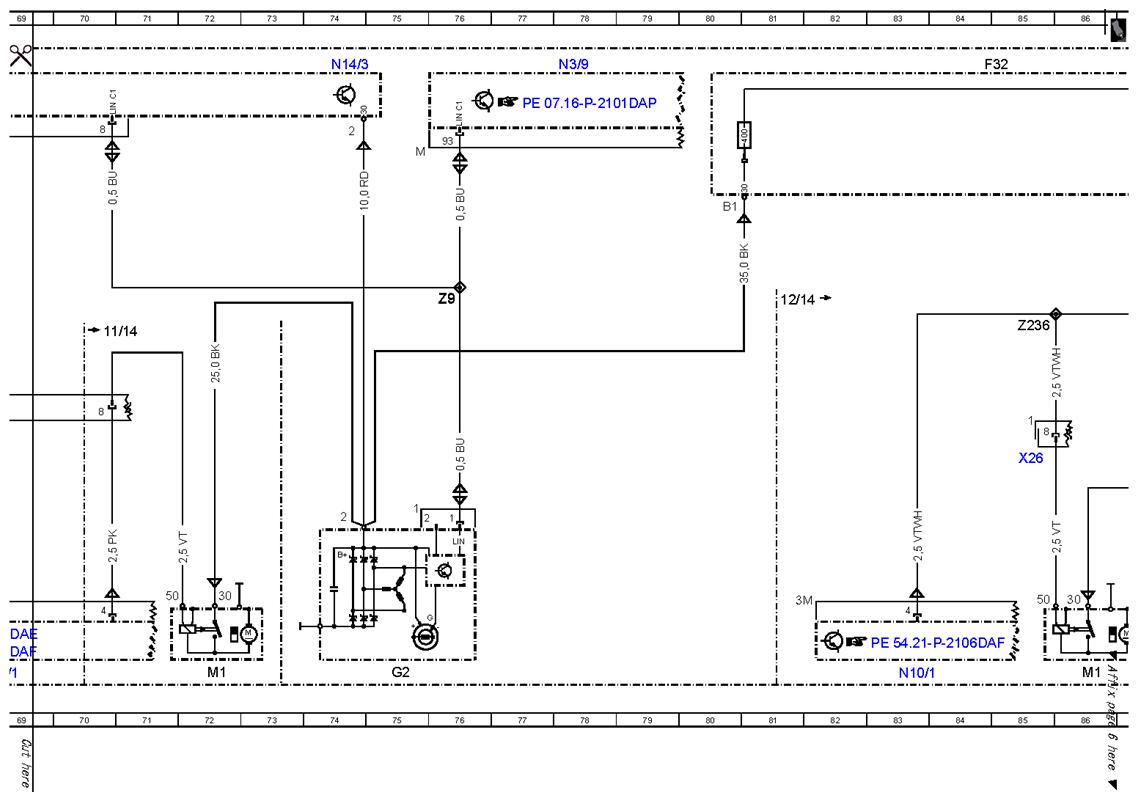

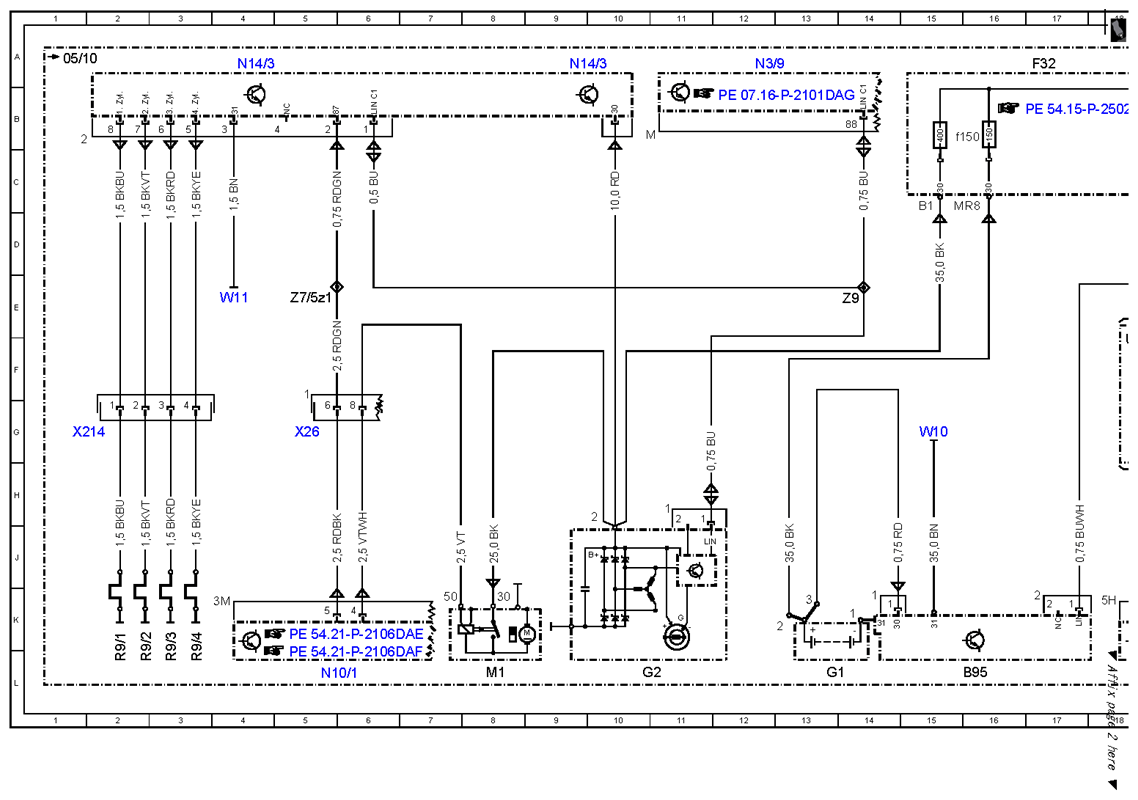

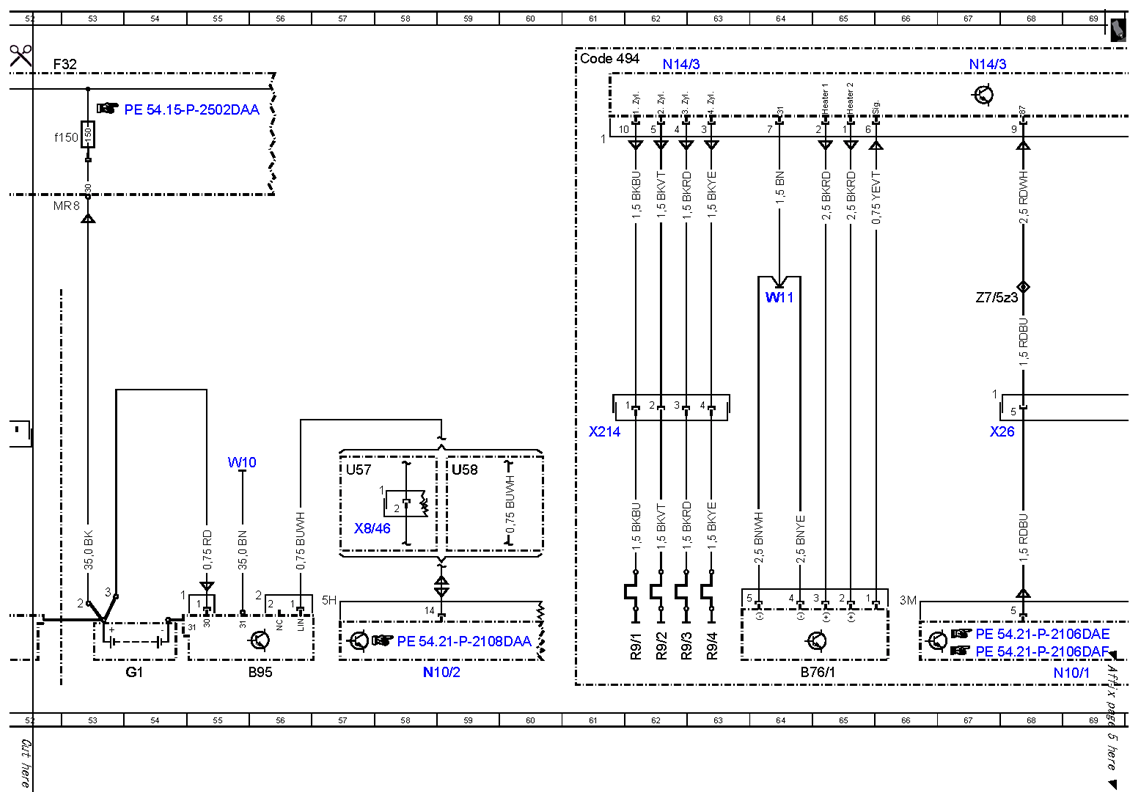

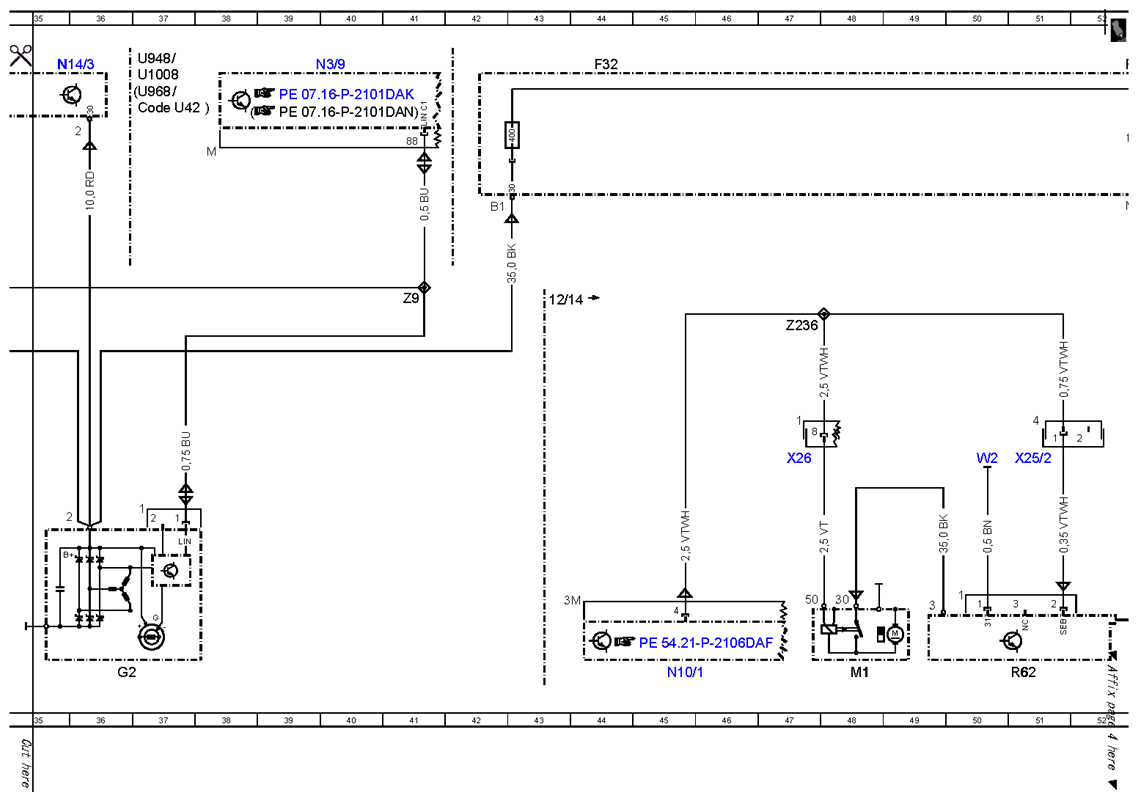

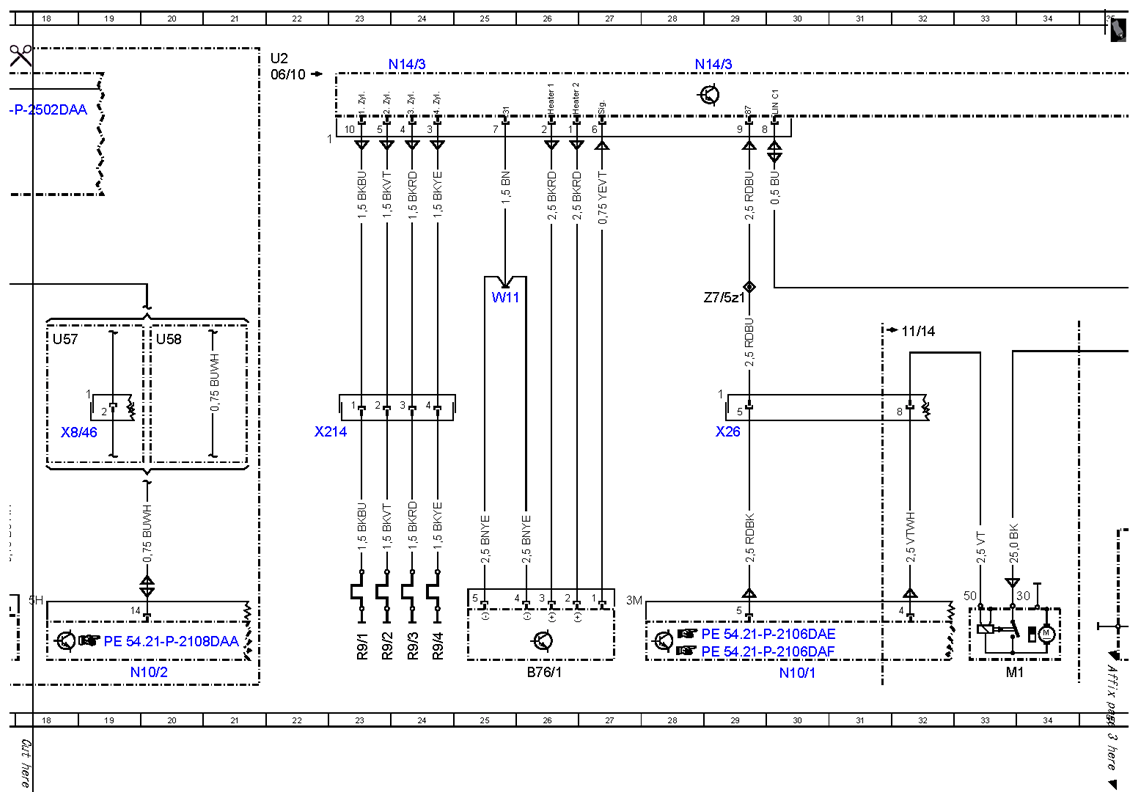

Wiring diagram of starter, alternator, battery - PE15.00-P-2101-97DAB
ENGINE 651 in MODEL 212.0 (except 212.098), 212.2 (except 212.298)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 105L |
| B76/1 | Condensation sensor for fuel filter with heating element | 26L |
| B76/1 | Condensation sensor for fuel filter with heating element | 64L |
| B95 | Battery sensor | 16L |
| B95 | Battery sensor | 56L |
| B95 | Battery sensor | 93L |
| Code 494 | USA version | 61A |
| Code U42 | BlueTEC diesel exhaust treatment | 37B |
| F32 | Front electrical prefuse box | 17A |
| F32 | Front electrical prefuse box | 53A |
| F32 | Front electrical prefuse box | 85A |
| F32 | Front electrical prefuse box | 92A |
| F32 | Front electrical prefuse box | 44A |
| F32f150 | Pyrofuse 150 | 16B |
| F32f150 | Pyrofuse 150 | 53B |
| F32f150 | Pyrofuse 150 | 91B |
| G1 | On-board electrical system battery | 13L |
| G1 | On-board electrical system battery | 54L |
| G1 | On-board electrical system battery | 92L |
| G2 | Alternator | 10L |
| G2 | Alternator | 36L |
| G2 | Alternator | 75L |
| LIN C1 | Drive train LIN | 6B |
| LIN C1 | Drive train LIN | 14B |
| LIN C1 | Drive train LIN | 30B |
| LIN C1 | Drive train LIN | 41B |
| LIN C1 | Drive train LIN | 76B |
| LIN C1 | Drive train LIN | 70B |
| M1 | Starter | 8L |
| M1 | Starter | 33L |
| M1 | Starter | 48L |
| M1 | Starter | 72L |
| M1 | Starter | 86L |
| N10/1 | Front SAM control unit with fuse and relay module | 5L |
| N10/1 | Front SAM control unit with fuse and relay module | 30L |
| N10/1 | Front SAM control unit with fuse and relay module | 45L |
| N10/1 | Front SAM control unit with fuse and relay module | 68L |
| N10/1 | Front SAM control unit with fuse and relay module | 83L |
| N10/2 | Rear SAM control unit with fuse and relay module | 19L |
| N10/2 | Rear SAM control unit with fuse and relay module | 97L |
| N10/2 | Rear SAM control unit with fuse and relay module | 58L |
| N14/3 | Glow output stage | 9A |
| N14/3 | Glow output stage | 4A |
| N14/3 | Glow output stage | 24A |
| N14/3 | Glow output stage | 29A |
| N14/3 | Glow output stage | 35A |
| N14/3 | Glow output stage | 74A |
| N14/3 | Glow output stage | 62A |
| N14/3 | Glow output stage | 67A |
| N3/9 | CDI control unit | 12A |
| N3/9 | CDI control unit | 40A |
| N3/9 | CDI control unit | 78A |
| R62 | Voltage dip limiter | 51L |
| R62 | Voltage dip limiter | 89L |
| R9/1 | Cylinder 1 glow plug | 2L |
| R9/1 | Cylinder 1 glow plug | 23L |
| R9/1 | Cylinder 1 glow plug | 62L |
| R9/2 | Cylinder 2 glow plug | 3L |
| R9/2 | Cylinder 2 glow plug | 24L |
| R9/2 | Cylinder 2 glow plug | 62L |
| R9/3 | Cylinder 3 glow plug | 3L |
| R9/3 | Cylinder 3 glow plug | 24L |
| R9/3 | Cylinder 3 glow plug | 63L |
| R9/4 | Cylinder 4 glow plug | 3L |
| R9/4 | Cylinder 4 glow plug | 24L |
| R9/4 | Cylinder 4 glow plug | 63L |
| U1008 | Not valid for BlueTEC | 37A |
| U2 | Valid for all except USA | 22A |
| U57 | Valid for model 212.2 | 18F |
| U57 | Valid for model 212.2 | 57H |
| U58 | Valid for model 212.0/1 | 20F |
| U58 | Valid for model 212.0/1 | 59H |
| U948 | Valid for diesel engine 651 | 37A |
| U968 | Valid for mild hybrid drive | 37B |
| W10 | Right front battery ground point | 15G |
| W10 | Right front battery ground point | 93G |
| W10 | Right front battery ground point | 55H |
| W11 | Combustion engine ground point | 4E |
| W11 | Combustion engine ground point | 25E |
| W11 | Combustion engine ground point | 64E |
| W2 | Right front ground point at lamp unit | 50H |
| W2 | Right front ground point at lamp unit | 88H |
| X214 | Glow plug electrical connector | 2G |
| X214 | Glow plug electrical connector | 23G |
| X214 | Glow plug electrical connector | 61G |
| X25/2 | Engine compartment/interior electrical connector | 51H |
| X25/2 | Engine compartment/interior electrical connector | 89H |
| X26 | Interior and engine wiring harness electrical connector | 5G |
| X26 | Interior and engine wiring harness electrical connector | 29G |
| X26 | Interior and engine wiring harness electrical connector | 47H |
| X26 | Interior and engine wiring harness electrical connector | 68G |
| X26 | Interior and engine wiring harness electrical connector | 85H |
| X8/46 | Right vehicle interior and tailgate electrical connector | 19G |
| X8/46 | Right vehicle interior and tailgate electrical connector | 57J |
| Z236 | ECO start/stop function circuit 50 connector sleeve | 47E |
| Z236 | ECO start/stop function circuit 50 connector sleeve | 85E |
| Z7/5z1 | Circuit 87 connector sleeve | 5E |
| Z7/5z1 | Circuit 87 connector sleeve | 29E |
| Z7/5z3 | Circuit 87 connector sleeve | 67E |
| Z9 | Connector sleeve 1 | 14E |
| Z9 | Connector sleeve 1 | 41E |
| Z9 | Connector sleeve 1 | 76E |
