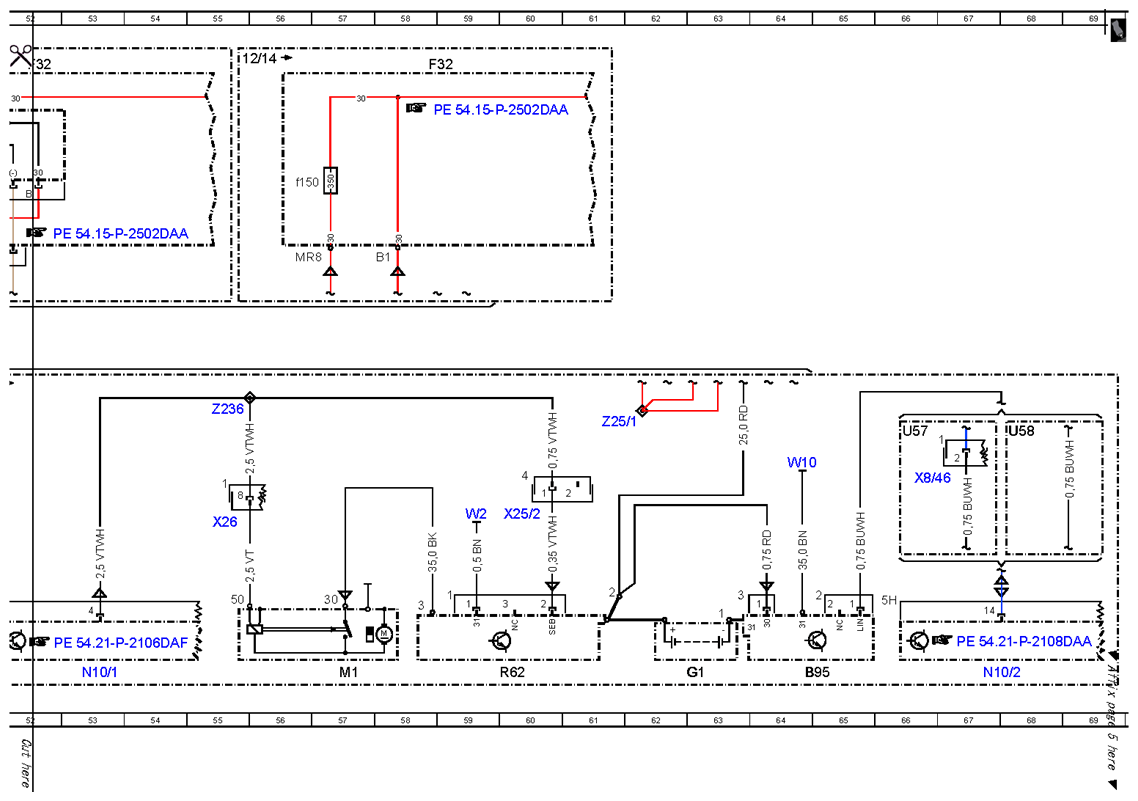

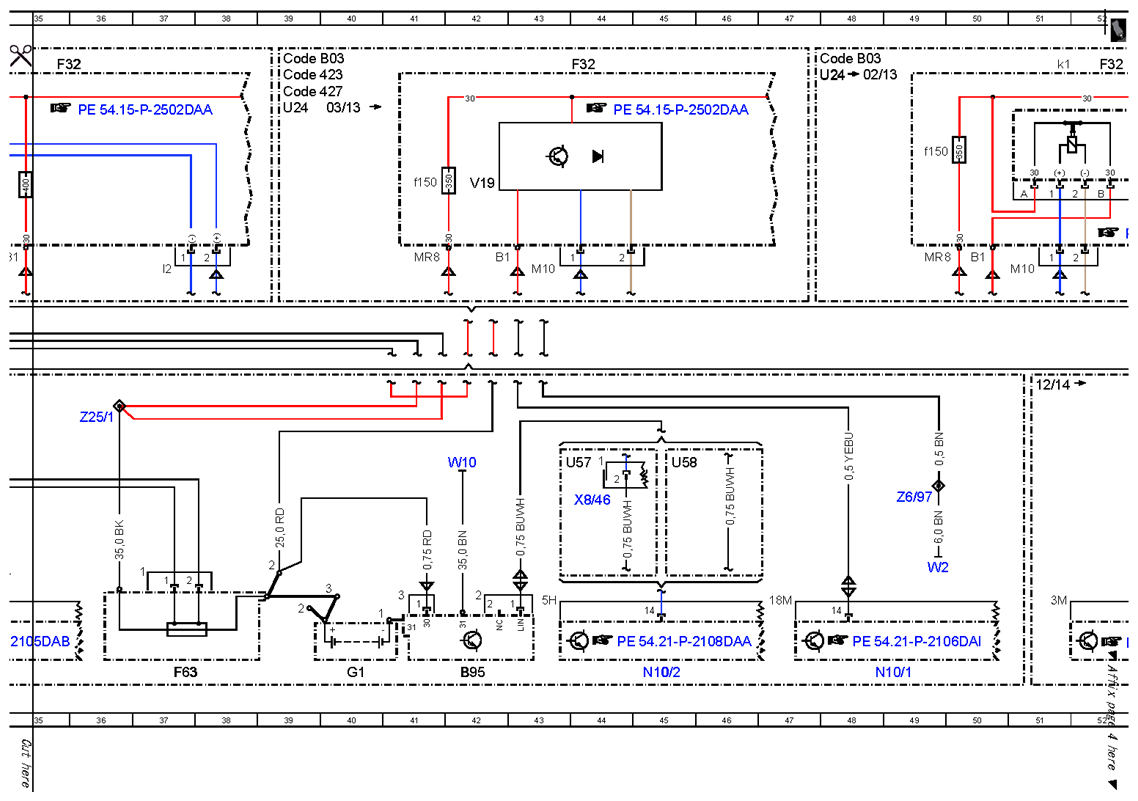

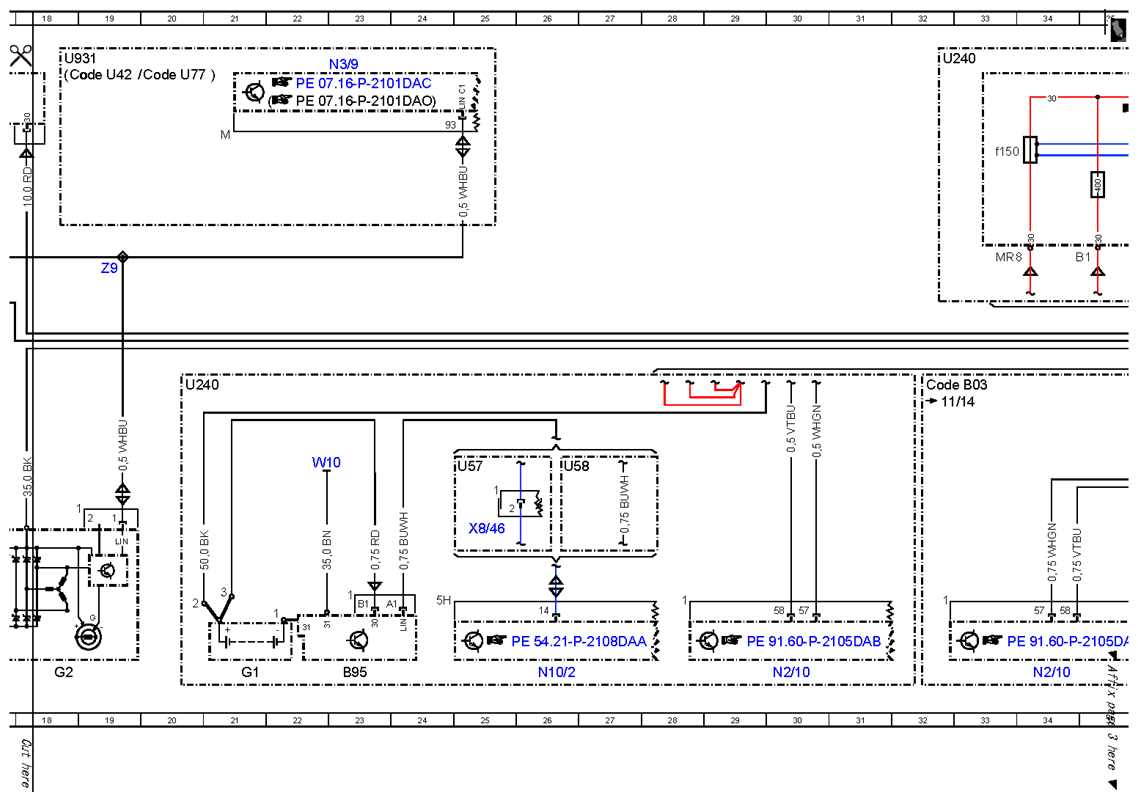

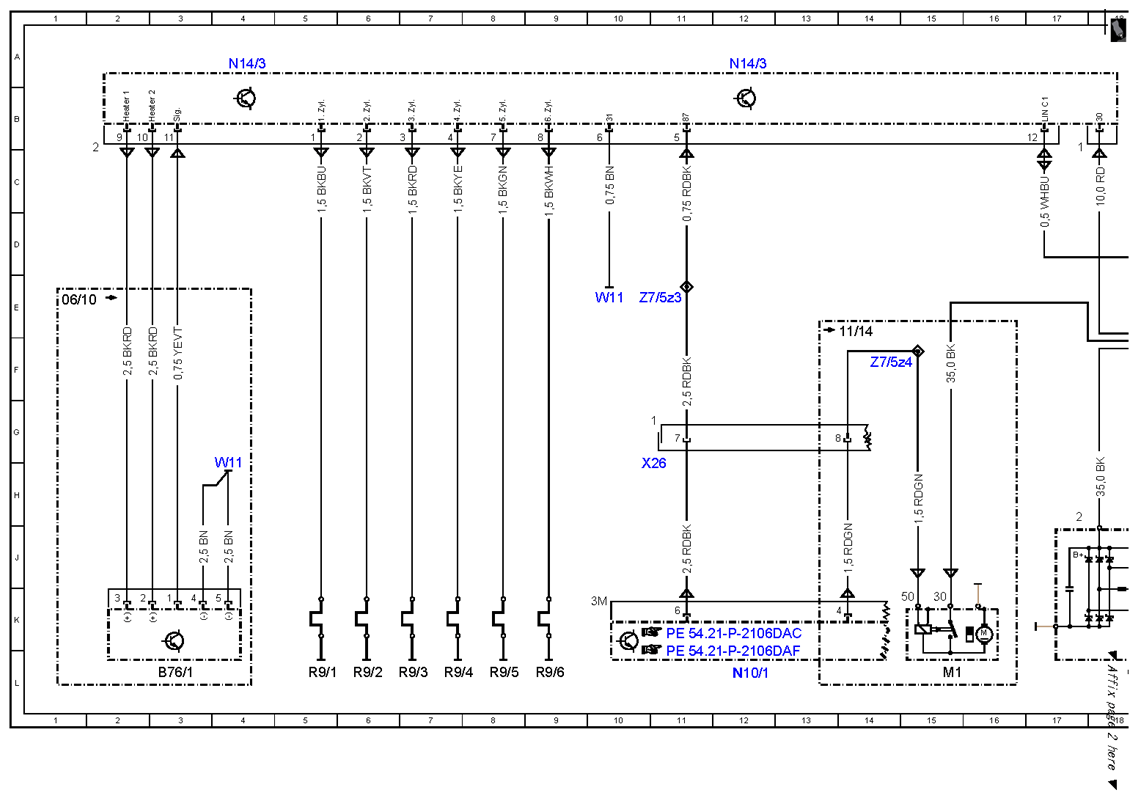

Wiring diagram of starter, alternator, battery - PE15.00-P-2101-97DAA
ENGINE 642 in MODEL 212
| Code: | Designation: | Position: |
|---|---|---|

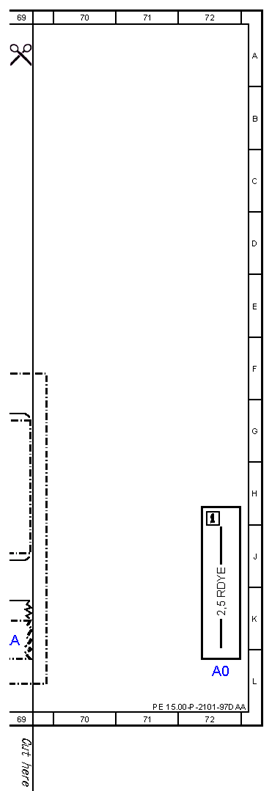

| A0 | Color code key | 72L |
| B76/1 | Condensation sensor for fuel filter with heating element | 3L |
| B95 | Battery sensor | 64L |
| B95 | Battery sensor | 23L |
| B95 | Battery sensor | 42L |
| Code 423 | 5-speed automatic transmission | 39A |
| Code 427 | 7-speed automatic transmission | 39B |
| Code B03 | ECO start/stop function | 39A |
| Code B03 | ECO start/stop function | 47A |
| Code B03 | ECO start/stop function | 32F |
| Code U42 | BlueTEC diesel exhaust treatment | 18A |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 20A |
| F32 | Front electrical prefuse box | 59A |
| F32 | Front electrical prefuse box | 44A |
| F32 | Front electrical prefuse box | 35A |
| F32 | Front electrical prefuse box | 52A |
| F32 f150 | Pyrofuse 150 | 56C |
| F32f150 | Pyrofuse 150 | 41C |
| F32f150 | Pyrofuse 150 | 33C |
| F32f150 | Pyrofuse 150 | 49C |
| F32k1 | Decoupling relay | 51A |
| F63 | Pyrofuse | 37L |
| G1 | On-board electrical system battery | 63L |
| G1 | On-board electrical system battery | 21L |
| G1 | On-board electrical system battery | 40L |
| G2 | Alternator | 18L |
| LIN C1 | Drive train LIN | 17B |
| LIN C1 | Drive train LIN | 25B |
| M1 | Starter | 15L |
| M1 | Starter | 57L |
| N10/1 | Front SAM control unit with fuse and relay module | 12L |
| N10/1 | Front SAM control unit with fuse and relay module | 53L |
| N10/1 | Front SAM control unit with fuse and relay module | 49L |
| N10/2 | Rear SAM control unit with fuse and relay module | 67L |
| N10/2 | Rear SAM control unit with fuse and relay module | 26L |
| N10/2 | Rear SAM control unit with fuse and relay module | 45L |
| N14/3 | Glow output stage | 4A |
| N14/3 | Glow output stage | 12A |
| N2/10 | Supplemental restraint system control unit | 30L |
| N2/10 | Supplemental restraint system control unit | 34L |
| N3/9 | CDI control unit | 23A |
| R62 | Voltage dip limiter | 60L |
| R9/1 | Cylinder 1 glow plug | 5L |
| R9/2 | Cylinder 2 glow plug | 6L |
| R9/3 | Cylinder 3 glow plug | 7L |
| R9/4 | Cylinder 4 glow plug | 7L |
| R9/5 | Cylinder 5 glow plug | 8L |
| R9/6 | Cylinder 6 glow plug | 9L |
| U24 | Valid for manual transmission | 39B |
| U24 | Valid for manual transmission | 47A |
| U240 | Valid for all except ECO start/stop function | 20F |
| U240 | Valid for all except ECO start/stop function | 32A |
| U57 | Valid for model 212.2 | 66G |
| U57 | Valid for model 212.2 | 25H |
| U57 | Valid for model 212.2 | 43H |
| U58 | Valid for model 212.0/1 | 68G |
| U58 | Valid for model 212.0/1 | 26H |
| U58 | Valid for model 212.0/1 | 45H |
| U931 | Not valid for diesel engine 642 BlueTEC | 18A |
| V19 | ECO start/stop function diode | 42C |
| W10 | Right front battery ground point | 64H |
| W10 | Right front battery ground point | 22H |
| W10 | Right front battery ground point | 42H |
| W11 | Combustion engine ground point | 10E |
| W11 | Combustion engine ground point | 4H |
| W2 | Right front ground point at lamp unit | 59H |
| W2 | Right front ground point at lamp unit | 49J |
| X25/2 | Engine compartment/interior electrical connector | 60H |
| X26 | Interior and engine wiring harness electrical connector | 11H |
| X26 | Interior and engine wiring harness electrical connector | 55J |
| X8/46 | Right vehicle interior and tailgate electrical connector | 66H |
| X8/46 | Right vehicle interior and tailgate electrical connector | 25J |
| X8/46 | Right vehicle interior and tailgate electrical connector | 44H |
| Z236 | ECO start/stop function circuit 50 connector sleeve | 55G |
| Z25/1 | Starter circuit 30 terminal block connector sleeve | 36G |
| Z25/1 | Starter circuit 30 terminal block connector sleeve | 61G |
| Z6/97 | Right lamp unit circuit 31 connector sleeve | 49H |
| Z7/5z3 | Circuit 87 connector sleeve | 11E |
| Z7/5z4 | Circuit 87 connector sleeve | 14F |
| Z9 | Connector sleeve 1 | 19D |
